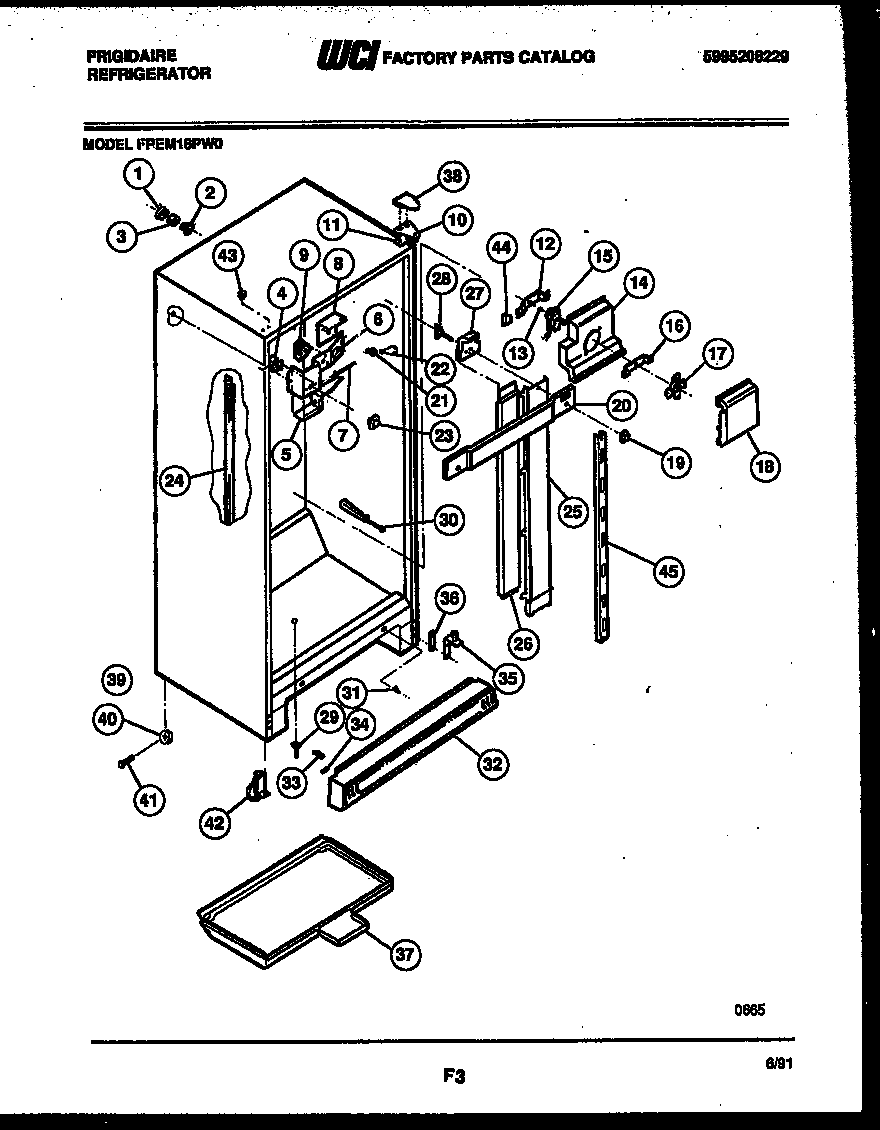

FPEM18PW0 03 – CABINET PARTS

FPEM18PW0 03 – CABINET PARTS

Written by

in

FPEM18PW0 03 – CABINET PARTS

Products

PositionProduct
*42053TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*42053PLUG, BUTTON, CABINET LINER (NI)
*42053WCI 5308016568
1WCI 5303001286
2WCI 5303001287
3TUBE-RUBBER
4BWCI 5303001260
4AWCI 5300169478
4WCI 5308000068
5WCI 5308008706
6WCI 08008707
6AWCI 08009649
7WCI 5300170287
8WCI 5308008709
9215846604 Frigidaire Refrigerator Defrost Timer
9B5304455649 Frigidaire Refrigerator Screw
9ASCREW-MOUNTING (2) (NON-ILLUSTRATED)
10A241710601 Frigidaire Refrigerator Screw
10BRACKET-UPPER HINGE
11SHIM – UPPER HINGE
12BRACKET-MOTOR MTG, REAR
13G187559 Frigidaire Refrigerator Bushing
14WCI 08008710
155300158289 Frigidaire Evaporator Fan Motor
16WCI 5303205118
175308000010 Frigidaire Refrigerator Evaporator Fan Blade
18WCI 5308008711
19WCI 08008712
20AWCI 3018745
20BWCI 3018746
20WCI 08008713
21218906802 Frigidaire Light Lamp Socket
22316538904 Frigidaire Oven Lamp Light
23WCI 5308008716
24CHANNEL-SHELF MTG (2)
25WCI 08008718
26INSUL-LWR DUCT
27WCI 3015057
28AWCI 5300171508
28WCI 08008721
29WCI 5300164843
30WCI 5317000101
30A5304455852 Frigidaire Refrigerator Screw
315303289051 Frigidaire Refrigerator Light Switch
32WCI 5303016726
33CLIP-GRILLE
34WCI 5300154397
35AWASHER, .34 X .62 X .05, NYLON
35HINGE-BOTTOM
35CWCI 5303001273
35BSCREW-HINGE MTG (2) (NON-ILLUSTRATED)
36AWCI 5308000013
36SHIM-BTM HINGE (3)
36BWCI 5300077210
37WCI 5300174360
38COVER-UPPER HINGE, WHITE
39Nut,push-on
40WCI 5303001030
41WCI 5308000266
42ROLLER-FRONT (2)
42ASCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
43PLUG-BUTTON, WHITE
44WCI 5308000107
44A5304455651 Frigidaire Refrigerator Screw
45WCI 3018720
