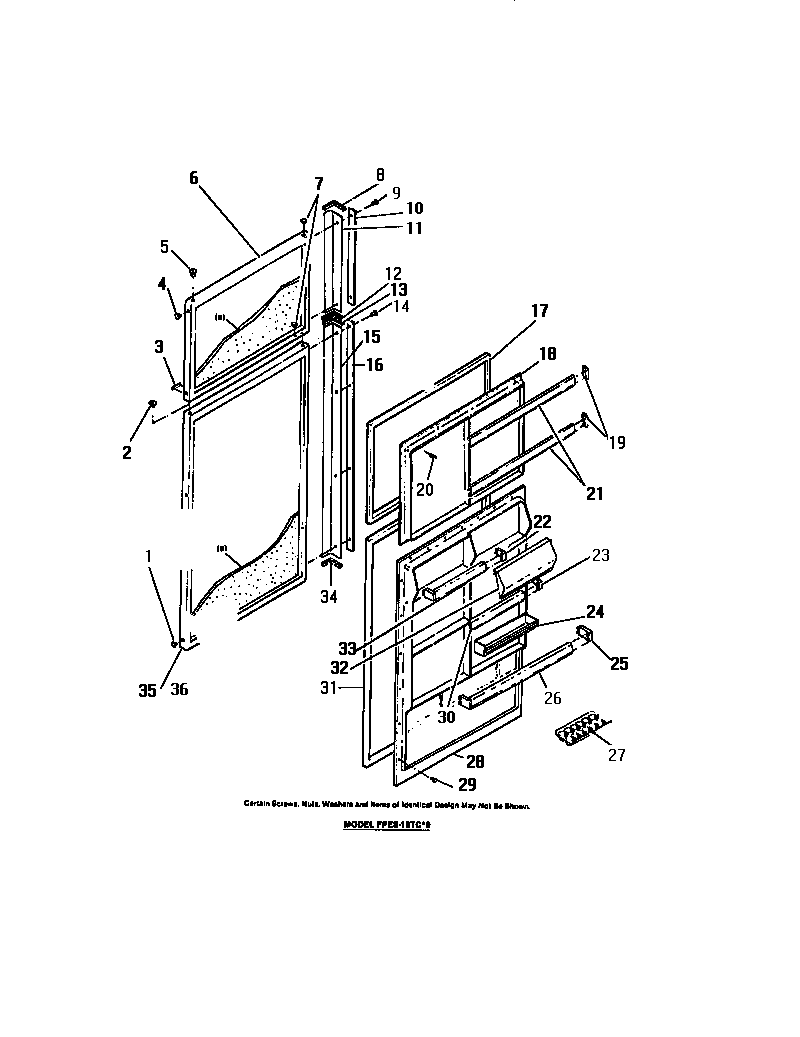

FPES18TCH0 05 – FOOD & FREEZER DOORS

Products

Position	Product
3	WCI 8009843
4	PLUG-HANDLE, WHEAT
5	HINGE BEARING (8)
6	WCI 8009932
7	PLUG-HINGE, WHEAT
10	WCI 8010232
11	HANDLE ASSY W/ CAP & TRIM
13	END CAP-TOP (2)
14	SCREW-HANDLE MOUNTING (4)
15	HANDLE ASSY W/ CAP & TRIM
16	WCI 8010233
17	WCI 8009734
18	INNER PANEL-FREEZER
22	SUPPORT-RACK LS (NON-ILLUSTRATED)
22A	SUPPORT-RACK RS
24	UTILITY BIN
25	SUPPORT-RACK RS (2)
25A	SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
26	DOOR RACK-BOTTOM
27	EGG TRAY
28	INNER PANEL-REFR
29	SCREW-PANEL MOUNTING (56)
30	DOOR RACK-CENTER
31	WCI 8009735
32	DAIRY DOOR
33	DOOR RACK-TOP
34	END CAP-BOTTOM (2)
35	WCI 8009929
36	KIT DR CONV, WHEAT (NI)
