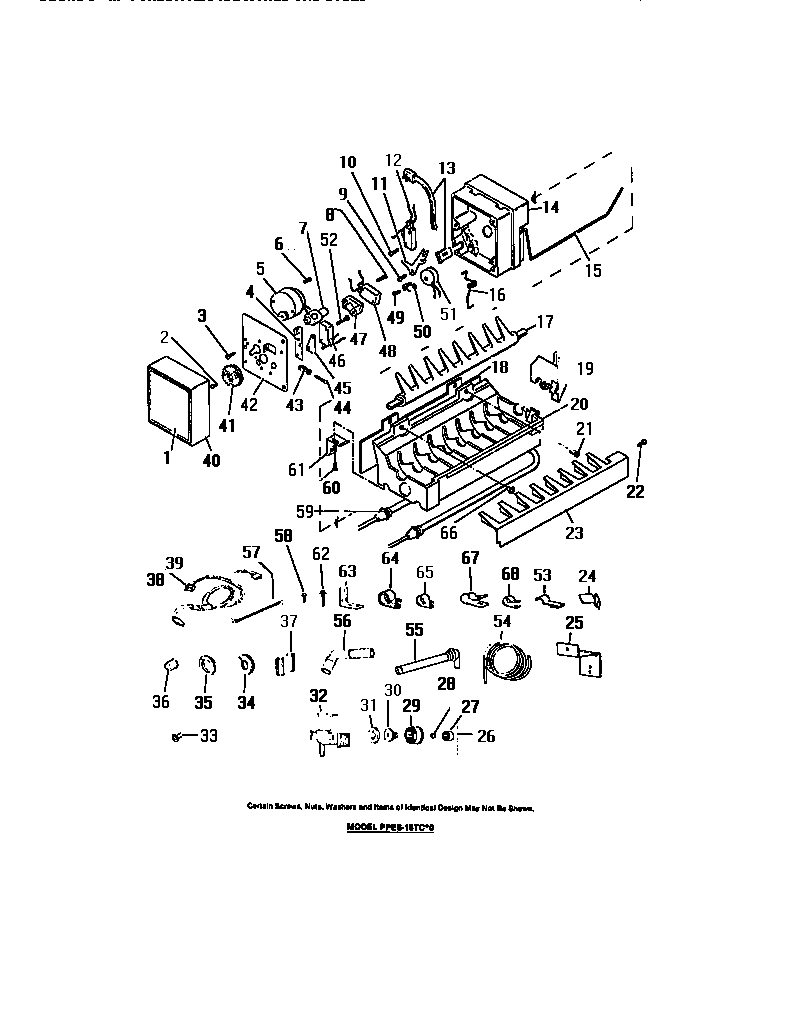

FPES18TCH0 07 – IK-4 AUTOMATIC ICE MAKER

Products

Position	Product
1	WCI 8005251
2	WCI 8001182
3	SCREW (3)
4	PLATE-VALVE SW.
5	WCI 8001244
6	WCI 8001156
7	WCI 8001247
8	WCI 8001148
9	WCI 8001255
10	SCREW 4-24 X 3/4
11	ARM-LEVER
14	WCI 8001235
15	ARM-SHUT OFF
16	SPRING-SHUT OFF
17	WCI 8001253
18	WCI 8000236
19	BEARING & INLET
20	WCI 8001254
21	WCI 8005288
23	STRIPPER-ICE
24	WCI 8000201
25	BRACKET-WATER VALVE
26	WCI 8000205
27	WCI 114627
28	WCI 114628
29	WCI 1121985
30	WCI 1121980
31	WCI 8001143
32	VALVE-WATER
33	WCI 8010335
34	WCI 8000241
35	WCI 8000240
36	NUT 7/16-20 NYLON
37	PLUG-ADAPTER
38	WCI 8014553
39	WCI 8950138
40	WCI 8000214
41	WCI 8001248
42	WCI 8001239
43	WCI 8001251
45	WCI 8001241
47	SPACER-HOLD. SW.
48	SWITCH-SHUT OFF
49	SCREW 8-32 X 1
50	WCI 8001236
51	WCI 8001250
52	SCREW 4-40 X 3/4 (2)
53	CLIP-TUBE
54	WCI 8010366
55	TUBE-INLET
56	TUBE-FILLER
57	SEALING STRIP-BULK
58	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
59	WCI 8001243
60	SCREW
61	WCI 8001246
62	WCI 8002728
63	CLAMP-CABLE (3)
64	WCI 8000133
65	WCI 8000221
66	EYELET (2)
67	WCI 8009561
68	WCI 8000250
