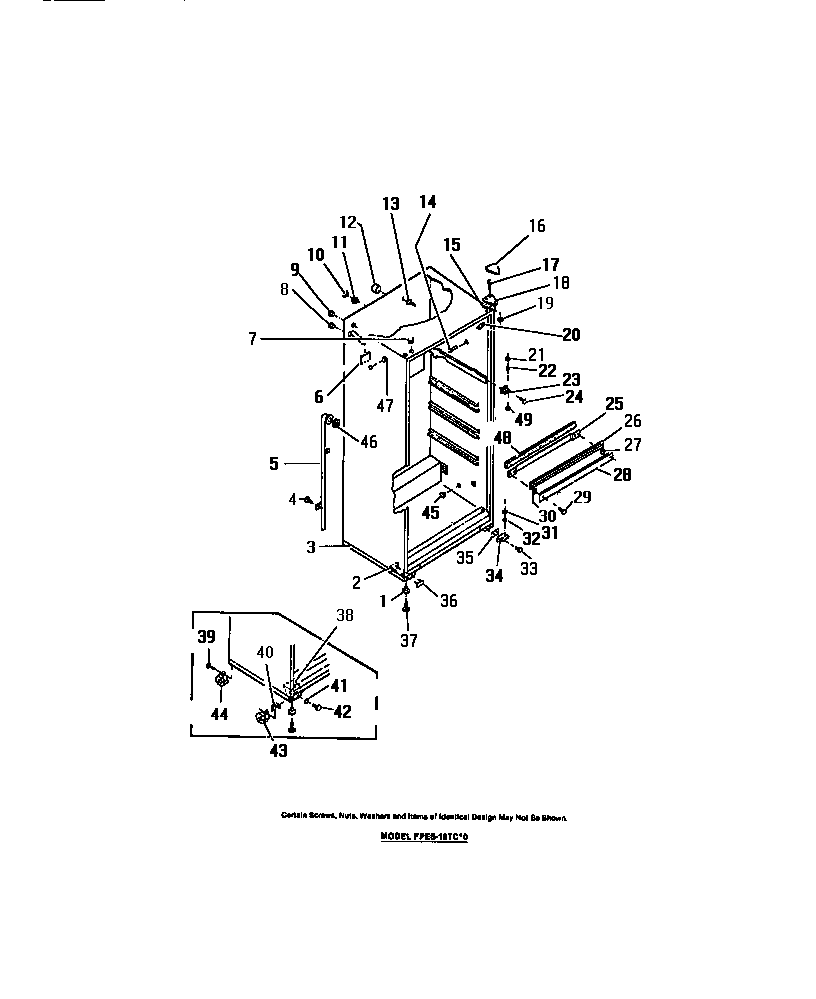

FPES18TCL0 02 – CABINET

Products

Position	Product
1	WCI 8003584
2	PLATE-TAPPING (2)
3	WCI 8010092
4	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
5	WCI 8010012
6	WCI 8000082
7	WCI 8007129
8	WCI 8000014
9	WCI 8000040
10	WCI 8006971
11	WCI 8006970
12	WCI 8000004
13	WCI 8000097
14A	WCI 8002747
14	WCI 8009759
15	WCI 8012829
16	COVER, HNG, ALMD
17	SCREW-HINGE MOUNTING (2)
18	WCI 8012843
20	WCI 8010018
22	WCI 8000184
23	WCI 8000757
25	WCI 8010008
26	WCI 8000058
27	WCI 8003607
28	WCI 8010029
29	SCREW-HINGE/MULLION (4)
31	WASHER-1/4 NYLON (3)
32	PIN-LOWER HINGE
33	SCREW-HINGE MOUNTING
34	BRACKET-HNG
35	SHIM-LOWER HINGE
36	WCI 8003585
37	SCREWS LEVELING (4)
38	WCI 8013678
39	WCI 8009762
40	WCI 8009790
41	WCI 8011326
42	WCI 8009761
43	WCI 8009760
44	WCI 8009773
45	PLUG-REFRIGERATOR LINER (2)
46	WCI 8009755
47	BTN-PLUG (5)
48	WCI 8009638
49	WASHER-5/16 NYLON
