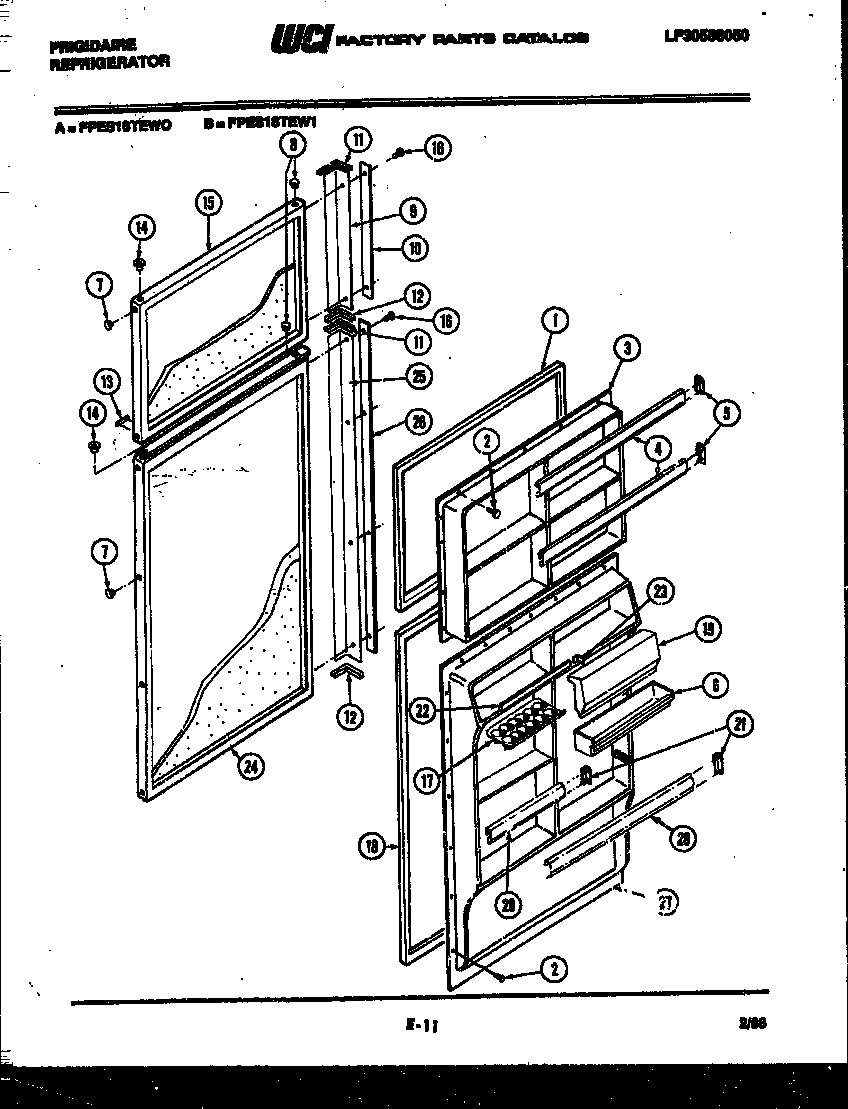

FPES18TEF0 02 – DOOR PARTS

Products

Position	Product
*71075	KIT DR CONV, COFE (NI)
*71073	WCI 5401984
*71073	WCI 5401988
*71072	WCI 5401987
*71072	WCI 5418397
1	WCI 8009734
2	SCREW-PANEL MOUNTING (56)
3	INNER PANEL-FREEZER
6	UTILITY BIN
7	BTN, PLUG, COFE
8	BTN, PLUG, COFE
9	HANDLE ASSY W/ CAP & TRIM
10	WCI 8010232
11	END CAP-TOP (2)
12	END CAP-BOTTOM (2)
13	WCI 8009843
14	HINGE BEARING (8)
15	WCI 8010022
16	SCREW-HANDLE MOUNTING (4)
17	EGG TRAY
18	WCI 8015544
19	DAIRY DOOR
20	DOOR RACK-CENTER
21	SUPPORT-RACK RS (2)
21A	SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
22	DOOR RACK-TOP
23	SUPPORT-RACK LS (NON-ILLUSTRATED)
23A	SUPPORT-RACK RS
24	WCI 8010020
25	HANDLE ASSY W/ CAP & TRIM
26	WCI 8010233
27	INNER PANEL-REFR
28	DOOR RACK-BOTTOM
