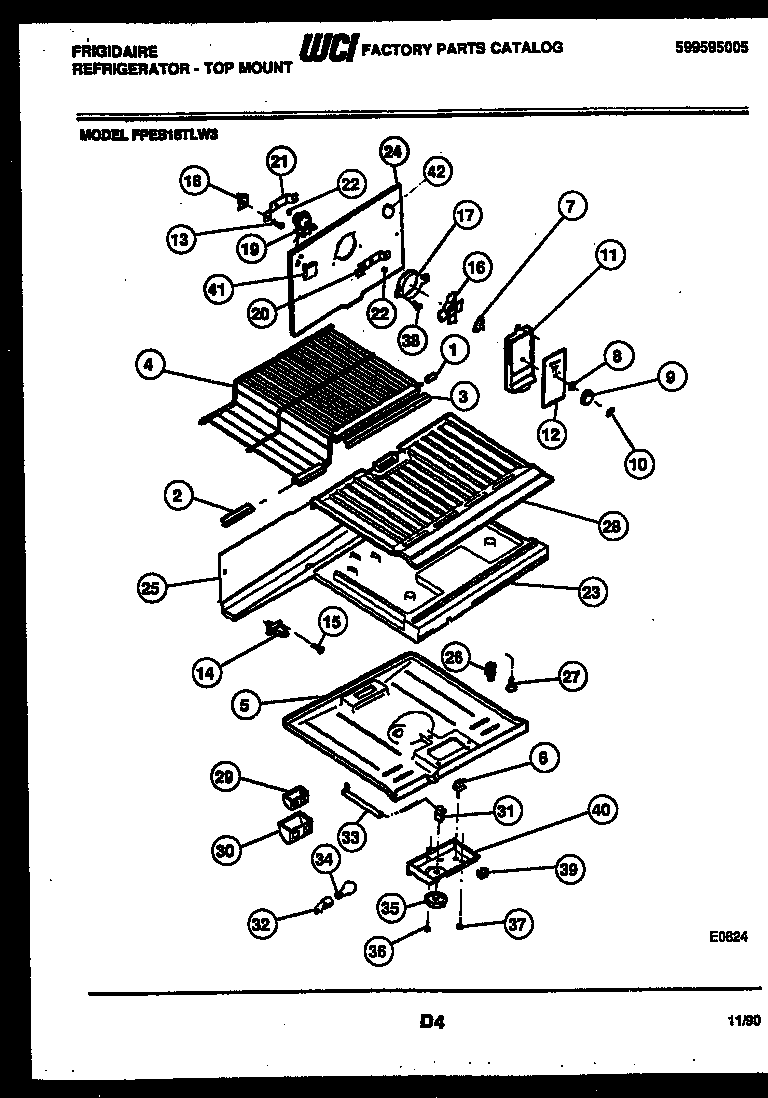

FPES18TLA3 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1END CAP-SHELF,PROTECTOR
2TRIM-SHELF-FREEZER
3TRIM-SHELF-FREEZER
4SHELF, FREEZER, STEP
5TOP – REFRIGERATOR
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7DAMPER-FAN COVER
8Nut,push-on
9KNOB, DAMPER
10LABEL, KNOB
11FAN COVER
12WCI 08009924
135304455651 Frigidaire Refrigerator Screw
14WCI 5308000056
15WCI 5303001361
165308000010 Frigidaire Refrigerator Evaporator Fan Blade
17RING-FAN ORIFICE
18WCI 5308000107
195300158289 Frigidaire Evaporator Fan Motor
20AWCI 5303205118
20WCI 5303001226
21BRACKET-MOTOR MTG, REAR
22G187559 Frigidaire Refrigerator Bushing
23A3205266 Frigidaire Refrigerator Edge Protector
23DIVIDER-FOAM
23BWCI 3018900
24WCI 5308009771
24ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
25WCI 5303001470
265309918806 Frigidaire Refrigerator Light Switch Door
27WCI 5303001380
28WCI 5303211427
29WCI 3204206
30COVER – AIR DEFLECTOR
31WCI 5303018894
32218906802 Frigidaire Light Lamp Socket
33WCI 3018891
34316538904 Frigidaire Oven Lamp Light
35KNOB, TEMP CONTROL
36WCI 5303001260
375304455649 Frigidaire Refrigerator Screw
38218843801 Frigidaire Refrigerator Screw
39WCI 5303018896
40CONTROL BOX
40A5304455650 Frigidaire Refrigerator Screw
41BUTTON – DECORATIVE PLUG
425303208309 Frigidaire Refrigerator Plug Hole
