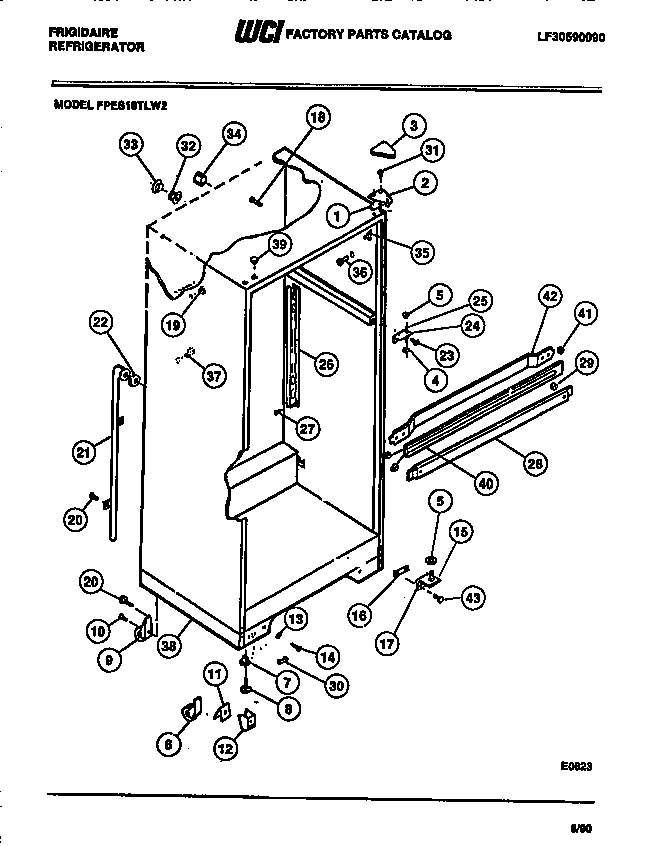

FPES18TLF2 03 – CABINET

Products

PositionProduct
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3CWCI 5303001666
4WCI 5308000186
5WASHER, .34 X .62 X .05, NYLON
6WCI 5308009760
7WCI 5308003584
8SCREW-LEVELING (4)
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11WCI 5308009790
12SUPPORT, BASE (2)
13WCI 5308011326
14BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
155303001321 Frigidaire Refrigerator Lower Hinge Pin
16SHIM-LOWER HINGE
17HINGE BRACKET – BOTTOM
18SUPPORT-COIL COVER
19APLUG, BUTTON, CABINET LINER (NI)
205304455651 Frigidaire Refrigerator Screw
21WCI 5303210377
22WCI 5303207353
23WCI 5308012258
24BRACKET-CTR HINGE
25WCI 5308000184
26CHANNEL, RH & LH
275304455852 Frigidaire Refrigerator Screw
28CWCI 5303200369
29WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
30COVER-HOLE, LOWER HINGE
32WCI 5303001286
33WCI 5303001287
34TUBE-RUBBER
35CWCI 5303202339
365304509705 Frigidaire Refrigerator Grommet
375304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38CABINET BASE
39CPLUG, COFFEE
40WCI 5308002662
41SPACER-MULLION MTG, STEEL
42WCI 5308010008
43241710601 Frigidaire Refrigerator Screw
43ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
