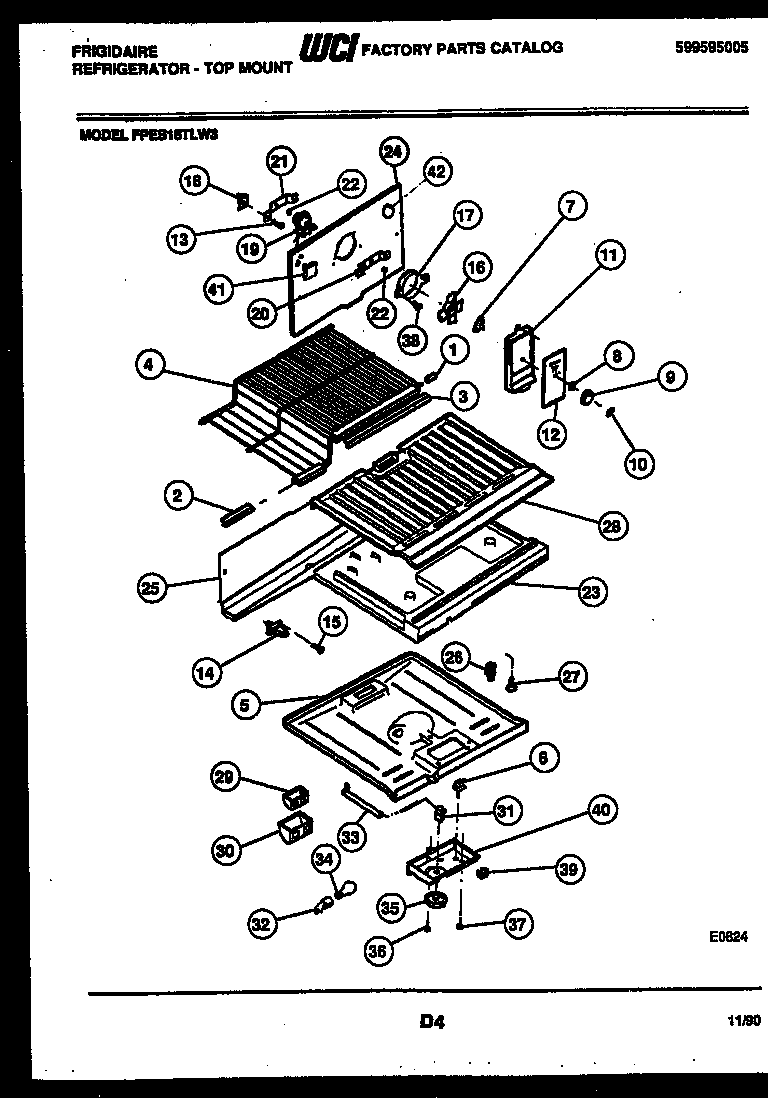

FPES18TLF3 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	END CAP-SHELF,PROTECTOR
2	TRIM-SHELF-FREEZER
3	TRIM-SHELF-FREEZER
4	SHELF, FREEZER, STEP
5	TOP – REFRIGERATOR
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7	DAMPER-FAN COVER
8	Nut,push-on
9	KNOB, DAMPER
10	LABEL, KNOB
11	FAN COVER
12	WCI 08009924
13	5304455651 Frigidaire Refrigerator Screw
14	WCI 5308000056
15	WCI 5303001361
16	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
17	RING-FAN ORIFICE
18	WCI 5308000107
19	5300158289 Frigidaire Evaporator Fan Motor
20A	WCI 5303205118
20	WCI 5303001226
21	BRACKET-MOTOR MTG, REAR
22	G187559 Frigidaire Refrigerator Bushing
23A	3205266 Frigidaire Refrigerator Edge Protector
23	DIVIDER-FOAM
23B	WCI 3018900
24	WCI 5308009771
24A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
25	WCI 5303001470
26	5309918806 Frigidaire Refrigerator Light Switch Door
27	WCI 5303001380
28	WCI 5303211427
29	WCI 3204206
30	COVER – AIR DEFLECTOR
31	WCI 5303018894
32	218906802 Frigidaire Light Lamp Socket
33	WCI 3018891
34	316538904 Frigidaire Oven Lamp Light
35	KNOB, TEMP CONTROL
36	WCI 5303001260
37	5304455649 Frigidaire Refrigerator Screw
38	218843801 Frigidaire Refrigerator Screw
39	WCI 5303018896
40	CONTROL BOX
40A	5304455650 Frigidaire Refrigerator Screw
41	BUTTON – DECORATIVE PLUG
42	5303208309 Frigidaire Refrigerator Plug Hole
