FPES18TLH0 04 – SHELVES AND SUPPORTS

FPES18TLH0 04 – SHELVES AND SUPPORTS

Written by

in

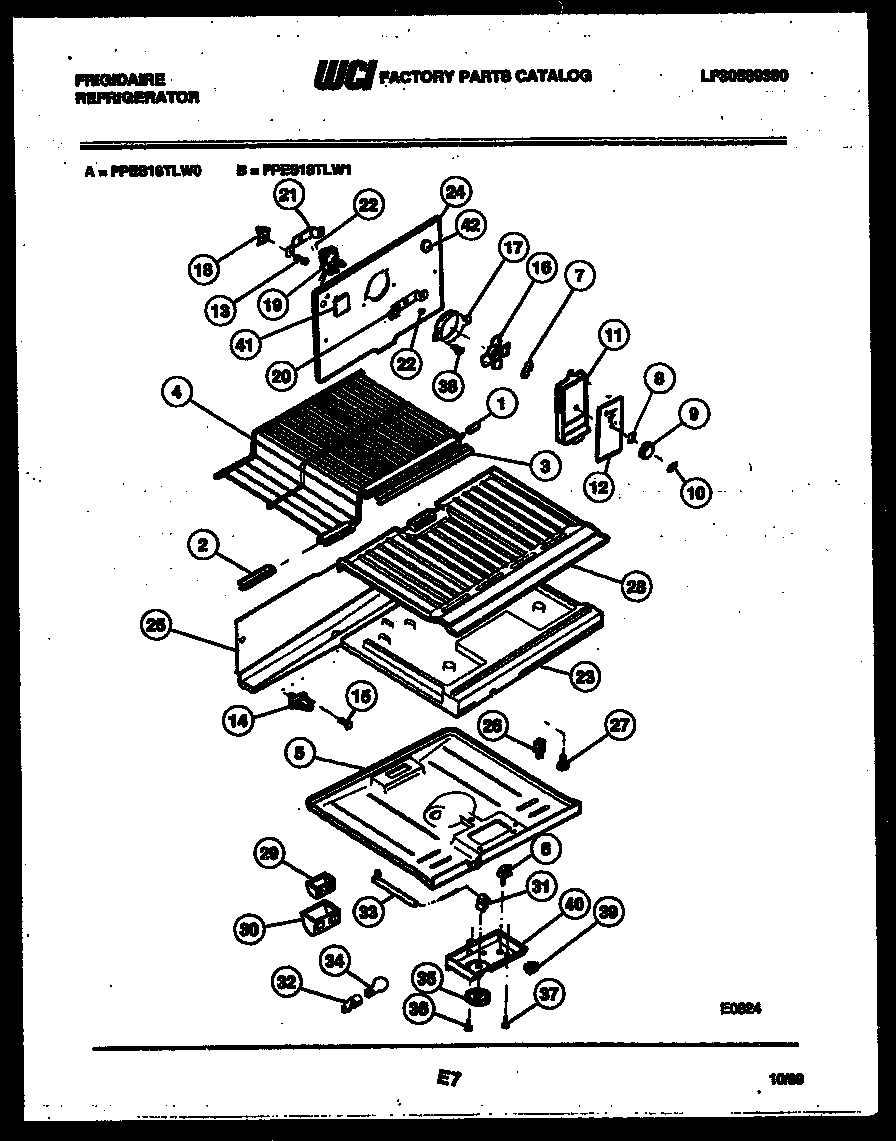

FPES18TLH0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1END CAP-SHELF,PROTECTOR
2TRIM-SHELF-FREEZER
3TRIM-SHELF-FREEZER
4SHELF, FREEZER, STEP
5TOP – REFRIGERATOR
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7WCI 08000066
8WCI 08000067
9WCI 08009793
10LABEL, KNOB
11FAN COVER
12WCI 08009924
135304455651 Frigidaire Refrigerator Screw
14WCI 08000056
15PIN-PUSH
165308000010 Frigidaire Refrigerator Evaporator Fan Blade
17WCI 08000124
18WCI 08000107
195300158289 Frigidaire Evaporator Fan Motor
20WCI 08000043
21WCI 08000042
22G187559 Frigidaire Refrigerator Bushing
23DIVIDER-FOAM
24WCI 08009771
24AWCI 08000126
25WCI 08009772
265309918806 Frigidaire Refrigerator Light Switch Door
27WCI 08000070
28WCI 08015543
29WCI 3204206
30WCI 08000055
31CONTROL-TEMPERATURE
32218906802 Frigidaire Light Lamp Socket
33WCI 3018891
34316538904 Frigidaire Oven Lamp Light
35KNOB, TEMP CONTROL
36WCI 08000009
375304455649 Frigidaire Refrigerator Screw
38218843801 Frigidaire Refrigerator Screw
39WCI 3018896
40CONTROL BOX
41WCI 08013636
42PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
