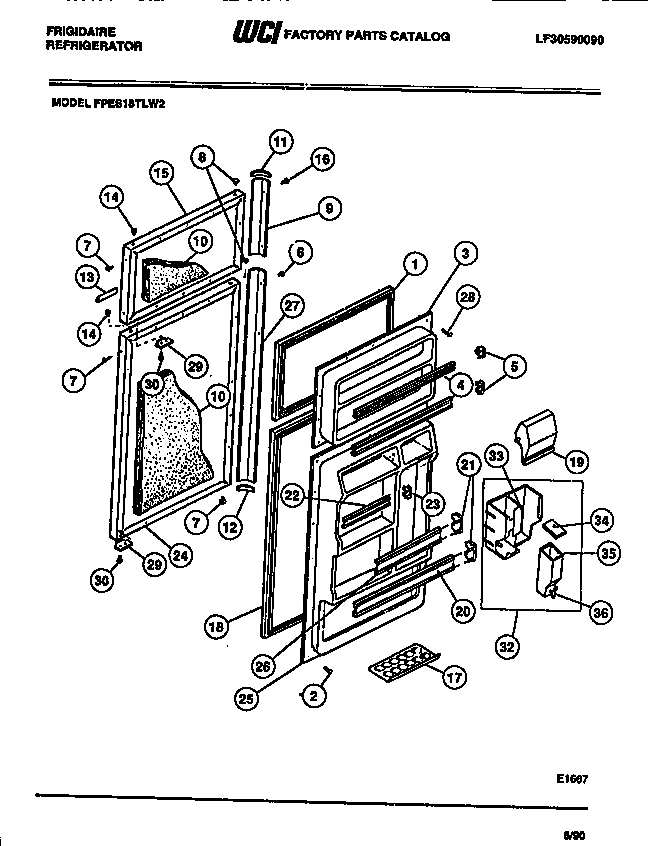

FPES18TLL2 02 – DOOR SECTION

Products

Position	Product
1	GASKET-FRZR DOOR, BROWN, MAGNETIC
3	WCI 3205318
4	WCI 3018972
7D	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8D	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
9	HANDLE-COMPLETE
10	INSULATION-BULK (NON-ILLUSTRATED)
11	WCI 5308010239
12	END CAP-BOTTOM (2)
13	WCI 3201581
14	BEARING-HINGE
15D	WCI 5308009933
16	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
17	215817806 Frigidaire Refrigerator Egg Tray
18	GASKET-REFR DOOR, BROWN, MAGNETIC
19	WCI 3205319
21	5303325991 Frigidaire Refrigerator Door Bar Endcap
21	5303325990 Frigidaire Refrigerator Door Bar End Cap
22	RACK-REFR DOOR
23	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
23A	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
24D	WCI 5308009930
25	WCI 3205321
26	215516220 Frigidaire Refrigerator Door Rack
27	HANDLE-COMPLETE
28	218843801 Frigidaire Refrigerator Screw
29	WCI 5308000255
30	WCI 5308011745
32	WCI 5303204775
33	WCI 3205322
34	WCI 3205292
35	WCI 3205291
36	WCI 3205288
36A	WCI 3205289
36B	WCI 3205290
