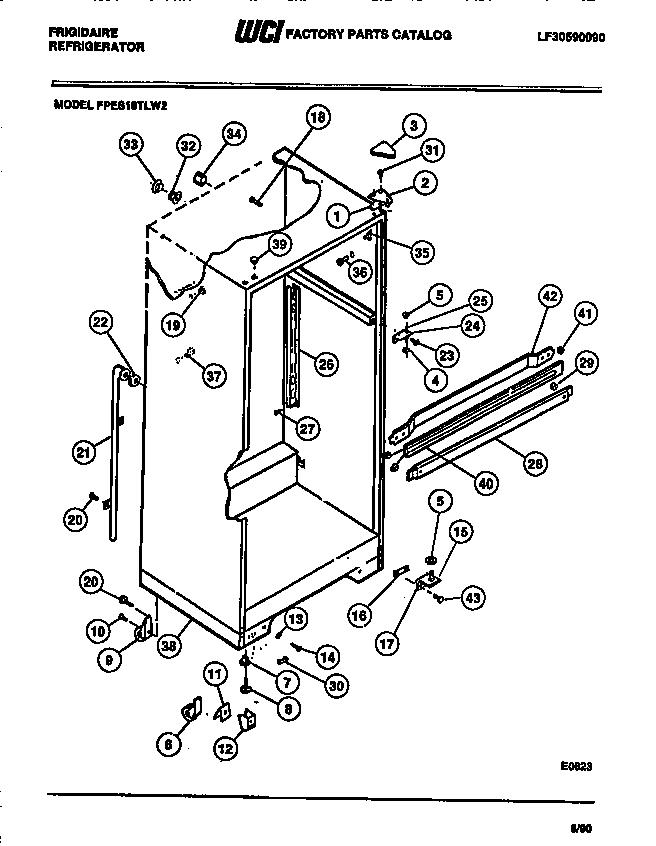

| 1 | SHIM - UPPER HINGE |
| 2 | BRACKET-UPPER HINGE |
| 3D | COVER-UPPER HINGE, ALMOND |
| 4 | WCI 5308000186 |
| 5 | WASHER, .34 X .62 X .05, NYLON |
| 6 | WCI 5308009760 |
| 7 | WCI 5308003584 |
| 8 | SCREW-LEVELING (4) |
| 9 | WCI 5308009773 |
| 10 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 11 | WCI 5308009790 |
| 12 | SUPPORT, BASE (2) |
| 13 | WCI 5308011326 |
| 14 | BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED) |
| 15 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 16 | SHIM-LOWER HINGE |
| 17 | HINGE BRACKET - BOTTOM |
| 18 | SUPPORT-COIL COVER |
| 19A | PLUG, BUTTON, CABINET LINER (NI) |
| 20 | 5304455651 Frigidaire Refrigerator Screw |
| 21 | WCI 5303210377 |
| 22 | WCI 5303207353 |
| 23 | WCI 5308012258 |
| 24 | BRACKET-CTR HINGE |
| 25 | WCI 5308000184 |
| 26 | CHANNEL, RH & LH |
| 27 | 5304455852 Frigidaire Refrigerator Screw |
| 28D | WCI 5303200370 |
| 29 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 30 | COVER-HOLE, LOWER HINGE |
| 32 | WCI 5303001286 |
| 33 | WCI 5303001287 |
| 34 | TUBE-RUBBER |
| 35D | TRIM-CABINET CORNER, ALMOND |
| 36 | 5304509705 Frigidaire Refrigerator Grommet |
| 37 | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 38 | CABINET BASE |
| 39D | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 40 | WCI 5308002662 |
| 41 | SPACER-MULLION MTG, STEEL |
| 42 | WCI 5308010008 |
| 43A | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 43 | 241710601 Frigidaire Refrigerator Screw |
