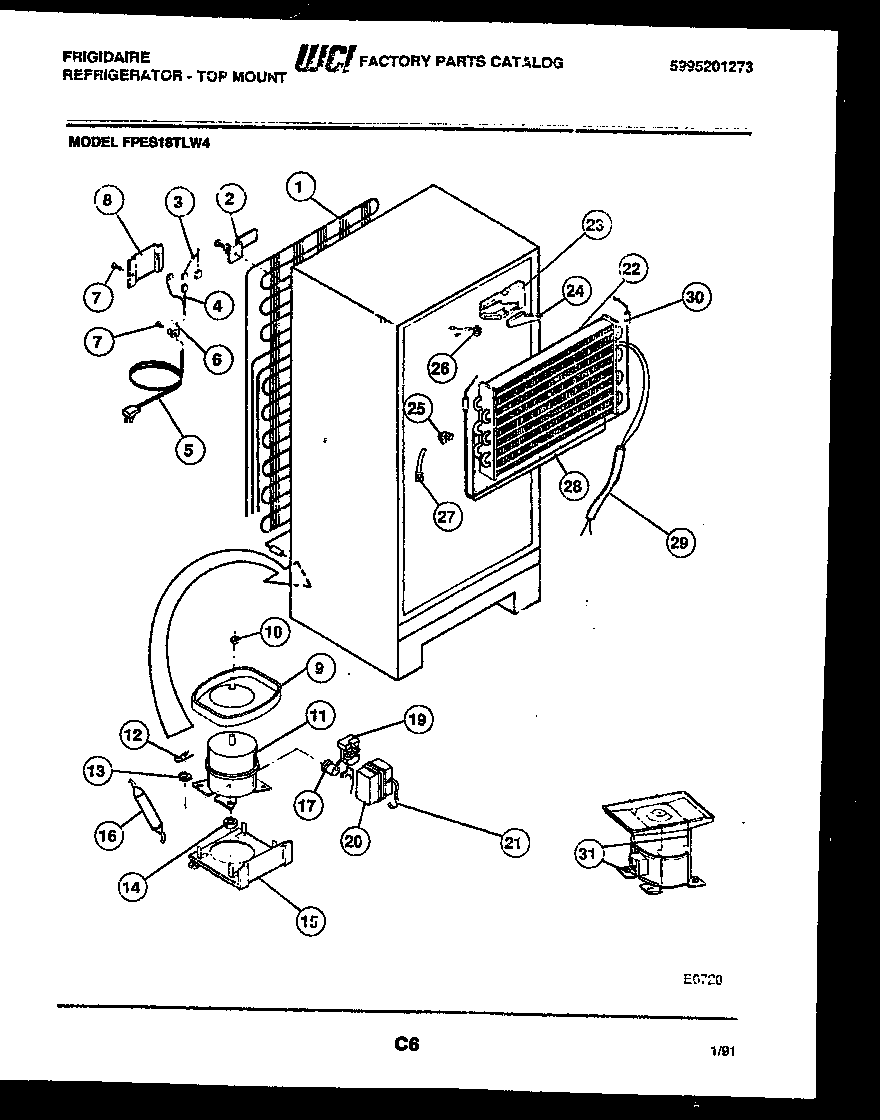

FPES18TLW4 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPES18TLW4 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPES18TLW4 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*40469HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
2A5308000039 Frigidaire Refrigerator Screw
3WCI 3018900
4WIRING HARNESS, COMPRESSOR,
5CORD-ELECTRIC POWER
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
75304455651 Frigidaire Refrigerator Screw
8WCI 5303001197
9A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
9PAN-DEFROST-ORIG COMPRESSOR
10Nut,lock `1/4-20 ,drain pan mtg
11COMPRESSOR W/ ELECTRICALS-SERVICE
12CLIP – COMPRESSOR MTG
13WASHER-COMPR MTG
14218513300 Frigidaire Refrigerator Compressor Mount Grommet
15WCI 5308013663
165303305677 Frigidaire Replacement Filter Dryer Filters
17WCI 3201563
19WCI 5303201562
20WCI 08016583
21STRAP-BALE
22WCI 5300162506
23INSULATION BLOCK, RH
24INSULATION PLUG, RH
25INSULATION BLOCK, LH
265303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
275308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
28INSULATOR-EVAP, PLASTIC
29WCI 5308000728
29A5308000133 Frigidaire Refrigerator Clamp
305317842502 Frigidaire Defrost Heater
31PAN RETAINER KIT, SERVICE
