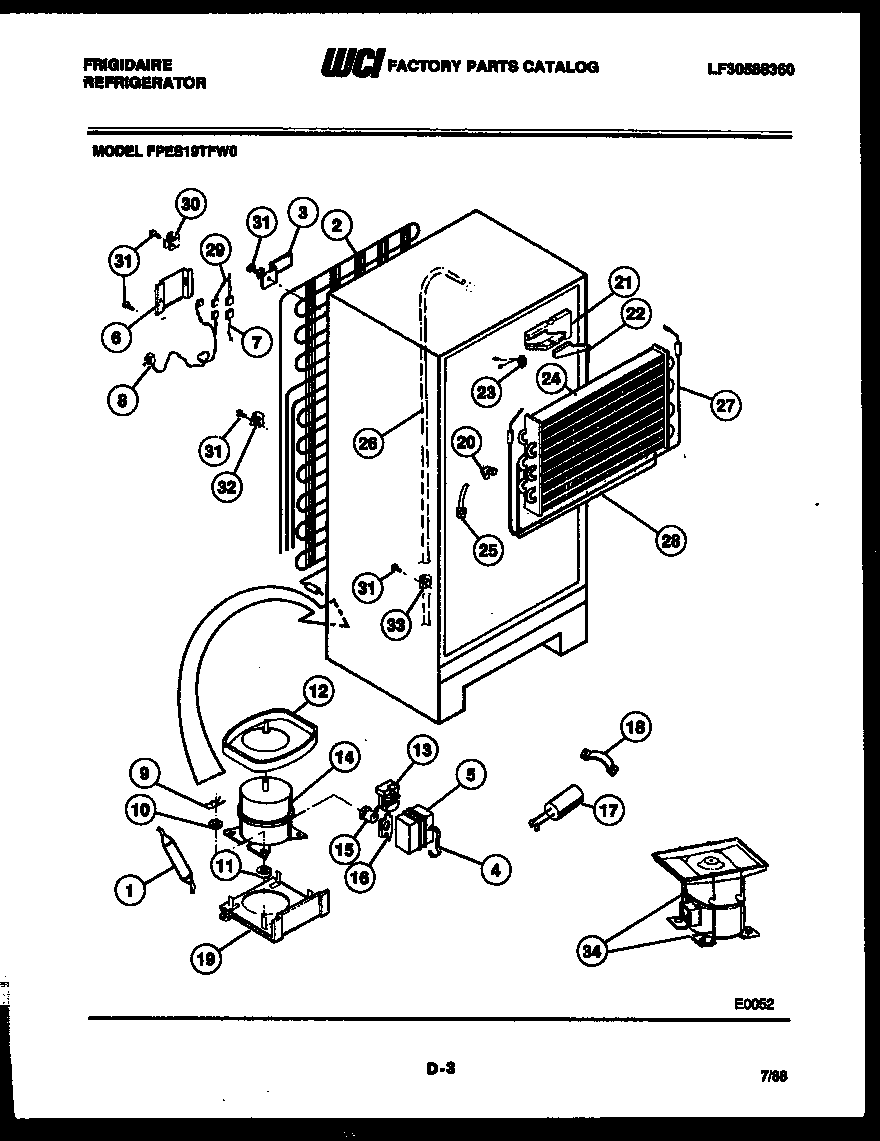

FPES19TFA0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*15239	SOUND TAPE-PAN (NON-ILLUSTRATED)
*15239	WCI 9960001
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 3001497
3	BRACKET-CONDENSER MOUNTING (4)
4	WCI 8000117
5	WCI 8006982
6	WCI 8013644
7	WCI 8009628
8	WCI 8000064
9	CLIP (4)
10	WASHER (4)
11	WCI 8008778
12	DEFROST PAN-SERVICE COMPRESSOR
12A	LOCK NUT-PAN MOUNTING
13	WCI 8017226
14	WCI 8950233
15	WCI 8017572
16	CLIP-OVERLOAD
17	WCI 8017230
18	WCI 8017231
19	WCI 8013663
20	WCI 8017227
21	WCI 8013648
22	WCI 8013646
23	WCI 8000073
24	WCI 8000062
25	WCI 8000110
26	WCI 8010274
27	WCI 8000061
28	INSULATION-EVAPORATOR
29	WCI 3018900
30	WCI 8000187
31	SCREW-TUBE MOUNTING (2)
32	CLAMP-CABLE (3)
33	WCI 8000133
34	WCI 8950024
