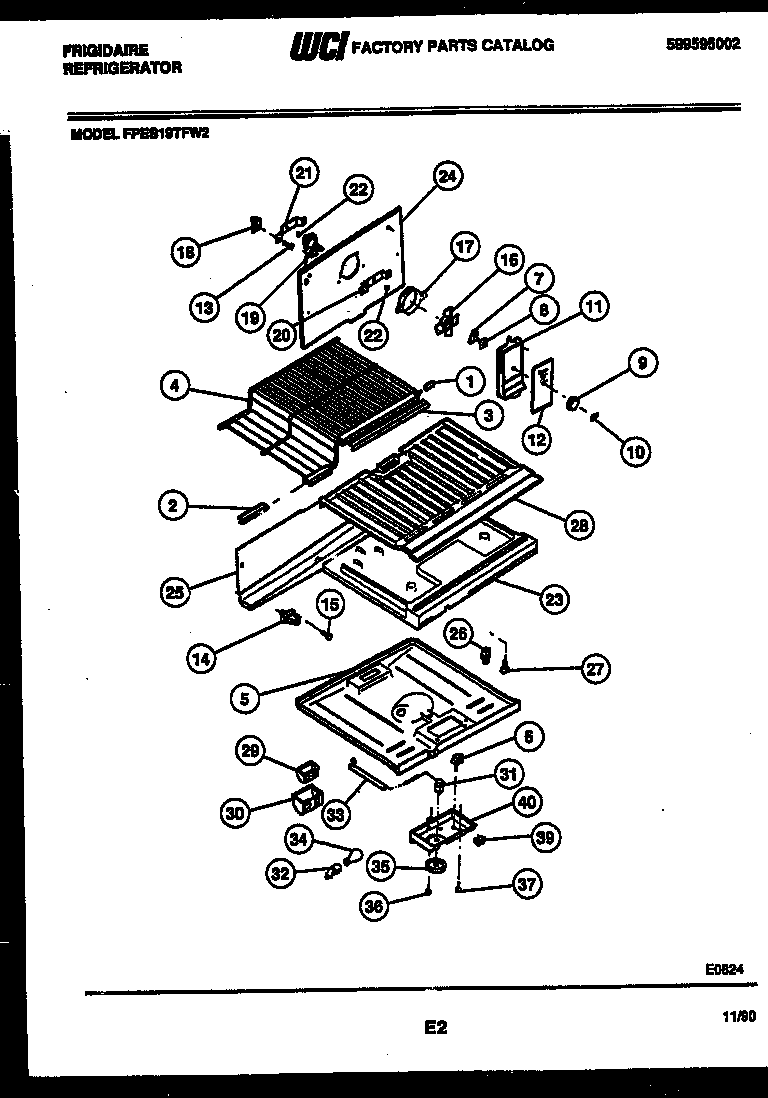

FPES19TFA2 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	END CAP-SHELF,PROTECTOR
2	TRIM-SHELF-FREEZER
3	TRIM-SHELF-FREEZER
4	SHELF-FREEZER-STEP
5	TOP – REFRIGERATOR
6	215846604 Frigidaire Refrigerator Defrost Timer
7	DAMPER-FAN COVER
8	Nut,push-on
9	KNOB, DAMPER
10	LABEL, KNOB
11A	BUTTON – DECORATIVE PLUG
11	FAN COVER
12	WCI 08009924
13	SCREW-PANEL MOUNTING (56)
14A	WCI 5303001361
14	WCI 5308000056
15	218843801 Frigidaire Refrigerator Screw
16	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
17	RING-FAN ORIFICE
18	WCI 5308000107
19	5300158289 Frigidaire Evaporator Fan Motor
20	WCI 5303001226
21	BRACKET-MOTOR MTG, REAR
22	G187559 Frigidaire Refrigerator Bushing
23	DIVIDER-FOAM
24	WCI 5308009771
24A	5303208309 Frigidaire Refrigerator Plug Hole
24B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
25	WCI 5303001470
26	5309918806 Frigidaire Refrigerator Light Switch Door
27	WCI 5303001380
28	WCI 5303211427
29	WCI 3204206
30	COVER – AIR DEFLECTOR
31	WCI 5303018894
32	218906802 Frigidaire Light Lamp Socket
33	WCI 3018891
34	316538904 Frigidaire Oven Lamp Light
35	KNOB, TEMP CONTROL
36	WCI 5303001260
37	5304455649 Frigidaire Refrigerator Screw
39	WCI 5303018896
40	CONTROL BOX
