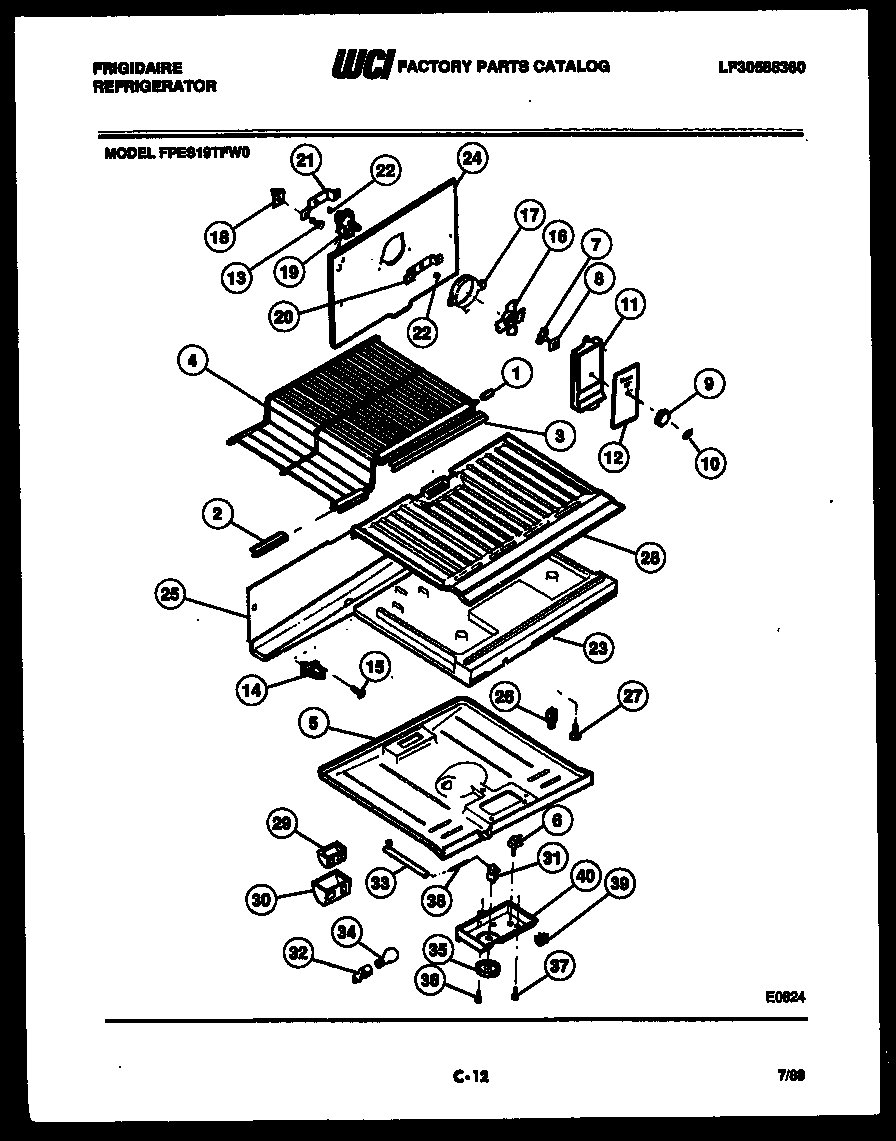

FPES19TFF0 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 8013638
2	TRIM-SHELF-FREEZER
3	TRIM-SHELF-FREEZER
4	SHELF-FREEZER-STEP
5	TOP – REFRIGERATOR
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7	WCI 8000066
8	WCI 8000067
9	WCI 8009793
10	WCI 8009823
11	WCI 8009817
12	WCI 8009924
13	SCREW-PANEL MOUNTING (56)
14	WCI 8000056
15	SCREW (5)
16	WCI 8000010
17	WCI 8000124
18	WCI 8000107
19	WCI 8000036
20	WCI 8000043
21	WCI 8000042
22	WCI 8000032
23	DIVIDER-FOAM
24	WCI 8009771
25	WCI 8009772
26	SWITCH, LIGHT
27	SCREW-TOP MOUNTING (3)
28	WCI 8015543
29	WCI 8000071
30	WCI 8000055
31	CONTROL-TEMPERATURE
32	WCI 8000815
33	WCI 3018891
34	LIGHT BULB
35	KNOB, TEMP CONTROL
36	WCI 8000008
37	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
38	WCI 8003637
39	WCI 3018896
40	CONTROL BOX
