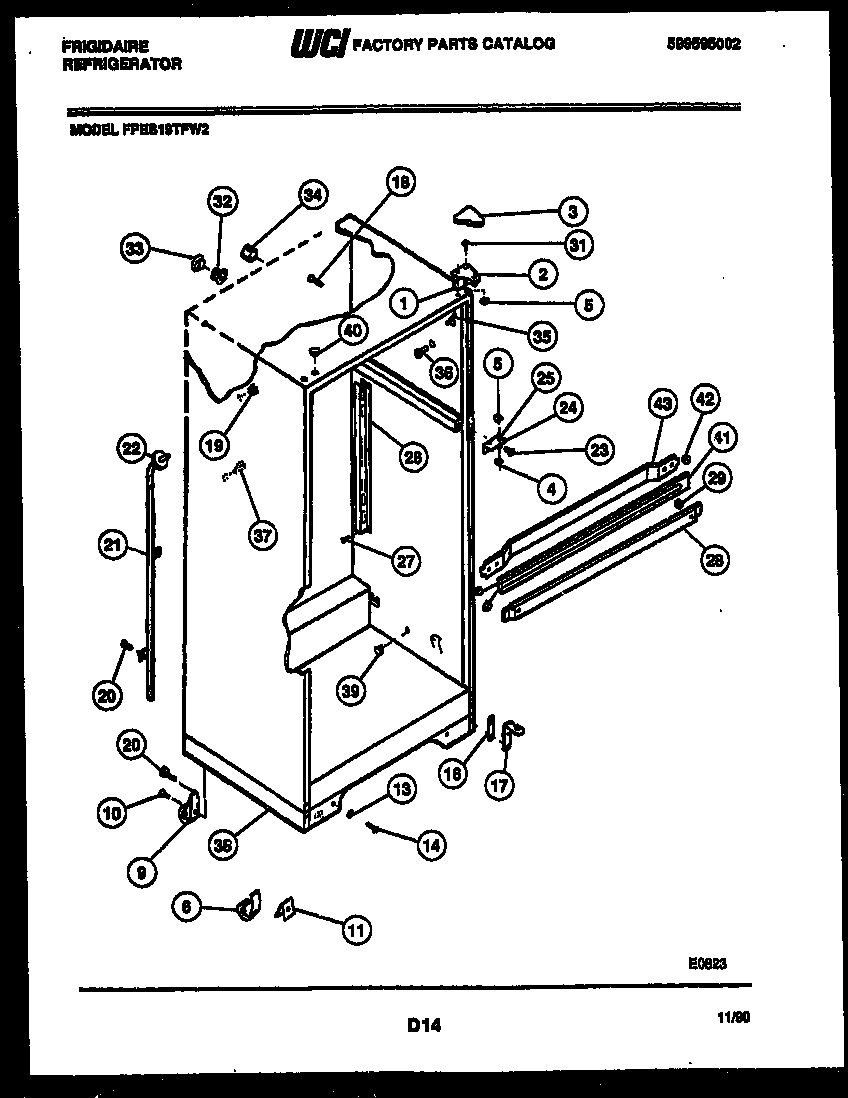

FPES19TFF2 03 – CABINET PARTS

Products

Position	Product
*39331	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
*39331	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
*39331	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	SHIM – UPPER HINGE
2	BRACKET-UPPER HINGE
3	WCI 5303001666
4	WCI 5308000186
5	WASHER, .34 X .62 X .05, NYLON
6	WCI 5303212490
9	WCI 5308009773
10	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11	WCI 5308009790
13	WCI 5308011326
14	WCI 5303212598
16	WCI 5303212488
17A	241710601 Frigidaire Refrigerator Screw
17	BRACKET-LOWER HINGE, W/ HINGE PIN
18	SUPPORT-COIL COVER
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 5303210377
22	WCI 5303207353
23	WCI 5308012258
24	BRACKET-CTR HINGE
25	WCI 5308000184
26	CHANNEL, RH & LH
27	5304455852 Frigidaire Refrigerator Screw
28	WCI 5303200369
29	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
32	WCI 5303001286
33	WCI 5303001287
34	TUBE-RUBBER
35	WCI 5303202339
36	5304509705 Frigidaire Refrigerator Grommet
37	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38	WCI 5303212487
39	PLUG, BUTTON, CABINET LINER (NI)
40	PLUG, COFFEE
41	WCI 5303210351
42	SPACER-MULLION MTG, STEEL
43	WCI 5308010008
