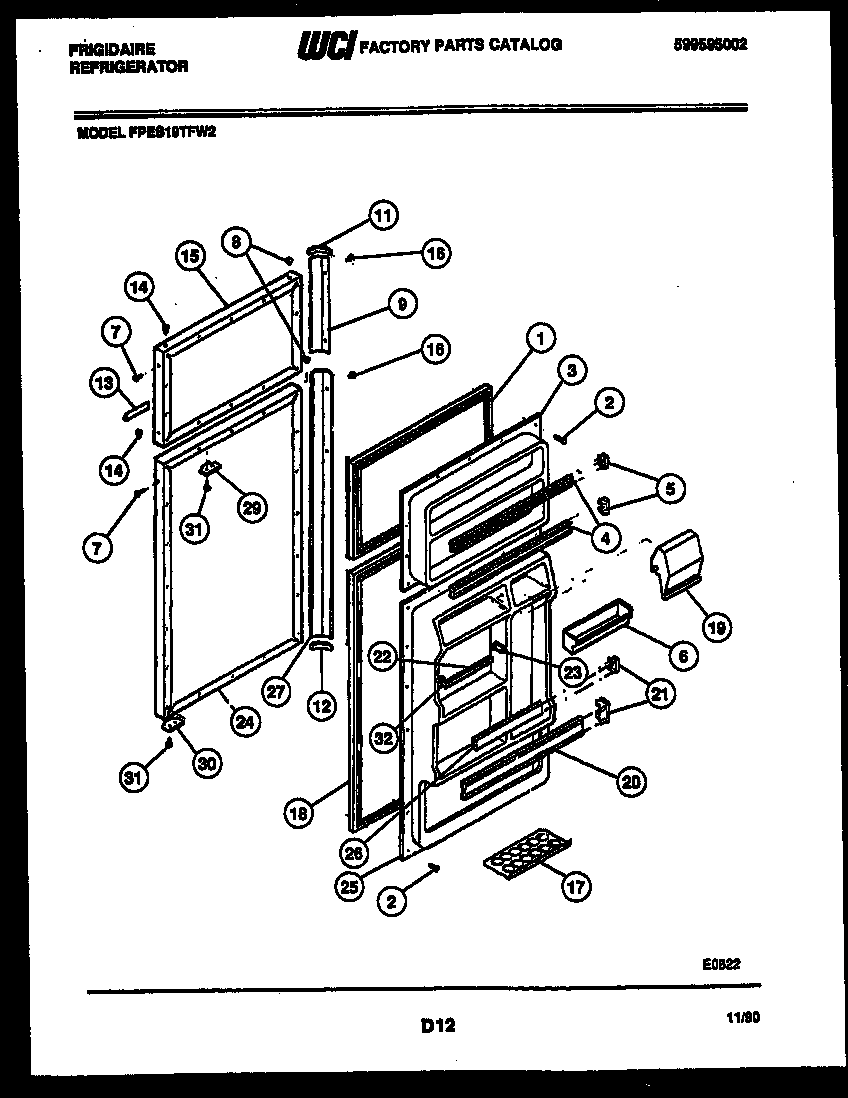

FPES19TFW2 02 – DOOR PARTS

FPES19TFW2 02 – DOOR PARTS

Written by

in

FPES19TFW2 02 – DOOR PARTS

Products

PositionProduct
*39328SNUGGER-FINGER (NON-ILLUSTRATED)
*39328INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, BROWN, MAGNETIC
25304455651 Frigidaire Refrigerator Screw
3WCI 3018971
4WCI 3018972
6WCI 3018973
7240494001 Frigidaire Refrigerator Plug Button
8PLUG-BUTTON, WHITE, HINGE BRG HOLE
9HANDLE-COMPLETE
11WCI 5308010239
12END CAP-BOTTOM (2)
13WCI 3201581
14BEARING-HINGE
15WCI 5308009931
16SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
18GASKET-REFR DOOR, BROWN, MAGNETIC
19DOOR-DAIRY
20215516220 Frigidaire Refrigerator Door Rack
22RACK-REFR DOOR
235303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24WCI 5308009928
25WCI 3018976
26B5303325991 Frigidaire Refrigerator Door Bar Endcap
26A5303325990 Frigidaire Refrigerator Door Bar End Cap
27HANDLE-COMPLETE
29WCI 5308000255
30DOOR STOP, REFR SECTION
31WCI 5308011745
325303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
