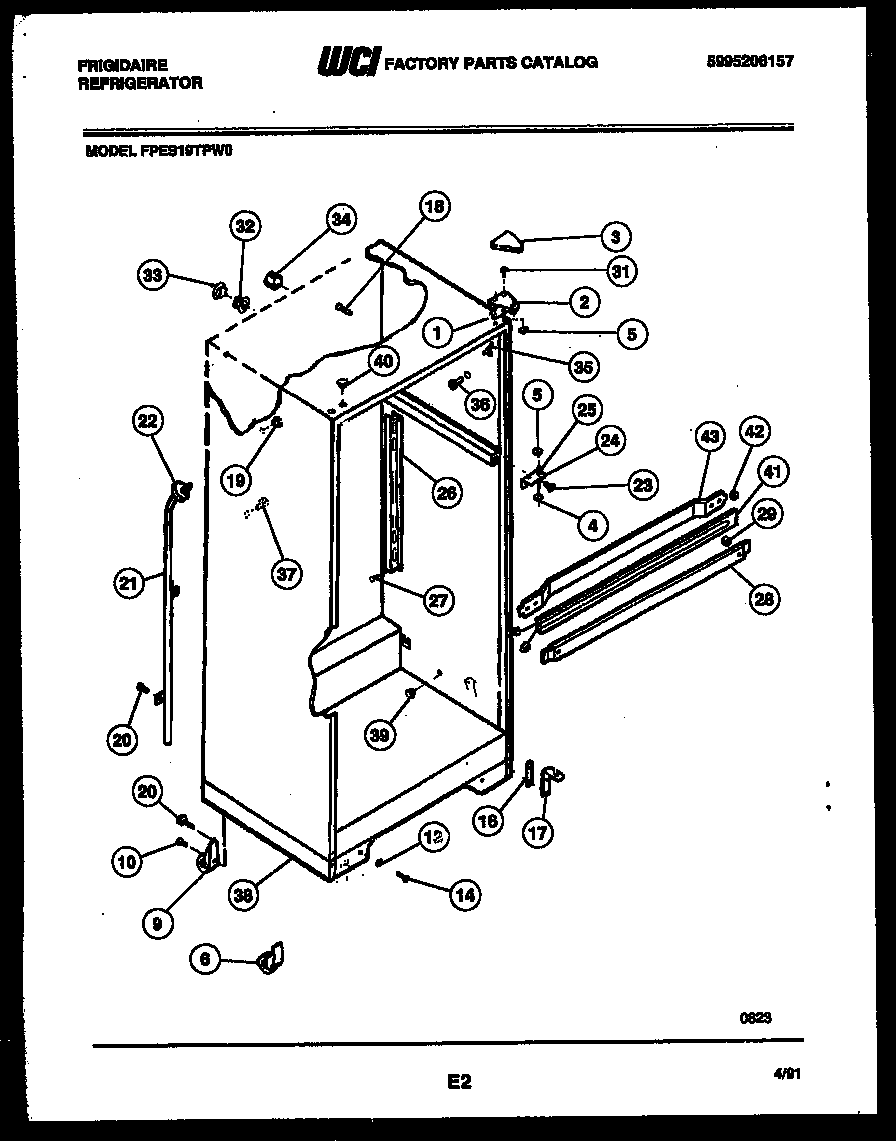

FPES19TPH0 03 – CABINET PARTS

Products

Position	Product
1	SHIM – UPPER HINGE
2	BRACKET-UPPER HINGE
2A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
3	COVER – HINGE-WHEAT
4	WCI 5308000186
5	WASHER, .34 X .62 X .05, NYLON
6	WCI 5303212490
9	WCI 5308009773
10	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
13	WCI 5308011326
14	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
16	WCI 5303212488
17C	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
17A	241710601 Frigidaire Refrigerator Screw
17B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
17	BRACKET-LOWER HINGE, W/ HINGE PIN
18	SUPPORT-COIL COVER
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 5303210377
22	WCI 5303207353
23	WCI 5308012258
24	BRACKET-CTR HINGE
25	WCI 5308000184
26	CHANNEL, RH & LH
27	5304455852 Frigidaire Refrigerator Screw
28	WCI 5303200368
29	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
32	WCI 5303001286
33	WCI 5303001287
34	TUBE-RUBBER
35	WCI 5303202338
36	5304509705 Frigidaire Refrigerator Grommet
37	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
38	WCI 5303212487
39	PLUG, BUTTON, CABINET LINER (NI)
40	BUTTON-HINGE-WHEAT
41	WCI 5303210351
42	SPACER-MULLION MTG, STEEL
43	WCI 5308010008
