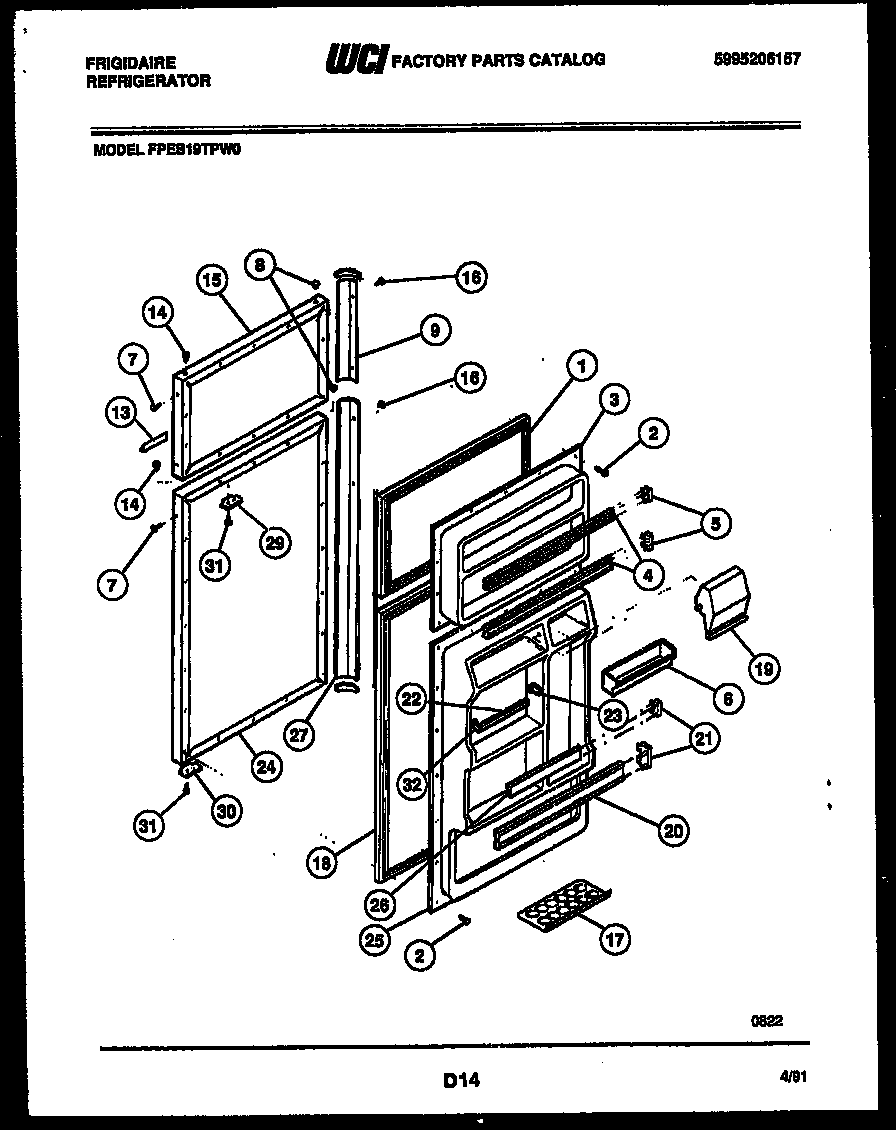

FPES19TPL0 02 – DOOR PARTS

FPES19TPL0 02 – DOOR PARTS

Written by

in

FPES19TPL0 02 – DOOR PARTS

Products

PositionProduct
*45913INSULATION-BULK (NON-ILLUSTRATED)
*45913SNUGGER-FINGER (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, BROWN, MAGNETIC
25304455651 Frigidaire Refrigerator Screw
3WCI 3018971
4WCI 3018972
6WCI 3018973
7PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8PLUG-BUTTON, ALMOND, HINGE BRG HOLE
9HANDLE-DOOR, ALMOND, FRZR
13WCI 3201581
14BEARING-HINGE
15WCI 5303916056
16SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
17215817806 Frigidaire Refrigerator Egg Tray
18GASKET-REFR DOOR, BROWN, MAGNETIC
19DOOR-DAIRY
20215516220 Frigidaire Refrigerator Door Rack
22RACK-REFR DOOR
235303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24WCI 5308009930
25WCI 3018976
26A5303325990 Frigidaire Refrigerator Door Bar End Cap
26B5303325991 Frigidaire Refrigerator Door Bar Endcap
27HANDLE-DOOR, ALMOND, REFR
29WCI 5308000255
30DOOR STOP, REFR SECTION
31WCI 5308011745
325303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
