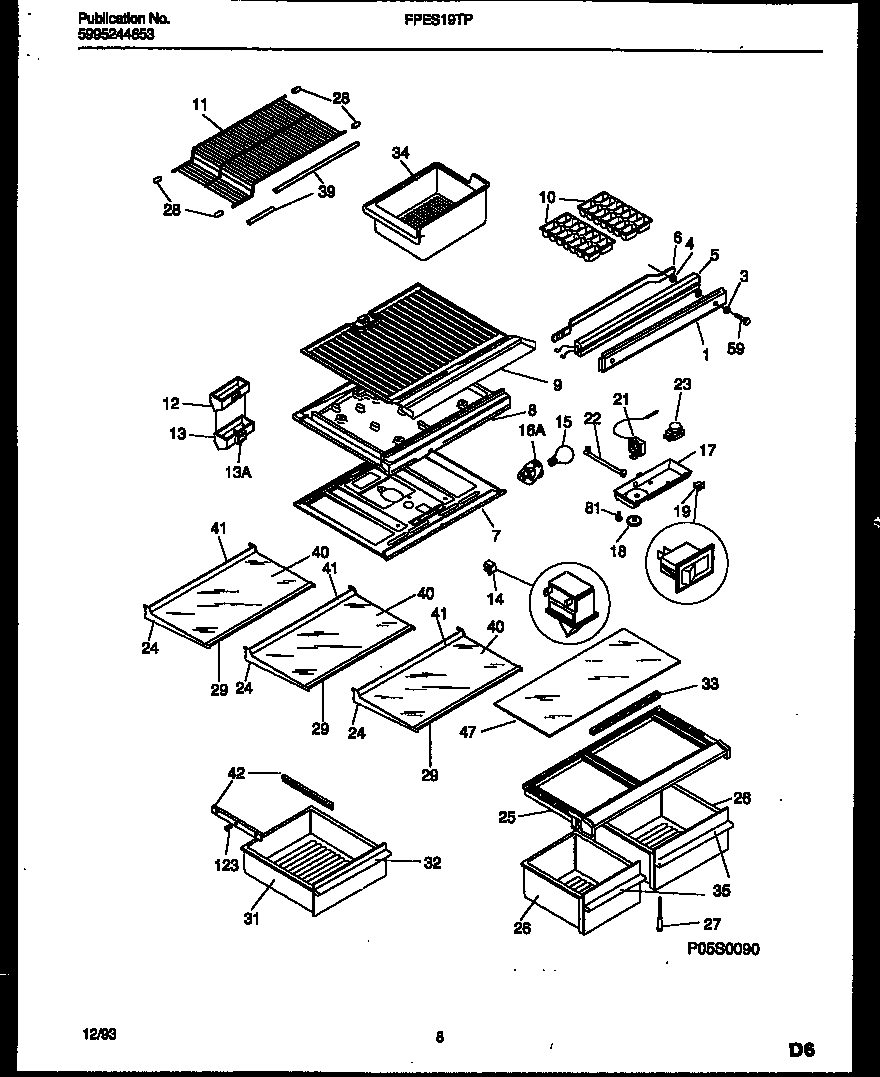

FPES19TPL1 05 – SHELVES AND SUPPORTS

FPES19TPL1 05 – SHELVES AND SUPPORTS

Written by

in

FPES19TPL1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP – REFRIGERATOR
8DIVIDER-FOAM
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
9WCI 5303211427
10WCI 01121808
11SHELF-FREEZER-STEP
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
17ANUT, ANCHOR (NI)
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24FRAME-FULL SHELF
24BWCI 5303210990
24AWCI 215339900
25AWCI 3018984
25WCI 5303018983
26AWCI 5303301062
26WCI 5303299801
27SUPPORT, COVER
28END CAP-SHELF,PROTECTOR
29AWCI 5303209274
29TRIM-FULL SHELF, SNAP-ON
31WCI 5303299812
32WCI 5303272530
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35ATRIM, CRISPER PAN, RH
35TRIM, CRISPER PAN, LH
39TRIM-FRZR SHELF, SMALL
39ATRIM-FRZR SHELF, LARGE
40WCI 5303211964
41ALOCK-SHELF TRIM, REAR
41WCI 5303211962
42HANGER-PAN LH
42AHANGER-PAN RH (NON-ILLUSTRATED)
47WCI 5303211968
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
