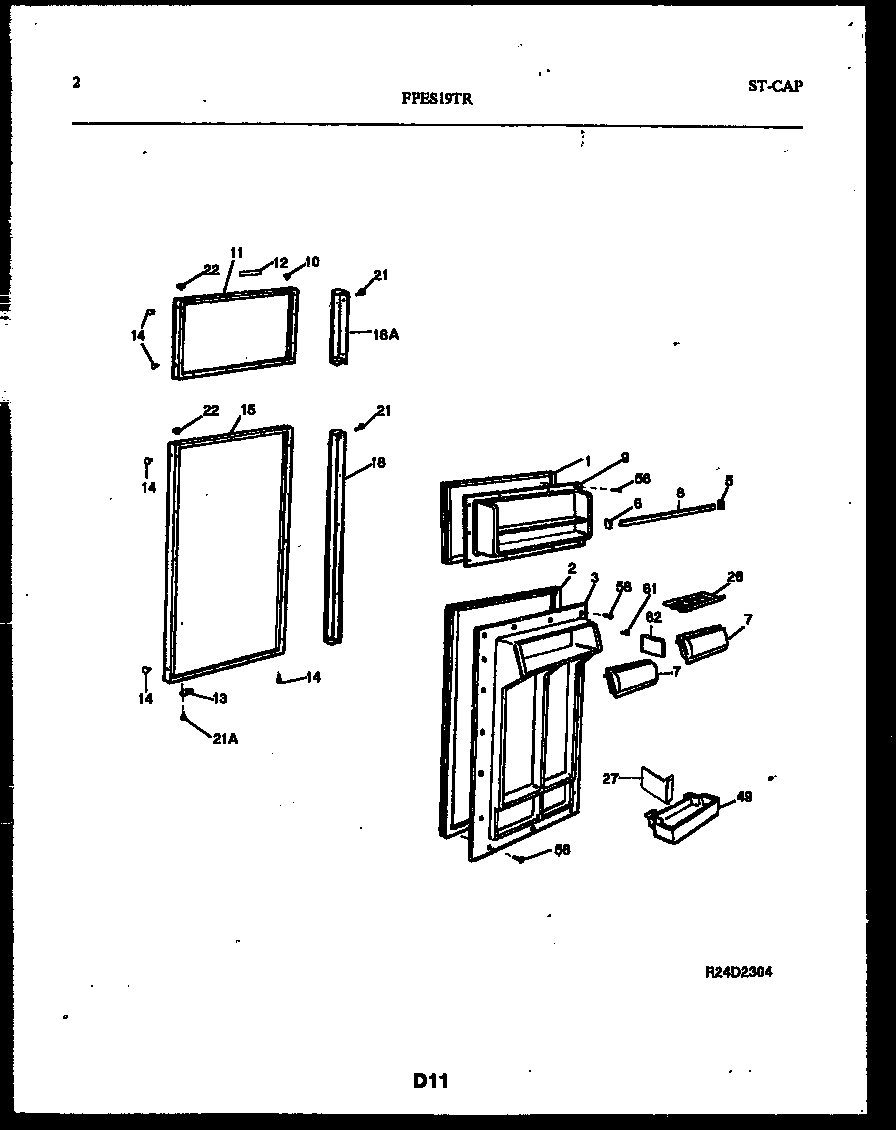

FPES19TRL0 02 – DOOR PARTS

FPES19TRL0 02 – DOOR PARTS

Written by

in

FPES19TRL0 02 – DOOR PARTS

Products

PositionProduct
*61529INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303276826
2WCI 5303275772
3WCI 5303276800
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303288237
7WCI 5303288236
8WCI 5303286886
9WCI 5303276748
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303916056
12WCI 5303275752
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15AWCI 5303275660
15WCI 5303916953
18AHANDLE-DOOR, ALMOND, FRZR
18HANDLE-DOOR, ALMOND, REFR
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
27WCI 5303275732
49WCI 5303275666
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
