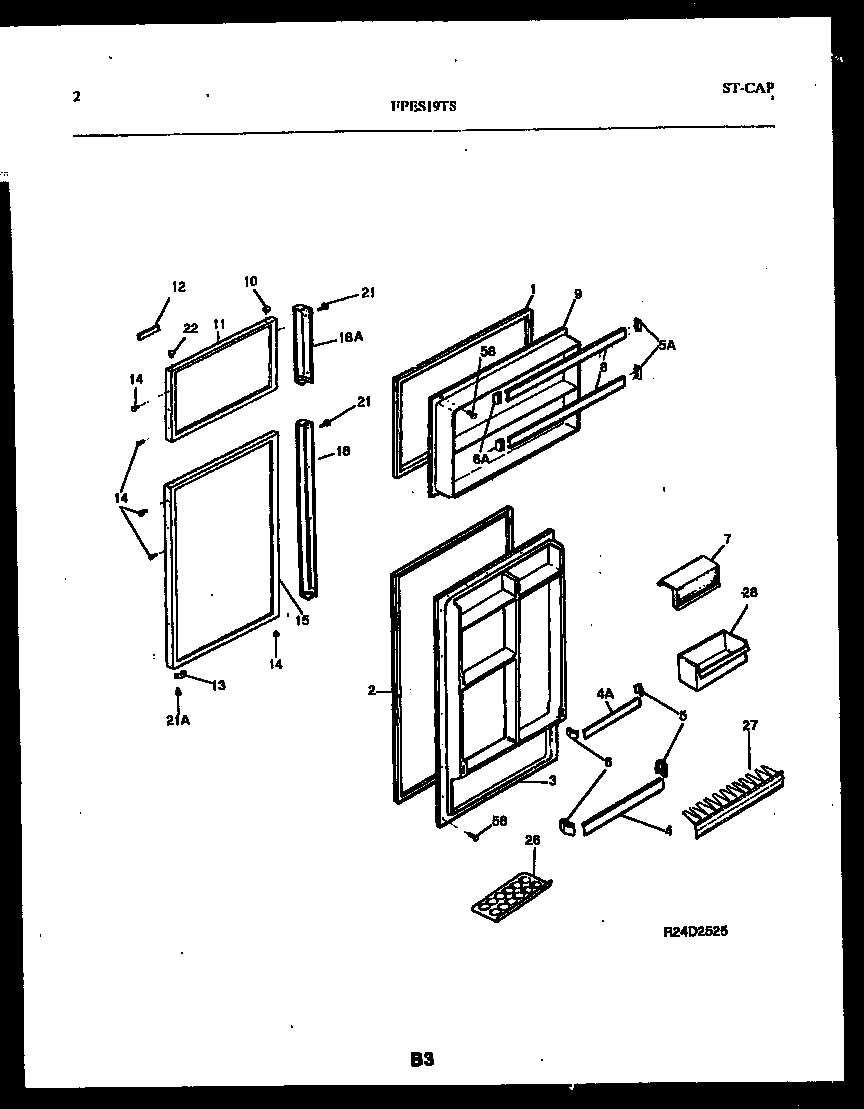

FPES19TSW0 02 – DOOR PARTS

FPES19TSW0 02 – DOOR PARTS

Written by

in

FPES19TSW0 02 – DOOR PARTS

Products

PositionProduct
*64884INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 3200310
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
7DOOR-DAIRY
7WCI 3018868
8WCI 3018972
9WCI 3018971
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303916052
12WCI 3201581
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE
18HANDLE-DOOR, WHITE, REFR
18AHANDLE-DOOR, WHITE, FRZR
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
27SNUGGER-FINGER (NON-ILLUSTRATED)
28WCI 3018973
585304455651 Frigidaire Refrigerator Screw
