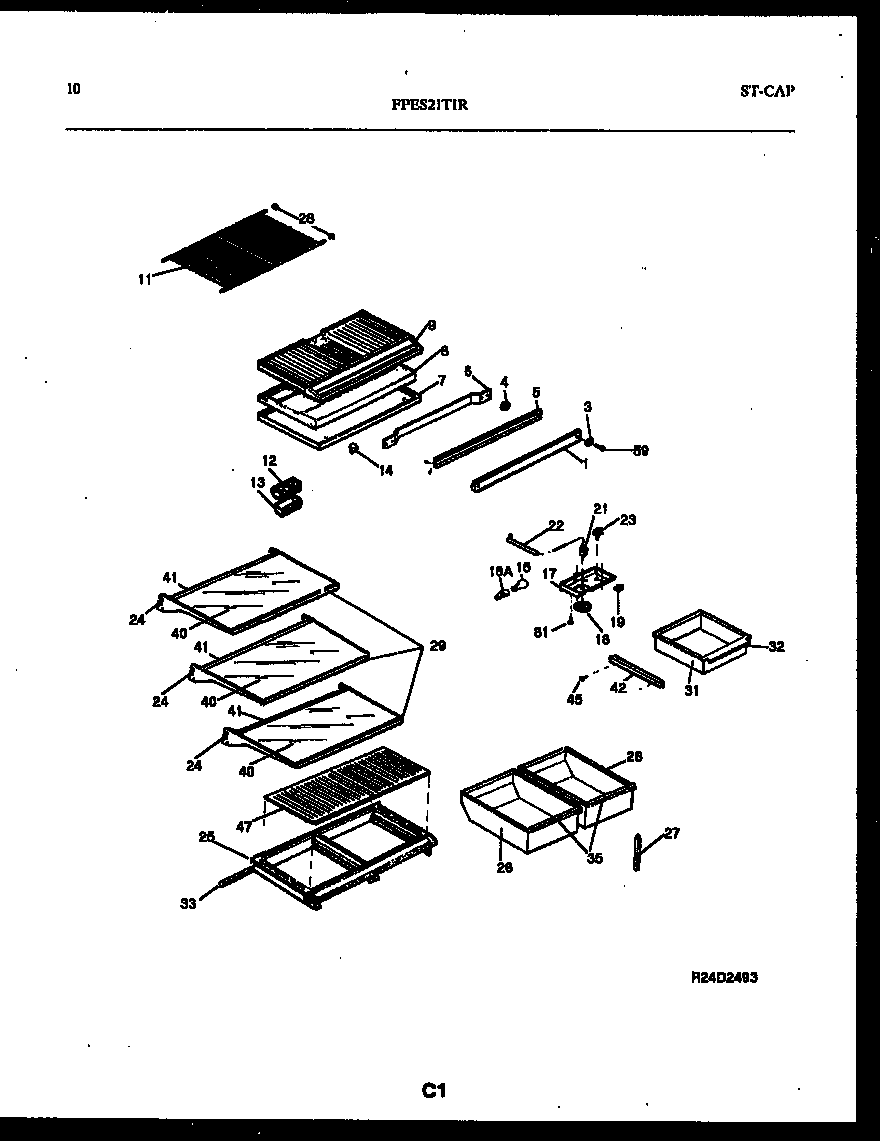

FPES21TIRW1 06 – SHELVES AND SUPPORTS

FPES21TIRW1 06 – SHELVES AND SUPPORTS

Written by

in

FPES21TIRW1 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7AWCI 5303001380
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303019039
8A3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
11WCI 5303288243
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 08016567
17WCI 5303275835
18WCI 5303275840
19WCI 5303207249
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24FRAME-FULL SHELF, CANTILEVER
24FRAME-MEAT KPR SHELF, CANTILEVER
25AWCI 5303280075
25WCI 5303206538
