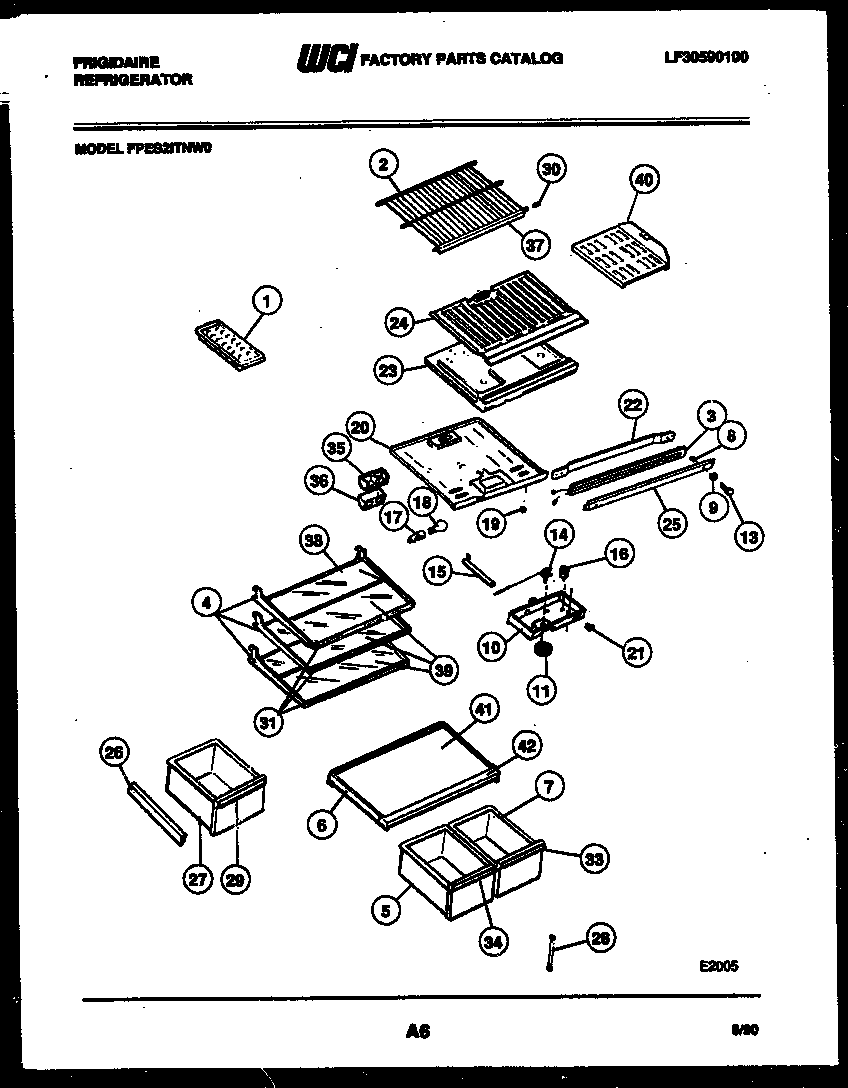

FPES21TNF0 04 – SHELVES AND SUPPORTS

FPES21TNF0 04 – SHELVES AND SUPPORTS

Written by

in

FPES21TNF0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*328345303212918 Frigidaire Refrigerator Cont
*32834CLIP-CANTILEVER SHLF
1215667501 Frigidaire Refrigerator Ice Tray Primary
2A5304509705 Frigidaire Refrigerator Grommet
2B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303208517
3WCI 5308002662
4WCI 3200616
4AFRAME-SHELF
5PAN, CRISPER, LH
6WCI 5303019035
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
7PAN, CRISPER, RH
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10CONTROL BOX
11KNOB, TEMP CONTROL
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3019038
20AWCI 5303001380
21WCI 5303018896
22WCI 5308010008
23WCI 5303019039
23AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
23B3205266 Frigidaire Refrigerator Edge Protector
24BOTTOM, FREEZER
25WCI 5303200369
26HANGER-PAN LH
26AHANGER-PAN RH (NON-ILLUSTRATED)
26BWCI 08014528
27WCI 3018987
28SUPPORT, COVER
29WCI 3018986
30END CAP-SHELF,PROTECTOR
31ARETAINER-GLASS-FULL SHELF
31TRIM
31BRETAINER-GLASS
33TRIM-PAN
34TRIM-PAN
35WCI 3204206
36COVER – AIR DEFLECTOR
37WCI 5303210636
38WCI 3203088
39WCI 3200614
39ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
40WCI 5318609501
40A5304455650 Frigidaire Refrigerator Screw
41WCI 3200389
42WCI 3018984
