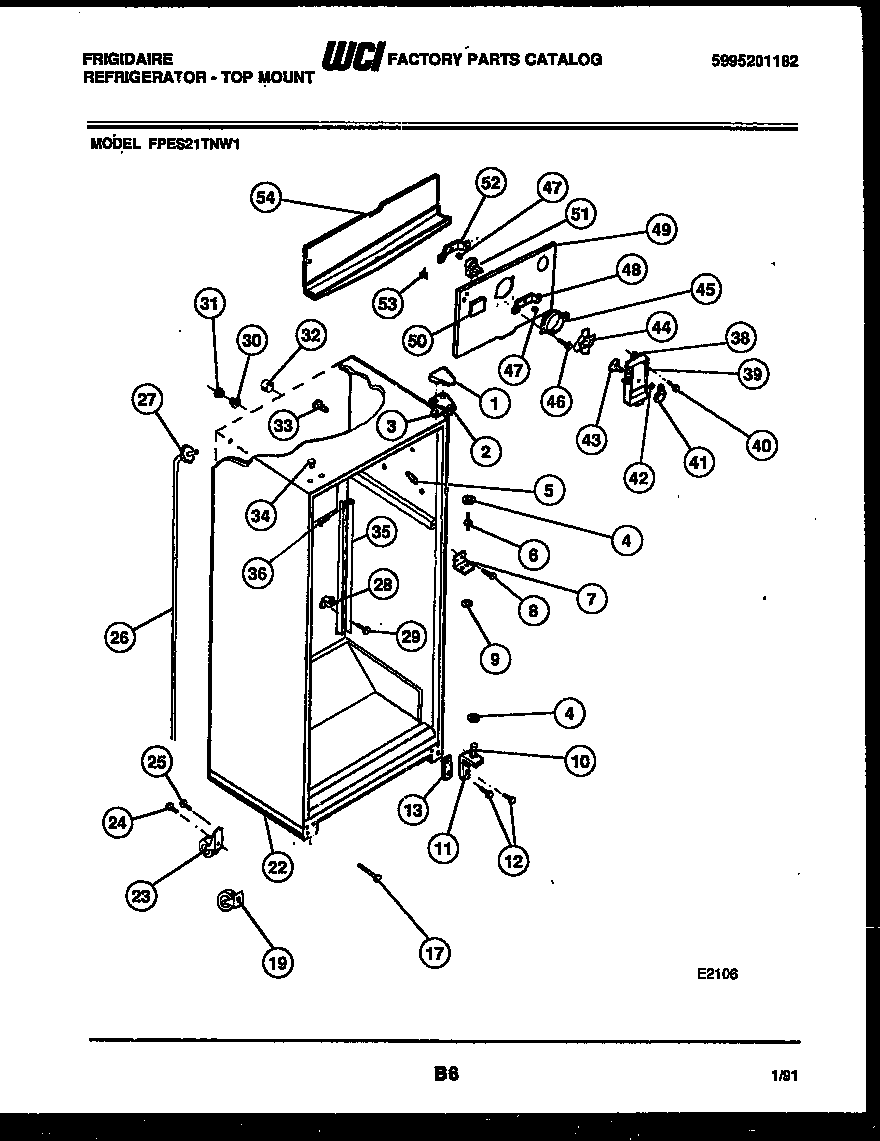

FPES21TNF1 03 – CABINET PARTS

Products

Position	Product
*41009	PLUG, BUTTON, CABINET LINER (NI)
*41009	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	WCI 5303001666
2	BRACKET-UPPER HINGE
3	SHIM – UPPER HINGE
4	WASHER, .34 X .62 X .05, NYLON
5	WCI 5303202339
6	WCI 5308000184
7	BRACKET-CTR HINGE
8	WCI 5308012258
8A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8B	SPACER-MULLION MTG, STEEL
9	WCI 5308000186
10	5303001321 Frigidaire Refrigerator Lower Hinge Pin
11B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
11A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
11	BRACKET-LOWER HINGE, W/ HINGE PIN
12	241710601 Frigidaire Refrigerator Screw
13	WCI 5303212488
17	WCI 5303212598
19	WCI 5303212490
22	WCI 5303212487
23	WCI 5308009773
24	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
26	WCI 5303210377
27	WCI 5303207353
28	WCI 5308000056
29	WCI 5303001361
30	WCI 5303001286
31	WCI 5303001287
32	TUBE-RUBBER
33	SUPPORT-COIL COVER
34	PLUG, COFFEE
35	CHANNEL, RH & LH
36	5304455852 Frigidaire Refrigerator Screw
38	WCI 08009825
39	WCI 08009937
41A	LABEL, KNOB
41	KNOB, DAMPER
42	Nut,push-on
43	DAMPER-FAN COVER
44	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
45	RING-FAN ORIFICE
46	5304455651 Frigidaire Refrigerator Screw
47	G187559 Frigidaire Refrigerator Bushing
48	WCI 5303001226
49A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
49B	5304455650 Frigidaire Refrigerator Screw
49	COVER, COIL
50	BUTTON – DECORATIVE PLUG
51	5300158289 Frigidaire Evaporator Fan Motor
52	BRACKET-MOTOR MTG, REAR
53	WCI 5308000107
54	WCI 5303001470
