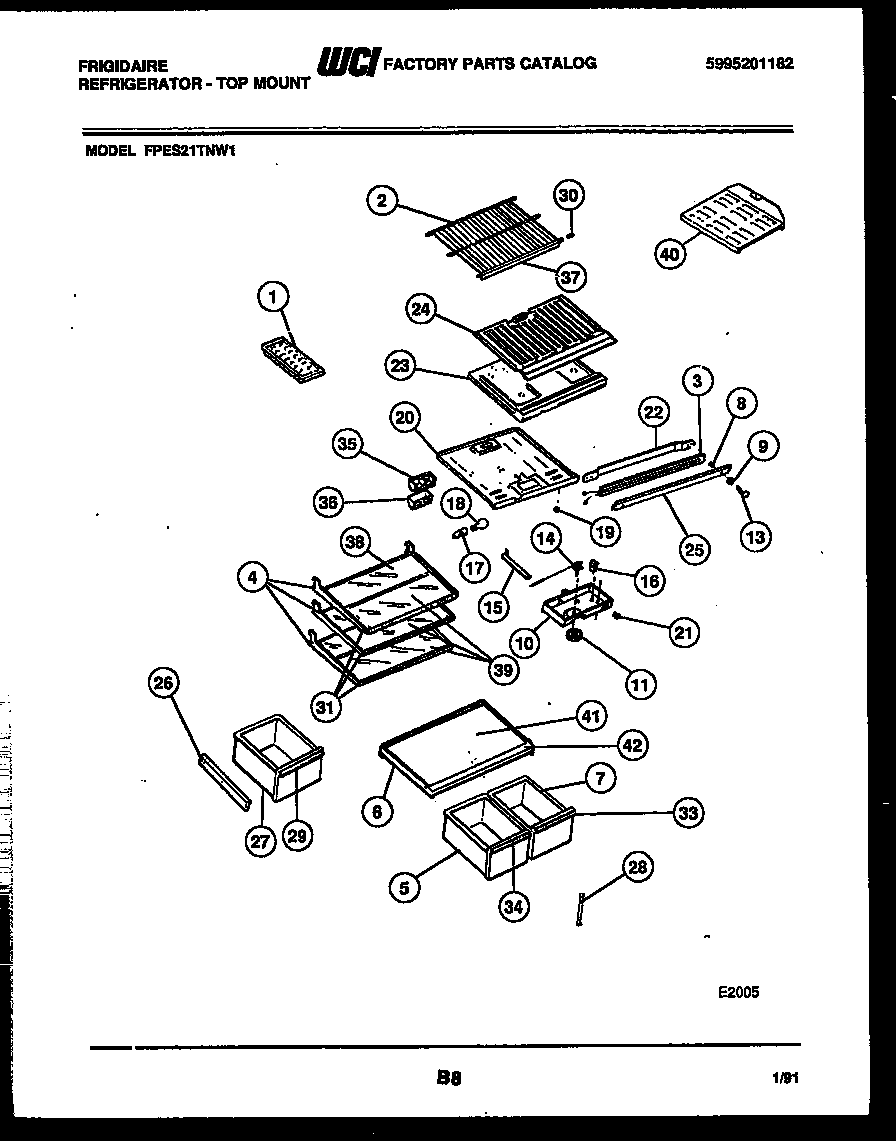

FPES21TNF1 04 – SHELVES AND SUPPORTS

FPES21TNF1 04 – SHELVES AND SUPPORTS

Written by

in

FPES21TNF1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*410135303212918 Frigidaire Refrigerator Cont
*41013CLIP-CANTILEVER SHLF
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 5303208517
2B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2A5304509705 Frigidaire Refrigerator Grommet
3WCI 5303210351
4WCI 3200616
4AFRAME-SHELF
5PAN, CRISPER, LH
6WCI 5303019035
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
7PAN, CRISPER, RH
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10CONTROL BOX
11KNOB, TEMP CONTROL
13WCI 5308012258
14WCI 5303018894
14AWCI 5303001260
15WCI 3018891
16215846604 Frigidaire Refrigerator Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20WCI 3019038
21WCI 5303018896
22WCI 5308010008
23B3205266 Frigidaire Refrigerator Edge Protector
23AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
23WCI 5303019039
24BOTTOM, FREEZER
25WCI 5303200369
26AHANGER-PAN RH (NON-ILLUSTRATED)
26HANGER-PAN LH
26BWCI 08014528
27WCI 3018987
28SUPPORT, COVER
29WCI 3018986
30END CAP-SHELF,PROTECTOR
31BRETAINER-GLASS
31TRIM
31ARETAINER-GLASS-FULL SHELF
33TRIM-PAN
34TRIM-PAN
35BEXTENSION, AIR DEFLECTOR, WITH INSULATION
35A5303001449 Frigidaire Refrigerator Seal
35DEFLECTRO, AIR, W/SEAL
36WCI 5303001448
37WCI 5303210636
38WCI 3203088
39WCI 3200614
39ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
40A5304455650 Frigidaire Refrigerator Screw
40WCI 5318609501
41WCI 3200389
42WCI 3018984
