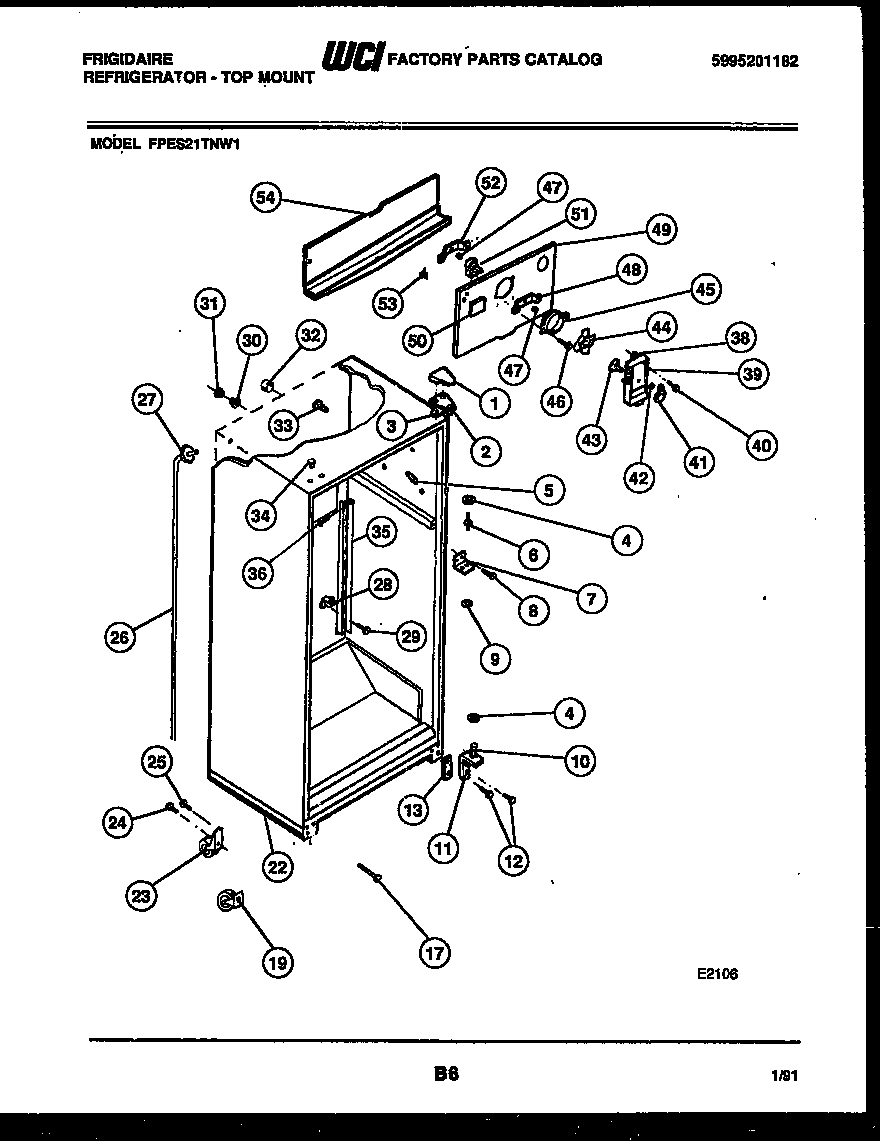

FPES21TNW1 03 – CABINET PARTS

Products

Position	Product
*41009	PLUG, BUTTON, CABINET LINER (NI)
*41009	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	COVER-UPPER HINGE, WHITE
2	BRACKET-UPPER HINGE
3	SHIM – UPPER HINGE
4	WASHER, .34 X .62 X .05, NYLON
5	TRIM-CABINET CORNER, WHITE
6	WCI 5308000184
7	BRACKET-CTR HINGE
8A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8	WCI 5308012258
8B	SPACER-MULLION MTG, STEEL
9	WCI 5308000186
10	5303001321 Frigidaire Refrigerator Lower Hinge Pin
11B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
11	BRACKET-LOWER HINGE, W/ HINGE PIN
11A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
12	241710601 Frigidaire Refrigerator Screw
13	WCI 5303212488
17	WCI 5303212598
19	WCI 5303212490
22	WCI 5303212487
23	WCI 5308009773
24	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
26	WCI 5303210377
27	WCI 5303207353
28	WCI 5308000056
29	WCI 5303001361
30	WCI 5303001286
31	WCI 5303001287
32	TUBE-RUBBER
33	SUPPORT-COIL COVER
34	PLUG-BUTTON, WHITE
35	CHANNEL, RH & LH
36	5304455852 Frigidaire Refrigerator Screw
38	WCI 08009825
39	WCI 08009937
41A	LABEL, KNOB
41	KNOB, DAMPER
42	Nut,push-on
43	DAMPER-FAN COVER
44	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
45	RING-FAN ORIFICE
46	5304455651 Frigidaire Refrigerator Screw
47	G187559 Frigidaire Refrigerator Bushing
48	WCI 5303001226
49A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
49	COVER, COIL
49B	5304455650 Frigidaire Refrigerator Screw
50	BUTTON – DECORATIVE PLUG
51	5300158289 Frigidaire Evaporator Fan Motor
52	BRACKET-MOTOR MTG, REAR
53	WCI 5308000107
54	WCI 5303001470
