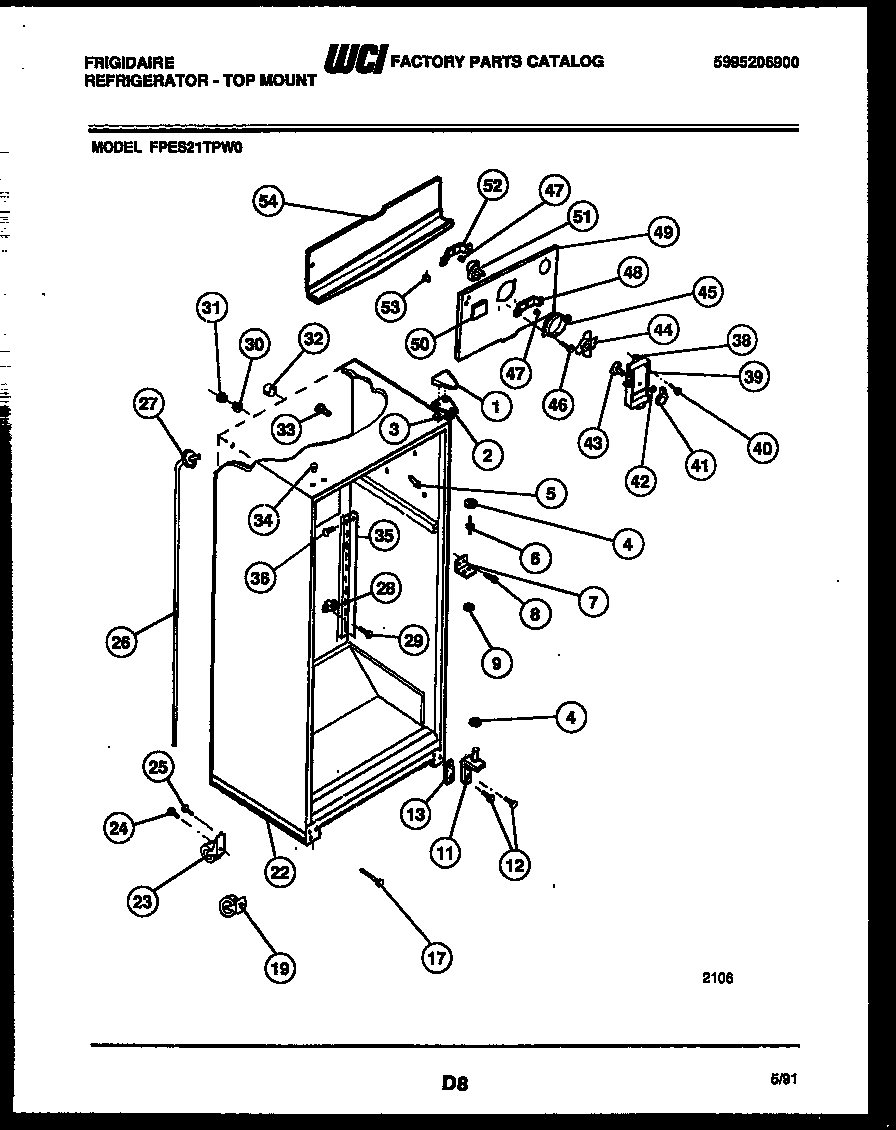

FPES21TPL0 03 – CABINET PARTS

FPES21TPL0 03 – CABINET PARTS

Written by

in

FPES21TPL0 03 – CABINET PARTS

Products

PositionProduct
*46514PLUG, BUTTON, CABINET LINER (NI)
*46514TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1COVER-UPPER HINGE, ALMOND
2BRACKET-UPPER HINGE
3SHIM – UPPER HINGE
4WASHER, .34 X .62 X .05, NYLON
5TRIM-CABINET CORNER, ALMOND
6WCI 5308000184
7BRACKET-CTR HINGE
8WCI 5308012258
9WCI 5308000186
11BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
11ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
11BRACKET-LOWER HINGE, W/ HINGE PIN
12241710601 Frigidaire Refrigerator Screw
13WCI 5303212488
145303208309 Frigidaire Refrigerator Plug Hole
17BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
19WCI 5303212490
22WCI 5303212487
23WCI 5308009773
24BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
255304455651 Frigidaire Refrigerator Screw
26WCI 5303210377
27WCI 5303207353
28WCI 5308000056
29WCI 5303001361
30WCI 5303001286
31WCI 5303001287
32TUBE-RUBBER
33SUPPORT-COIL COVER
34PLUG-BUTTON, ALMOND, UPR HINGE HOLES
35CHANNEL, RH & LH
365304455852 Frigidaire Refrigerator Screw
38WCI 08009825
39WCI 08009937
41ALABEL, KNOB
41KNOB, DAMPER
42Nut,push-on
43DAMPER-FAN COVER
445308000010 Frigidaire Refrigerator Evaporator Fan Blade
45RING-FAN ORIFICE
47G187559 Frigidaire Refrigerator Bushing
48WCI 5303205118
49ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
49COVER, COIL
49B5304455650 Frigidaire Refrigerator Screw
50BUTTON – DECORATIVE PLUG
515300158289 Frigidaire Evaporator Fan Motor
52BRACKET-MOTOR MTG, REAR
53WCI 5308000107
54WCI 5303001470
