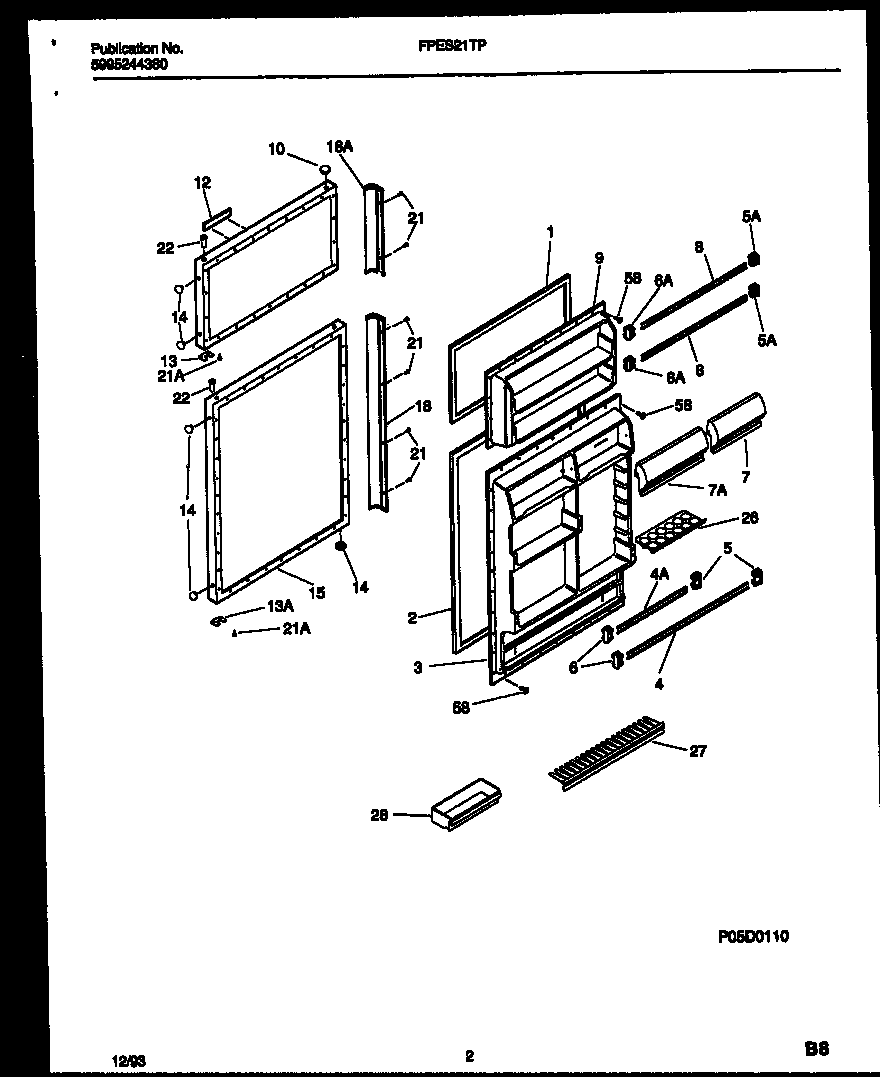

FPES21TPL1 02 – DOOR PARTS

FPES21TPL1 02 – DOOR PARTS

Written by

in

FPES21TPL1 02 – DOOR PARTS

Products

PositionProduct
*91938INSULATION
1WCI 5308017483
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 5303200596
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303325991 Frigidaire Refrigerator Door Bar Endcap
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7AWCI 5303299813
7DOOR-DAIRY
7AWCI 5303001380
8WCI 3017419
9WCI 3019030
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916119
12WCI 3201581
13WCI 5308000255
13ADOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
18AWCI 5303272795
18HANDLE-DOOR, ALMOND, REFR
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
27SNUGGER-FINGER (NON-ILLUSTRATED)
28WCI 3018973
585304455651 Frigidaire Refrigerator Screw
