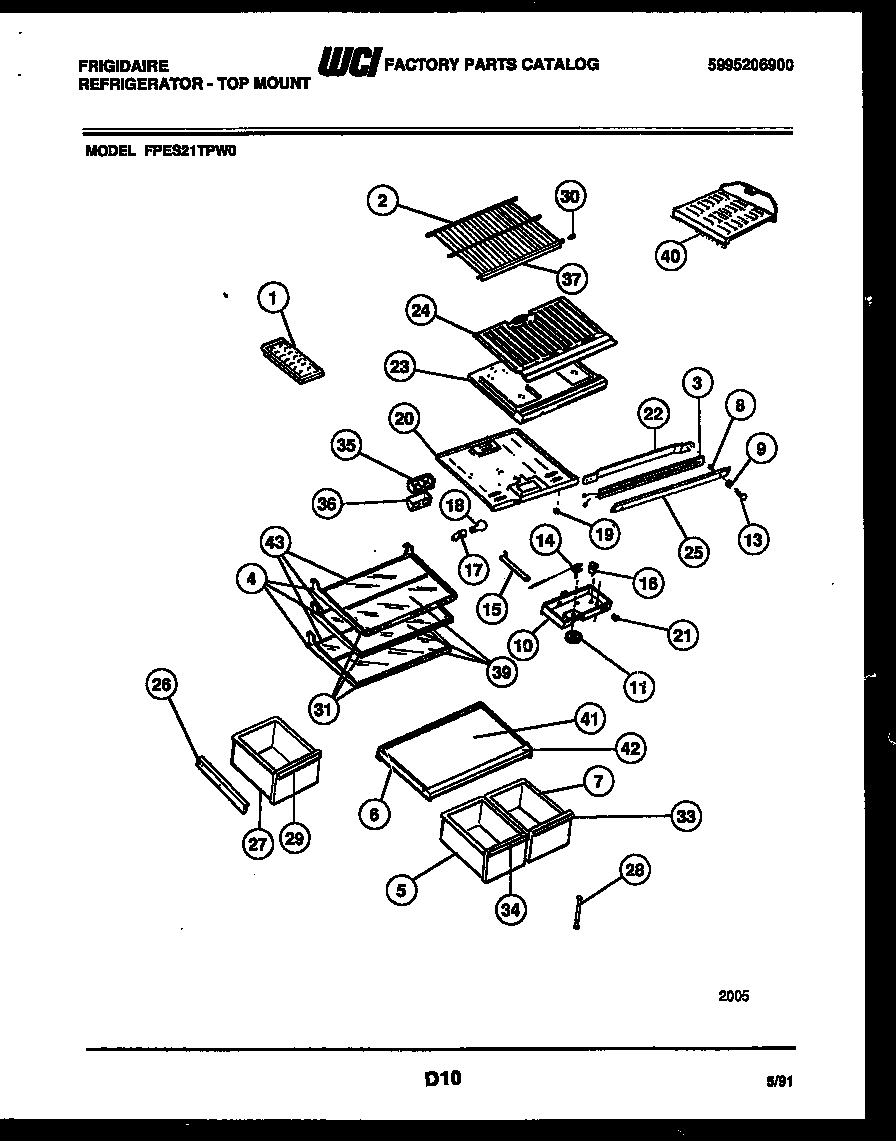

FPES21TPW0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*465185303212918 Frigidaire Refrigerator Cont
1215667501 Frigidaire Refrigerator Ice Tray Primary
2A5304509705 Frigidaire Refrigerator Grommet
2B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303208517
3WCI 5303210351
4AFRAME, MEAT KPR SHLF, CANTILEVER
4FRAME-FULL SHELF, CANTILEVER, (2)
5PAN, CRISPER, LH
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
6WCI 5303019035
7PAN, CRISPER, RH
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10CONTROL BOX
11KNOB, TEMP CONTROL
13WCI 5308012258
14WCI 5303018894
14AWCI 5303001260
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20WCI 3019038
21WCI 5303018896
22WCI 5308010008
23AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
23B3205266 Frigidaire Refrigerator Edge Protector
23WCI 5303019039
24BOTTOM, FREEZER
25WCI 5303200366
26AHANGER-PAN RH (NON-ILLUSTRATED)
26HANGER-PAN LH
26BWCI 08014528
27WCI 3018987
28SUPPORT, COVER
29WCI 5303272530
30END CAP-SHELF,PROTECTOR
31WCI 5303272820
31AWCI 5303209274
33TRIM, CRISPER PAN, RH
34TRIM, CRISPER PAN, LH
35BEXTENSION, AIR DEFLECTOR, WITH INSULATION
35A5303001449 Frigidaire Refrigerator Seal
35DEFLECTRO, AIR, W/SEAL
36WCI 5303001448
37TRIM-FRZR SHELF, FRONT
39SHELF-GLASS, FULL SHELF
40WCI 5318609501
40A5304455650 Frigidaire Refrigerator Screw
41WCI 5303211968
42WCI 3018984
43WCI 5303210045
