FPES3085KFE 03 – BACKGUARD – Aparts

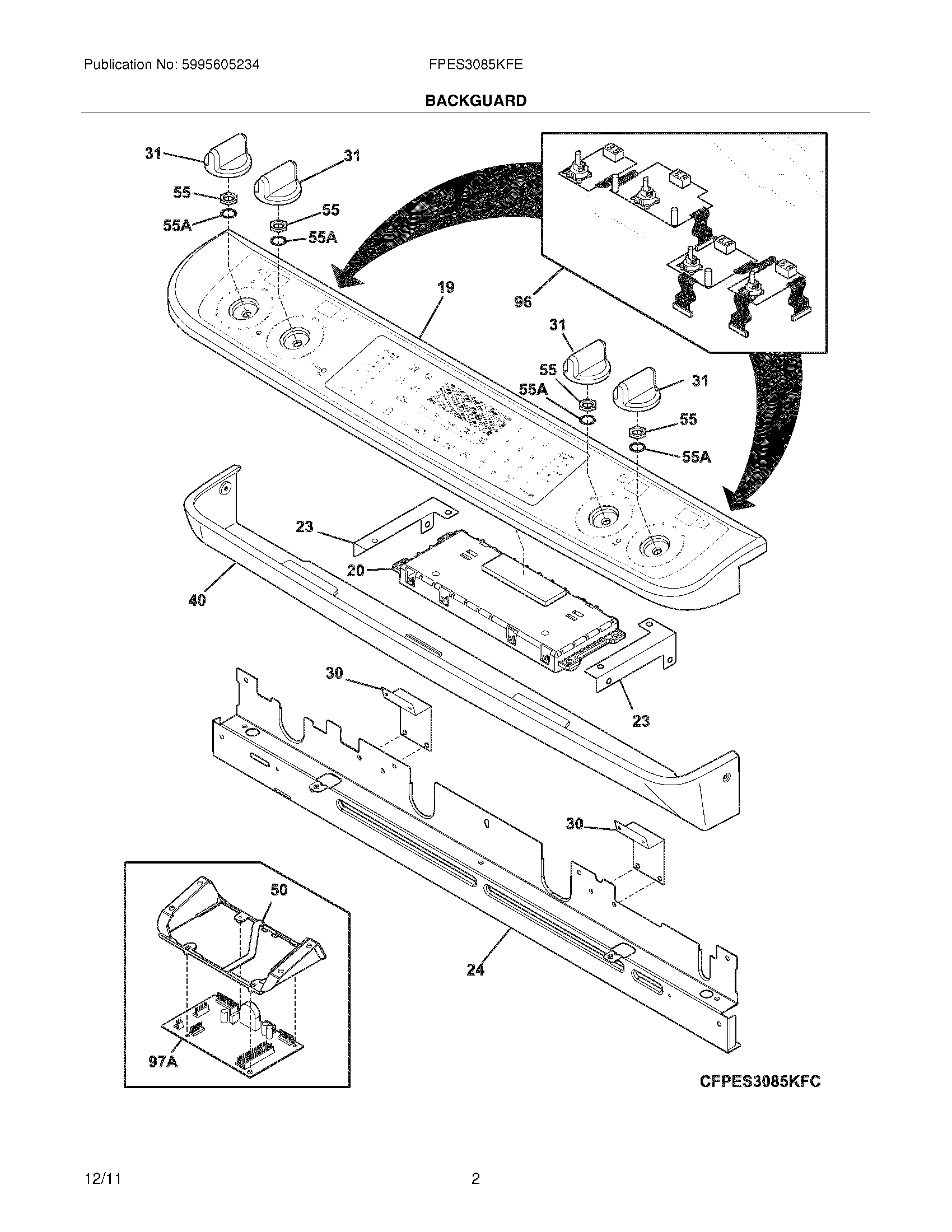

FPES3085KFE 03 – BACKGUARD

Products

Position	Product
NI	5304436875 Frigidaire Oven Screw
NI	WCI 318402398
NI	WCI 318224873
NI	WCI 318578318
NI	5304453707 Frigidaire Oven Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	Screw,No.8-18 x 3/8 ,(10)
19	318922144 Frigidaire Panel Assembly
20	316560143 Frigidaire Controller
23	WCI 318921300
24	WCI 318913116
30	318928502 Frigidaire Oven Bracket
31	WCI 316564406
40	WCI 318912907
50	WCI 318917700
55	316247700 Frigidaire Oven Nut
55A	316247800 Frigidaire Oven Washer
96	WCI 318411401
97A	316442062 Frigidaire Oven Board
