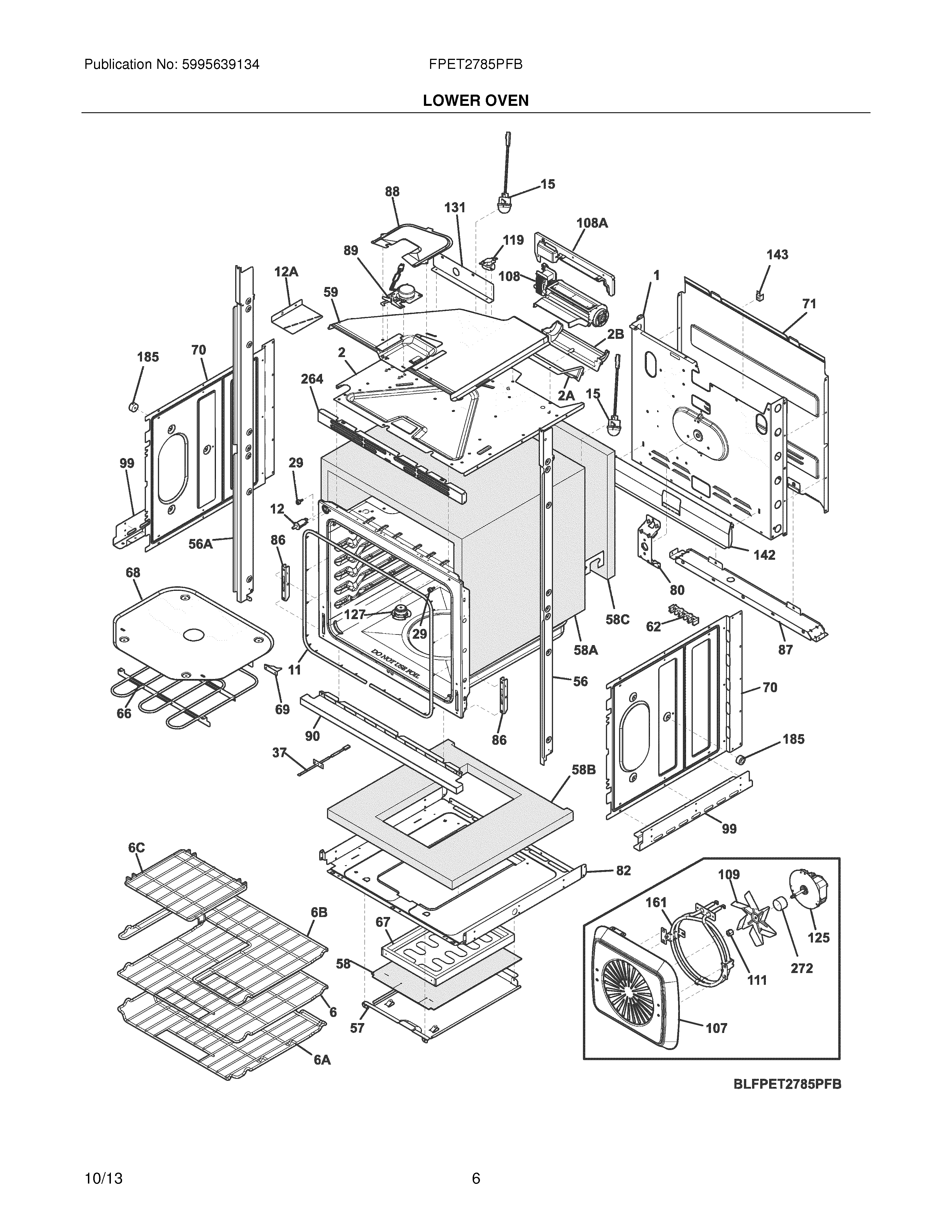

FPET2785PFB 07 – LOWER OVEN

FPET2785PFB 07 – LOWER OVEN

Written by

in

FPET2785PFB 07 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NI316418900 Frigidaire Oven Screw
NI316021119 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIWCI 318231870
NI5303323130 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NI139022101 Frigidaire Insulation
NI807181801 Frigidaire Wiring Harness
NI807460602 Frigidaire Oven Harness
NI5303289910 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
1139003805 Frigidaire Panel
2139027805 Frigidaire Shield
2A139015900 Frigidaire SHIELD
2B139038901 Frigidaire Oven Housing
65304514984 Frigidaire Rack
6BWCI 139012900
6CRACK INSERT, HALF RACK
6A139012500 Frigidaire Oven Rack
11807545501 Frigidaire Oven Seal
12A807641201 Frigidaire Shield
12316445501 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
56A318903677 Frigidaire Oven Trim
56318903676 Frigidaire Oven Trim
57139021200 Frigidaire PANEL
58139022100 Frigidaire Insulation
58C139021401 Frigidaire INSULATION
58A139001701 Frigidaire INSULATION
58B139021501 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304523477 Frigidaire Element
67318902502 Frigidaire Oven Element
68WCI 808807902
69WCI 139022500
70139000601 Frigidaire Oven Shield
71139022000 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82139003101 Frigidaire Shield
86318561100 Frigidaire Receptacle
87139021900 Frigidaire Bracket
885304506963 Frigidaire Cover
89139021302 Frigidaire Oven Motor
90WCI 318259863
99318256201 Frigidaire Oven Bracket
107139013903 Frigidaire Oven Vent Hood Cover
108WCI 139038301
108139015300 Frigidaire Oven Bracket
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008502 Frigidaire Oven Motor Assembly
127139042600 Frigidaire Tube Assembly
131WCI 139015200
142WCI 139021800
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139013501 Frigidaire Trim
272139021700 Frigidaire Oven Tube
