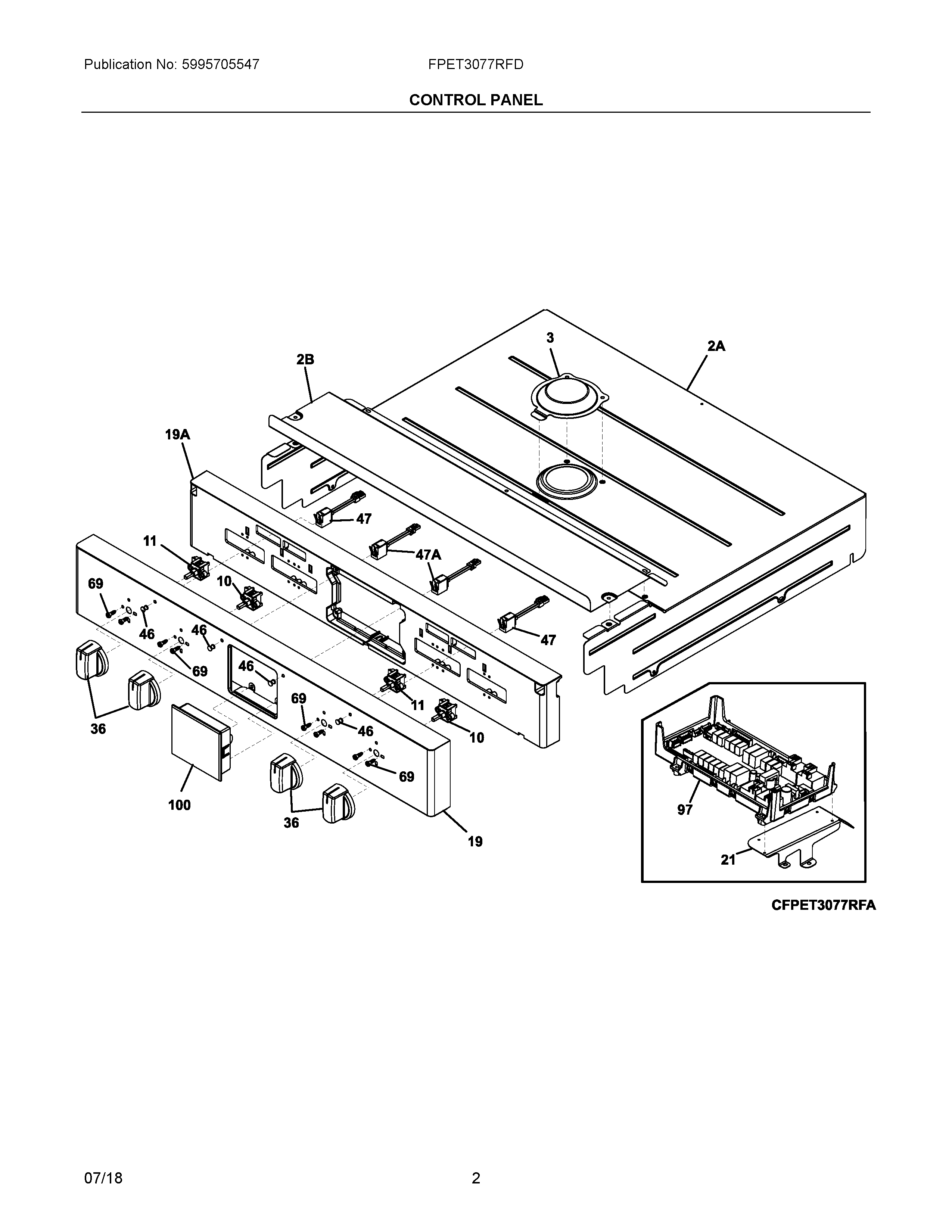

FPET3077RFD 02 – CONTROL PANEL

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304517676 Frigidaire Harness
NI	5304500624 Frigidaire Oven Harness
NI	5304514832 Frigidaire Oven Harness
NIA	5303323129 Frigidaire Oven Screw
NI	5304517673 Frigidaire Oven Harness
NI	316021109 Frigidaire Oven Screw
2B	5304520853 Frigidaire Cover
2A	808651402 Frigidaire Shield
3	808963801 Frigidaire Shield
10	808843102 Frigidaire Oven Switch
11	5304493649 Frigidaire Oven Range Wall Potentiometer
19A	5304500594 Frigidaire Control Panel
19	CONTROL PANEL, ASSEMBLY, STAINLESS, OUTER
21	5304520558 Frigidaire Bracket
36	5304500593 Frigidaire Oven Knob Assembly
46	316557300 Frigidaire Range Indicator Light Lens
47	316022508 Frigidaire Light Assembly
47A	316022510 Frigidaire Light/Lamp
69	5303288565 Frigidaire Screw
97	316475806 Frigidaire Oven Assembly-Wall Board
100	808751527 Frigidaire Control Assembly
