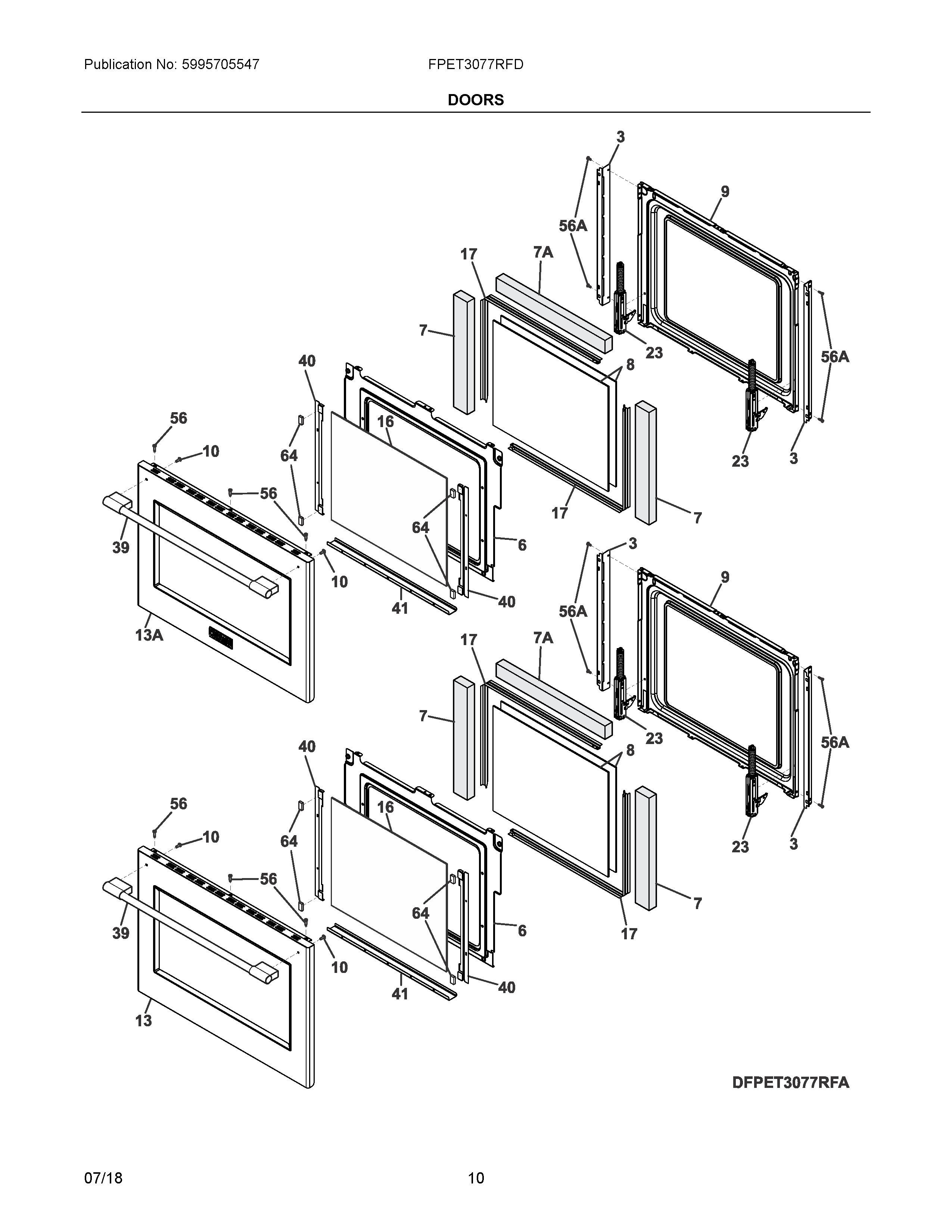

FPET3077RFD 05 – DOORS

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
NIA	316008401 Frigidaire Washer P-1
3	5304520787 Frigidaire Trim
6	808474502 Frigidaire Shield
7A	807887501 Frigidaire Insulation
7	807887502 Frigidaire Insulation
8	316502502 Frigidaire Oven Glass
9	808474610 Frigidaire Oven Liner
10	5303310510 Frigidaire Oven Screw
13A	5304515578 Frigidaire Range Stainless Outer Door Assembly
13	139099648 Frigidaire Door Assembly
16	316502601 Frigidaire Oven Glass
17	5304503172 Frigidaire Door Glass Spacer
23	139010306 Frigidaire Oven Hinge
39	808816703 Frigidaire Oven Handle
41	SUPPORT, GLASS
56	5303324184 Frigidaire Wall Oven Range Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
