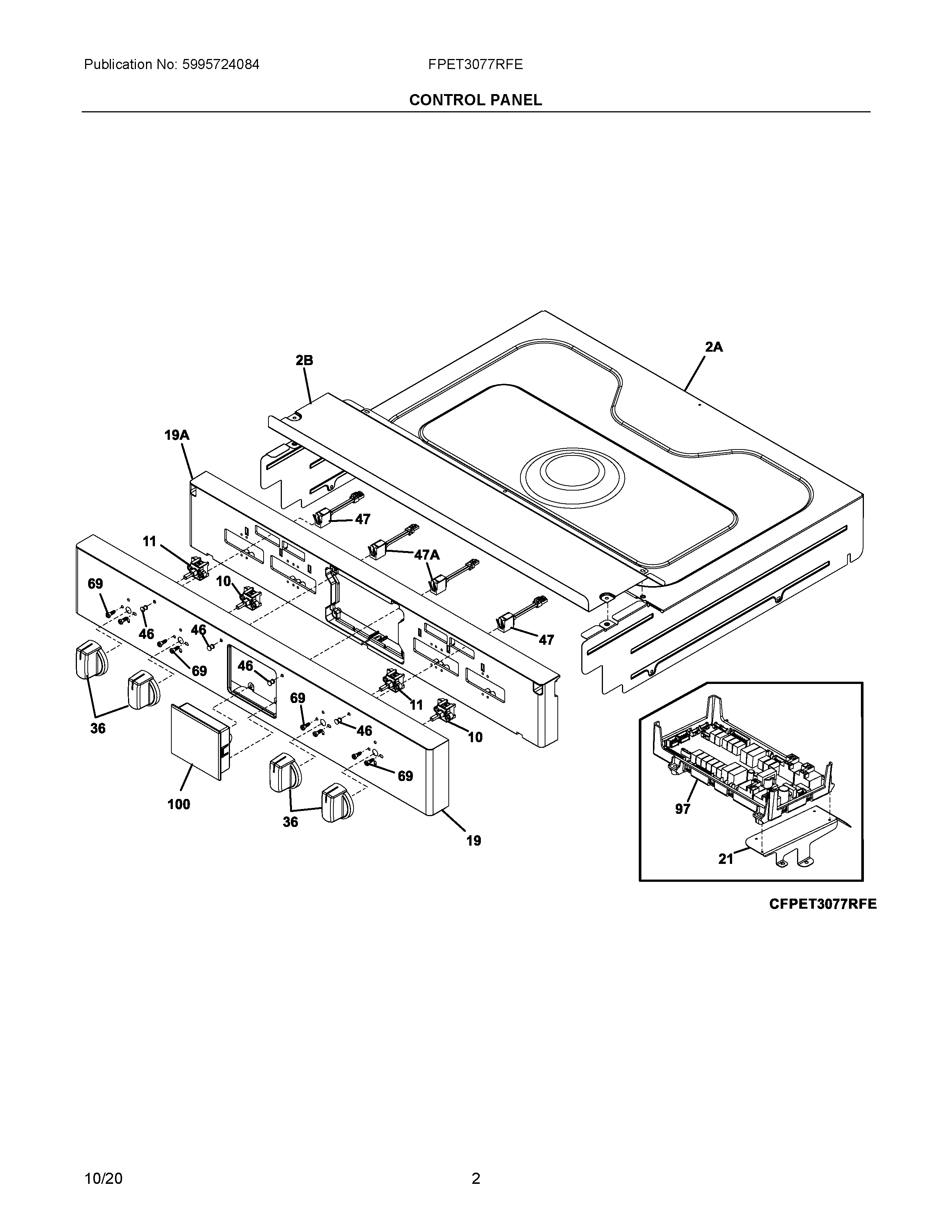

FPET3077RFE 02 – CONTROL PANEL

FPET3077RFE 02 – CONTROL PANEL

Written by

in

FPET3077RFE 02 – CONTROL PANEL

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304517676 Frigidaire Harness
NI5304500624 Frigidaire Oven Harness
NI5304514832 Frigidaire Oven Harness
NIA5303323129 Frigidaire Oven Screw
NI5304517673 Frigidaire Oven Harness
NI316021109 Frigidaire Oven Screw
2A5304521623 Frigidaire Shield Assembly
2B5304520853 Frigidaire Cover
10808843102 Frigidaire Oven Switch
115304493649 Frigidaire Oven Range Wall Potentiometer
19A5304500594 Frigidaire Control Panel
19CONTROL PANEL, ASSEMBLY, STAINLESS, OUTER
215304520558 Frigidaire Bracket
365304500593 Frigidaire Oven Knob Assembly
46316557300 Frigidaire Range Indicator Light Lens
47A316022510 Frigidaire Light/Lamp
47316022508 Frigidaire Light Assembly
695303288565 Frigidaire Screw
97316475806 Frigidaire Oven Assembly-Wall Board
100808751527 Frigidaire Control Assembly
