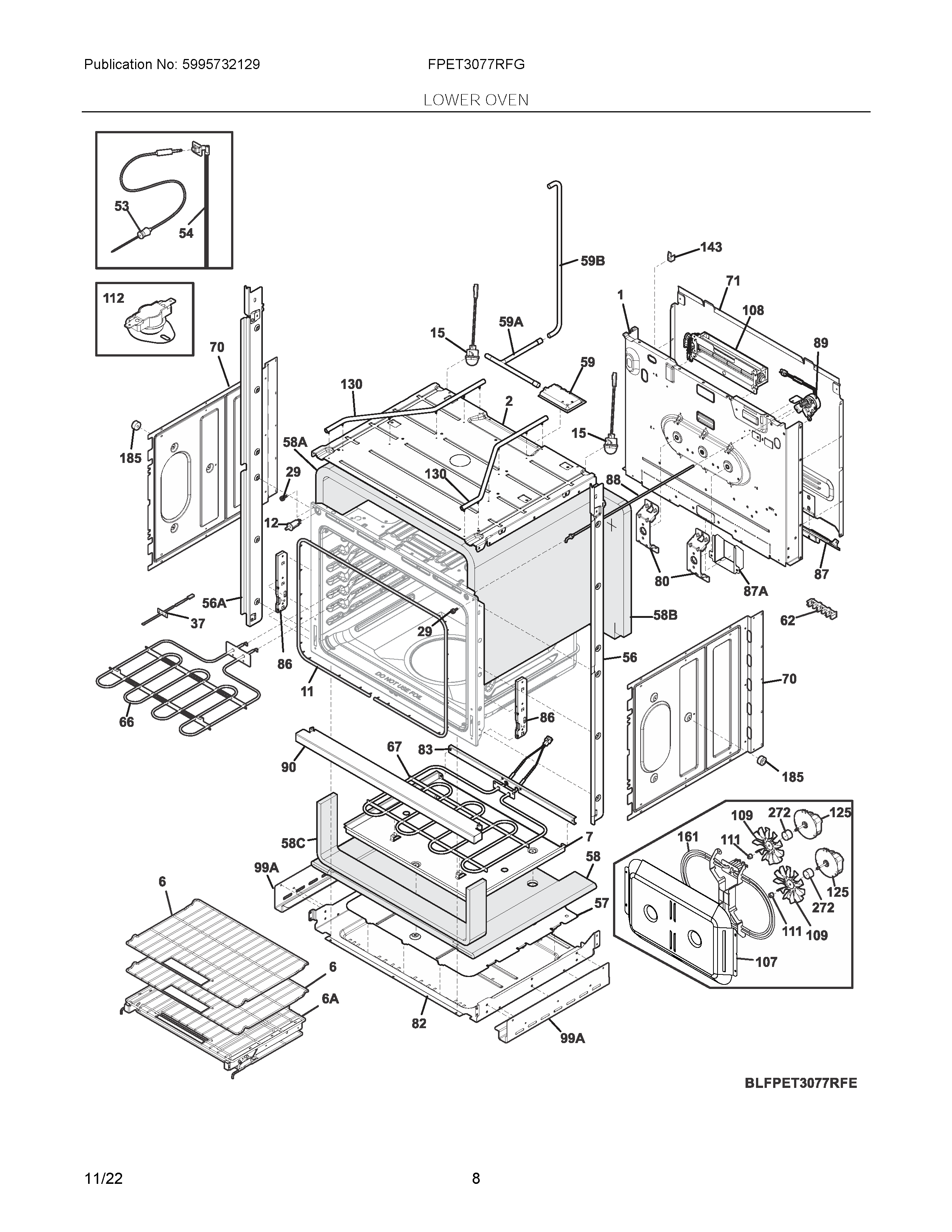

FPET3077RFG 04 – LOWER OVEN

FPET3077RFG 04 – LOWER OVEN

Written by

in

FPET3077RFG 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIAWCI 318579001
NI5304506955 Frigidaire Harness Assembly
NIA316418900 Frigidaire Oven Screw
NI5304518440 Frigidaire Harness
NI5304470882 Frigidaire Oven Screw
NIAA5304500643 Frigidaire Bracket
NIA5304514913 Frigidaire Harness
NI807597603 Frigidaire Oven Screw
NIA139022101 Frigidaire Insulation
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5303289910 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NI316021109 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NI5303324184 Frigidaire Wall Oven Range Screw
NIA316001017 Frigidaire Screw
NIA318167300 Frigidaire Clip
15304525130 Frigidaire Panel
2808651302 Frigidaire Shield
65304514983 Frigidaire Oven Rack
6A5304518864 Frigidaire Rack Assembly
7BOX, BAKE ELEMENT
11139036700 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56A5304500599 Frigidaire Oven Trim
565304500600 Frigidaire Oven Trim
575304521752 Frigidaire Shield
58808816501 Frigidaire Insulation
58B808905101 Frigidaire Insulation
58C807887503 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
59808931403 Frigidaire Vent Box Assembly
59BTUBE, CONNECTOR, CATALYST
59ATUBE, EXTENSION, CATALYST
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304516286 Frigidaire Oven Heating Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
86139026900 Frigidaire Receptacle
87A5304520866 Frigidaire Shield
875304520557 Frigidaire Bracket
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
90TRIM, VENT, STAINLESS, LOWER
99A5304514974 Frigidaire Support
1075304500627 Frigidaire Oven Cover
108808963704 Frigidaire Wall Oven Blower Assembly
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1125304494446 Frigidaire Oven Switch
125139008504 Frigidaire Oven Motor
130808931801 Frigidaire Seal
143318172904 Frigidaire Bracket
1615304500622 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
272139021700 Frigidaire Oven Tube
