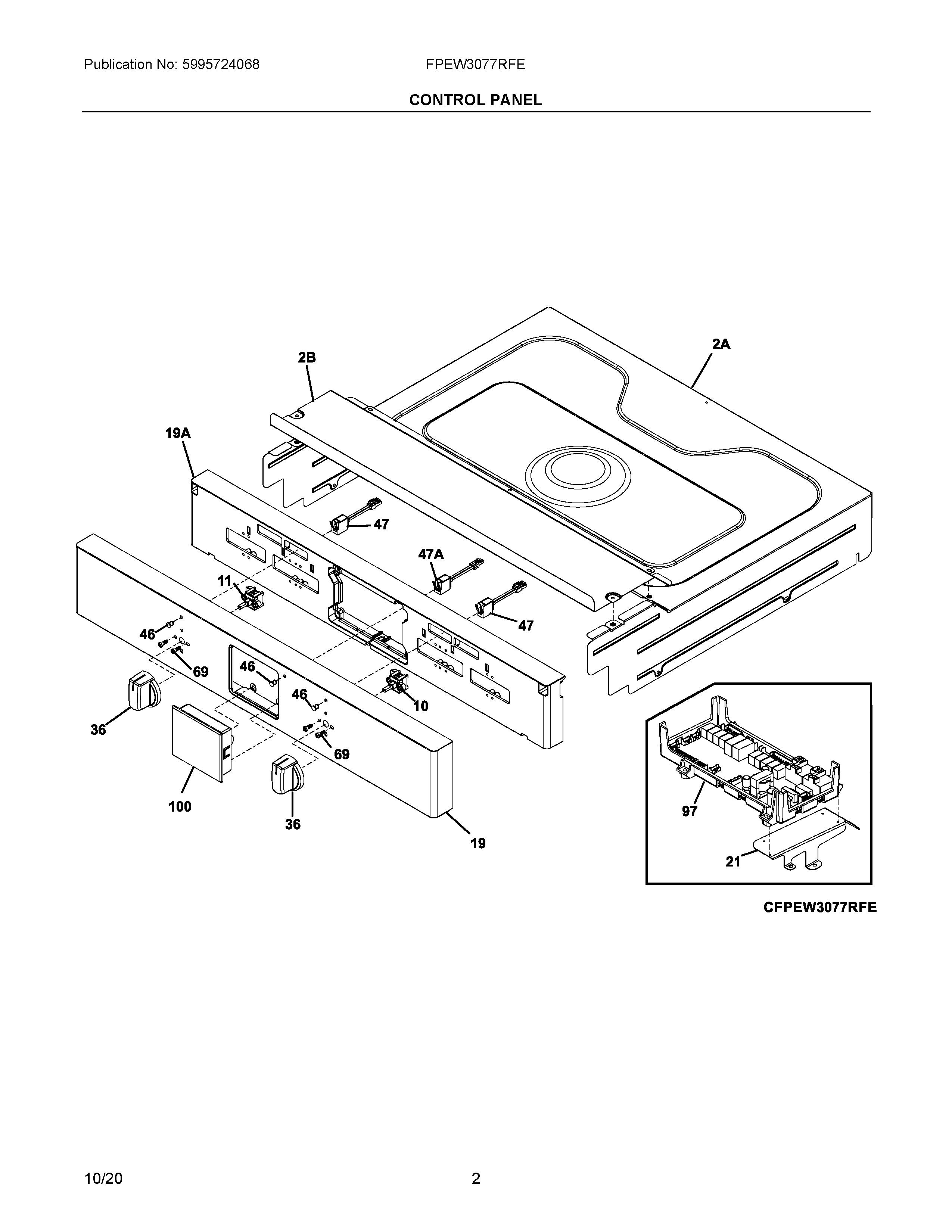

FPEW3077RFE 02 – CONTROL PANEL

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 5304517679
NI	5304517673 Frigidaire Oven Harness
NI	5304514832 Frigidaire Oven Harness
NIA	5303323129 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
2A	5304521623 Frigidaire Shield Assembly
2B	5304520853 Frigidaire Cover
10	808843102 Frigidaire Oven Switch
11	5304493649 Frigidaire Oven Range Wall Potentiometer
19	WCI 5304500602
19A	5304500594 Frigidaire Control Panel
21	5304520558 Frigidaire Bracket
36	5304500593 Frigidaire Oven Knob Assembly
46	316557300 Frigidaire Range Indicator Light Lens
47A	316022510 Frigidaire Light/Lamp
47	316022508 Frigidaire Light Assembly
69	5303288565 Frigidaire Screw
97	316472807 Frigidaire Range Circuit Board Assembly
100	808751526 Frigidaire Control Assembly
