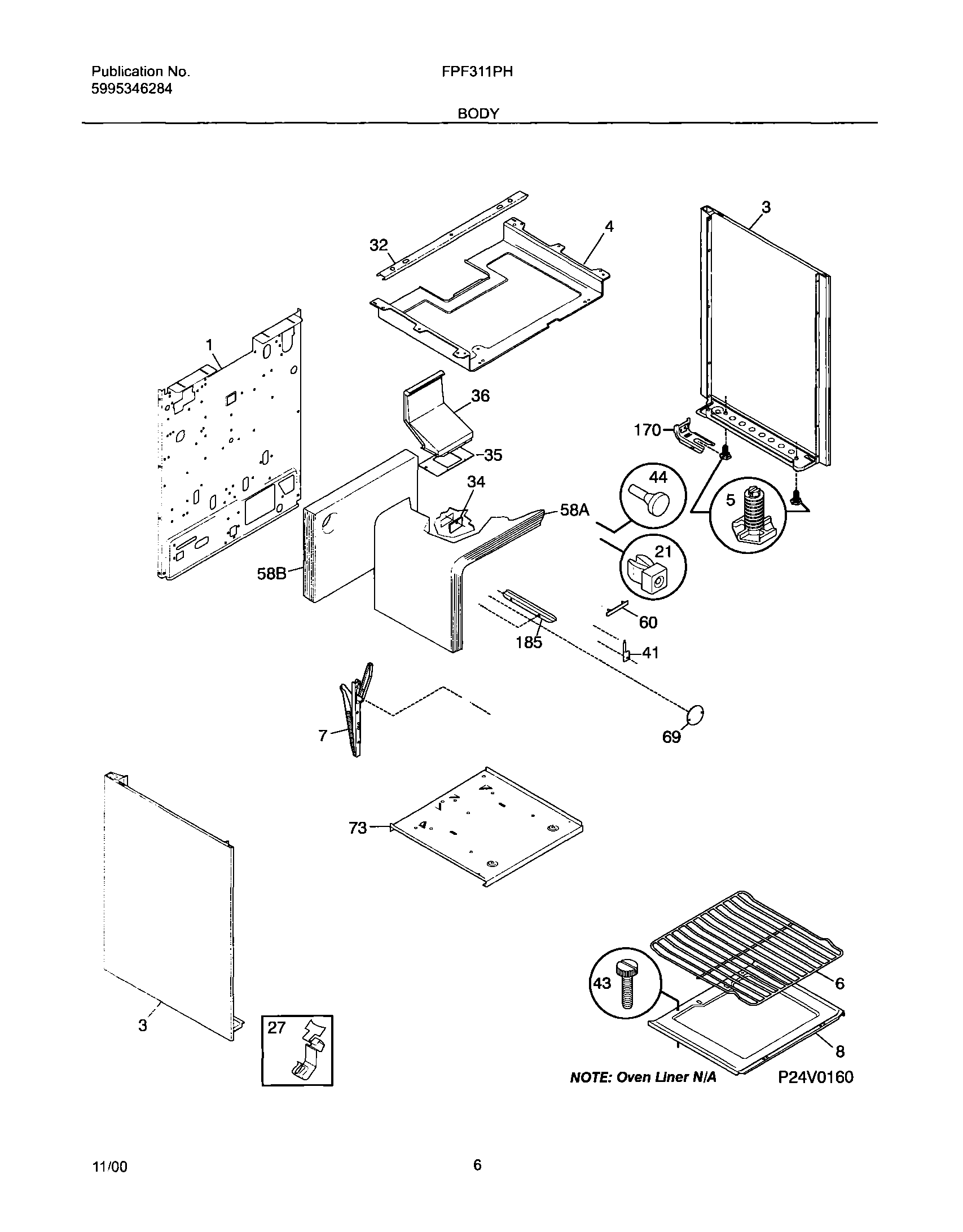

FPF311PHSA 05 – BODY

Products

Position	Product
NI	WCI 316073400
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	316064600 Frigidaire Oven Support
NI	WCI 5303280311
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
1	WCI 316029416
3	WCI 316081035
3	WCI 316081034
4	WCI 316067206
5	WCI 316129200
6	316067902 Frigidaire Oven Rack
7	WCI 316007007
8	PANEL-OVEN BOTTOM
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	WCI 316107503
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	316204402 Frigidaire Oven Flue
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
69	3051218 Frigidaire Oven Plate
73	WCI 316109902
170	316116000 Frigidaire Screw
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316112500 Frigidaire Oven Template
185	316112900 Frigidaire SHIELD
