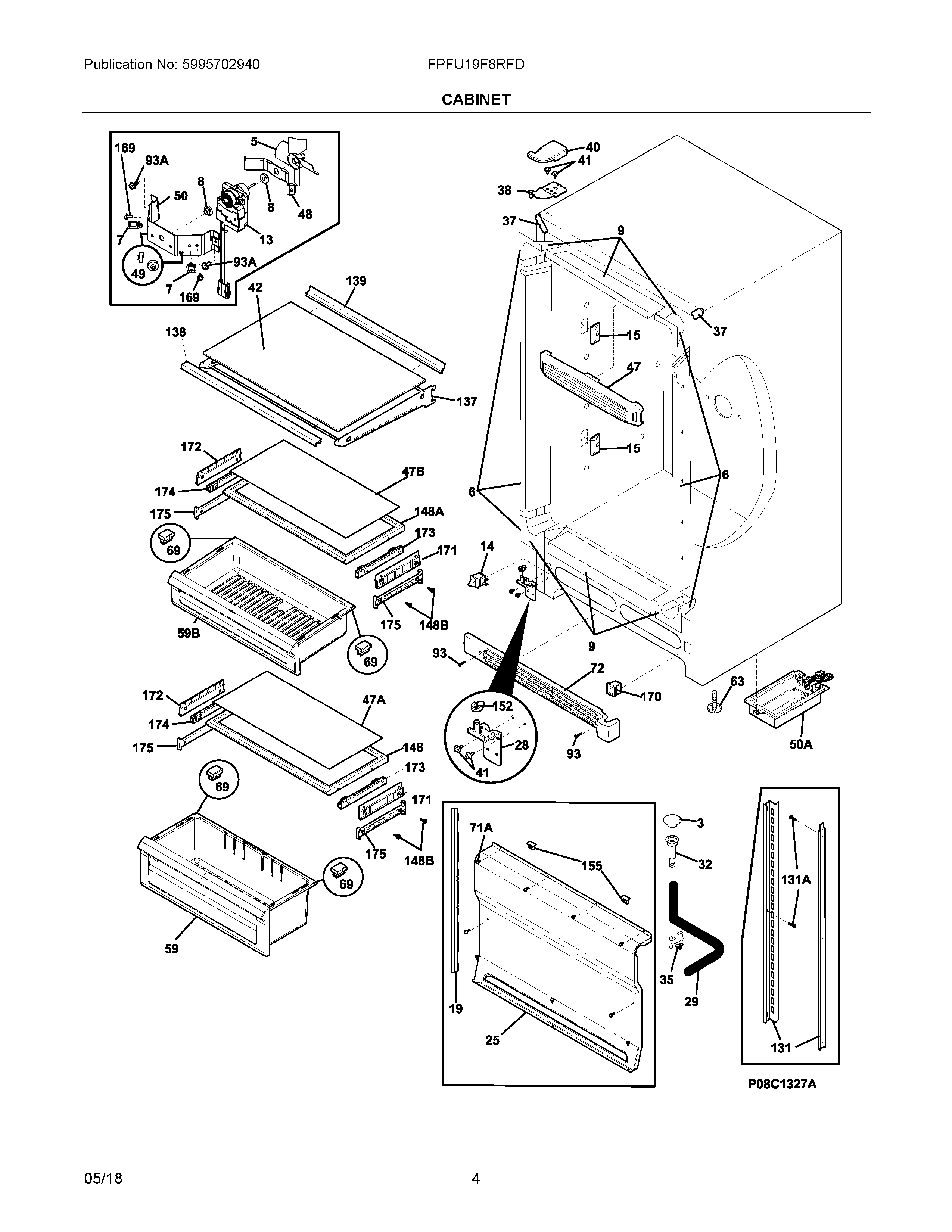

FPFU19F8RFD 03 – CABINET

FPFU19F8RFD 03 – CABINET

Written by

in

FPFU19F8RFD 03 – CABINET

Products

PositionProduct
NI297048000 Frigidaire Refrigerator Screw
NI5304498525 Frigidaire Service Data Sheet
NIBBracket,RH leg levelor
NIABracket,LH leg levelor
NI216036601 Frigidaire Refrigerator Screw
NIA297001704 Frigidaire Refrigerator Insulation
NI297165400 Frigidaire Refrigerator Access Cover
NI216337701 Frigidaire Refrigerator Screw
NIWCI TRIMKITEZ2
NIWCI TRIMKITEZ1
NIWCI 5304508296
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
7WCI 216327800
85304495760 Frigidaire Refrigerator Bushing
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
135304504914 Frigidaire Refrigerator Motor
14216822900 Frigidaire Refrigerator Switch
15LIGHT-LED
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
21A218362501 Frigidaire Refrigerator Screw
25COVER-EVAPORATOR
26EWCI 297099400
28297302513 Frigidaire Refrigerator Hinge-Lower
295304510353 Frigidaire Refrigerator Hose
30BREAKER, CORNERS
31297165800 Frigidaire Refrigerator Drain Pan
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, LH
40COVER-HINGE, GRAY, LH
41240578902 Frigidaire Screw Mounting Hinge
42297265900 Frigidaire Refrigerator Glass Shelf
47B297102704 Frigidaire Glass Crisper Cover
47A297102705 Frigidaire Glass Cover Crisper
47297192903 Frigidaire Refrigerator Baffle
48297436400 Frigidaire Refrigerator Bracket-Fan Motor
49297436200 Frigidaire Grommet
50216394050 Frigidaire Refrigerator Bracket
50ABOARD-LED POWER
59A11791811 Frigidaire Crisper Drawer
59B297292302 Frigidaire Refrigerator Deli Drawer
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
69WCI 297297300
71AScrew,8-18AB x.470 QX
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
131ASCREW, TH, 8-18X.470 AB QX, WHITE, (6)
131297130200 Frigidaire CHANNEL-SHELF MTG
137297050600 Frigidaire Refrigerator Frame-Shelf
138WCI 297261400
139WCI 297261500
148B297142600 Frigidaire Refrigerator/Freezer Screw
148WCI 297271700
148AWCI 297271701
1515304497788 Frigidaire Refrigerator Controller
152BEARING-HINGE
155WCI 5303313703
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304515502 Frigidaire Refrigerator Slide
1745304515501 Frigidaire Refrigerator Slide
175297099500 Frigidaire Refrigerator Support
