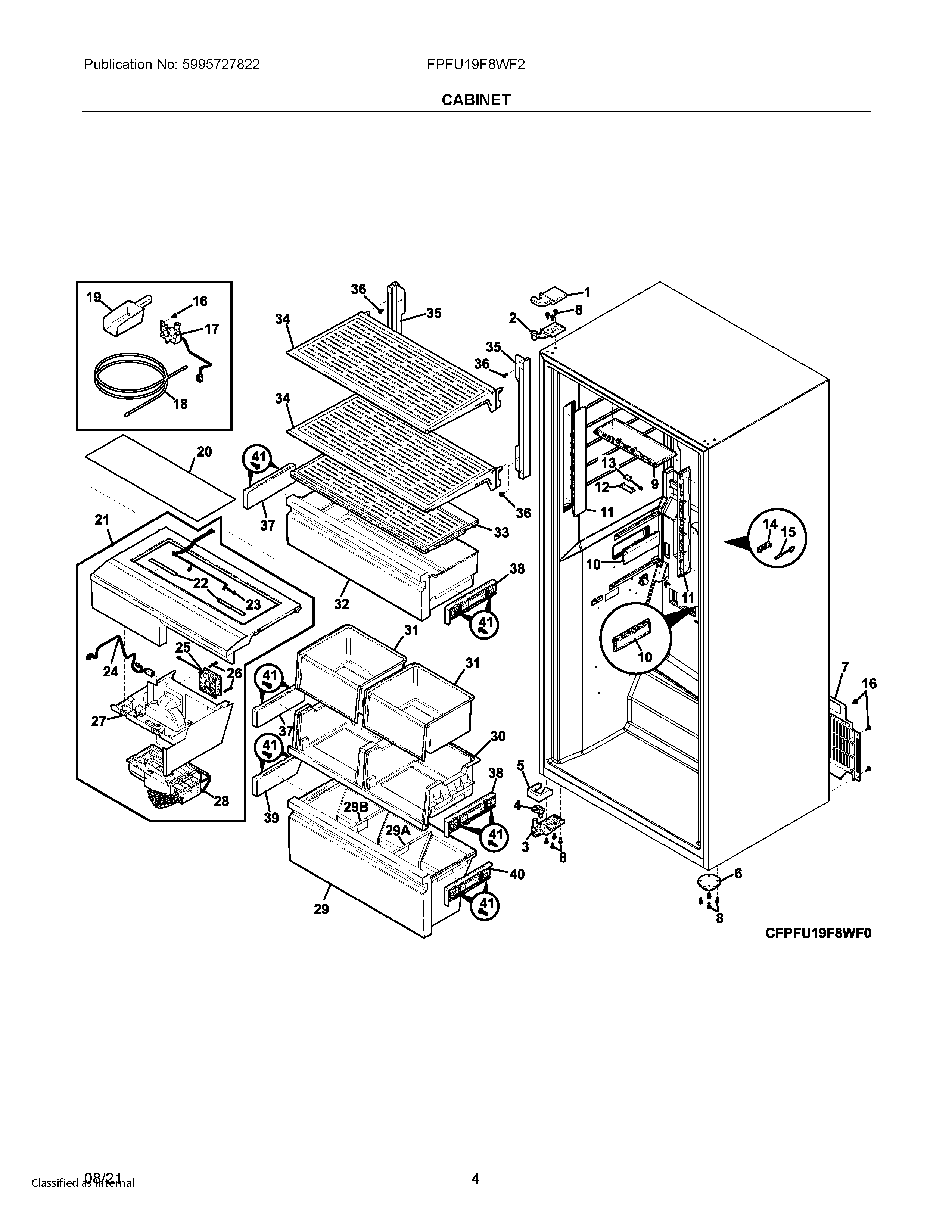

FPFU19F8WF2 03 – CABINET

FPFU19F8WF2 03 – CABINET

Written by

in

FPFU19F8WF2 03 – CABINET

Products

PositionProduct
NIA297350900 Frigidaire Refrigerator Gasket
15304524639 Frigidaire Refrigerator Cover
25304524637 Frigidaire Refrigerator Hinge
45304525229 Frigidaire Refrigerator Hinge Assembly
55304525228 Frigidaire Refrigerator Cover
65304528813 Frigidaire Refrigerator Base
6B5304528815 Frigidaire Leg/Foot Levelling
6A5304528814 Frigidaire Nut
75304525858 Frigidaire Refrigerator Cover
85304522279 Frigidaire Screw
9LAMP
105304524656 Frigidaire Refrigerator Assembly-Light
115304524658 Frigidaire Refrigerator Light Assembly
125304524761 Frigidaire Refrigerator Cover
135304527992 Frigidaire Freezer Wire Harness with Reed Switch
145304524759 Frigidaire Refrigerator Cover
155303918775 Frigidaire Refrigerator Thermistor
175304520540 Frigidaire Water Valve Single Solenoid
185304536764 Frigidaire Hose Assemblyy
19SCOOP, ICE
205304524780 Frigidaire Refrigerator Glass
215304524715 Frigidaire Refrigerator Control Cover Assembly
225304524650 Frigidaire Refrigerator Board Pc
23HARNESS
245304524779 Frigidaire Harness
255304524796 Frigidaire Refrigerator Motor
26241953905 Frigidaire Screw
275304524652 Frigidaire Refrigerator Housing
28ICE MAKER
295304524710 Frigidaire Refrigerator Assembly-Drawer
29B5304525862 Frigidaire Divider
29A5304525861 Frigidaire Divider
305304524708 Frigidaire Refrigerator Shelf Assembly
315304524711 Frigidaire Refrigerator Basket
325304524702 Frigidaire Refrigerator Drawer Assembly
33ASSEMBLY-CRISPER CO
345304524671 Frigidaire Shelf Assembly
355304524841 Frigidaire Refrigerator Rail Assembly
365304519765 Frigidaire Refrigerator Screw
375304524850 Frigidaire Refrigerator Slide Assembly
385304524849 Frigidaire Refrigerator Slide Assembly
395304524852 Frigidaire Refrigerator Slide Assembly
405304524851 Frigidaire Refrigerator Slide Assembly
415304524845 Frigidaire Refrigerator Screw
45241500305 Frigidaire Refrigerator Screw
