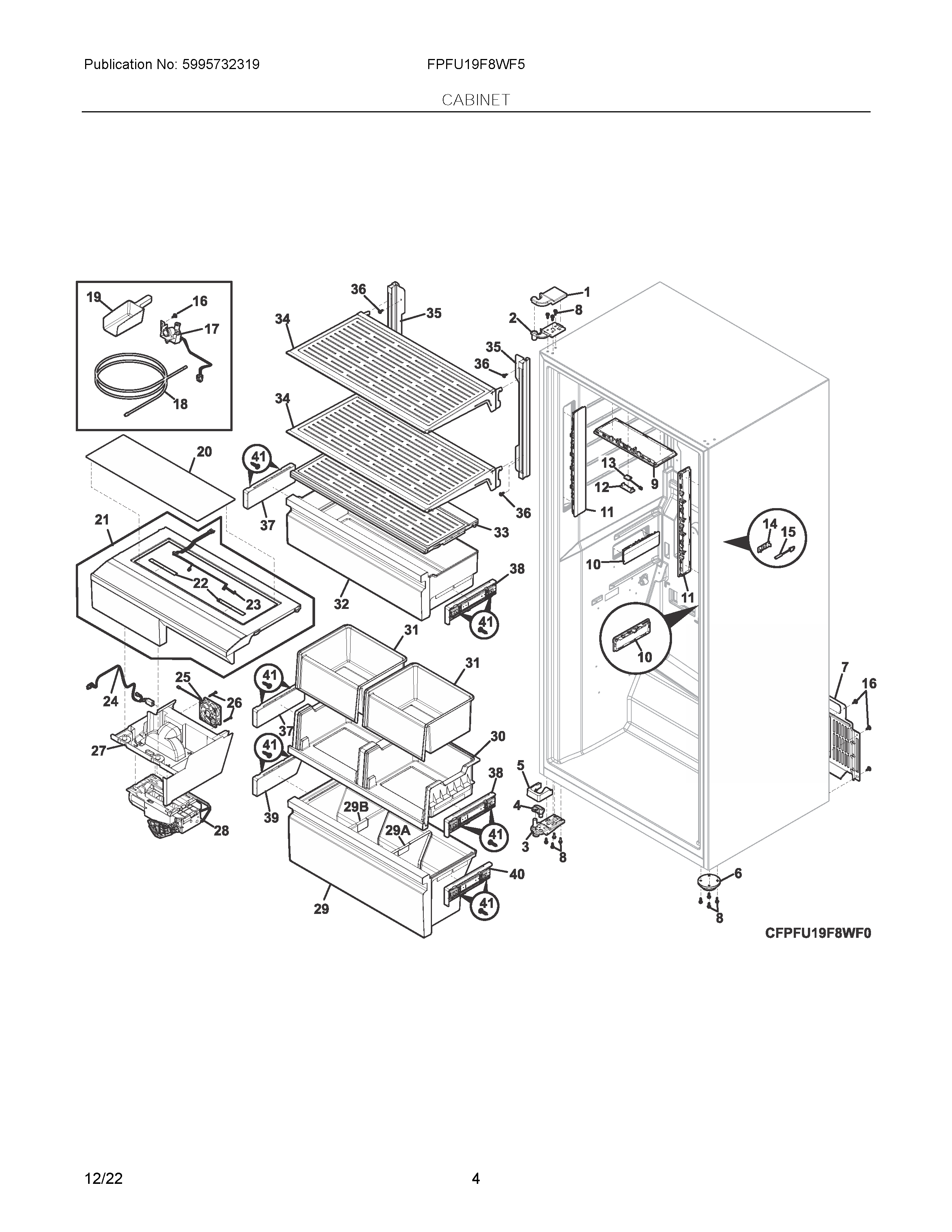

FPFU19F8WF5 03 – CABINET

FPFU19F8WF5 03 – CABINET

Written by

in

FPFU19F8WF5 03 – CABINET

Products

Position	Product
NIA	297350900 Frigidaire Refrigerator Gasket
NI	5304523801 Frigidaire Screw Assembly
NI	WCI 5304534034
NIA	5304522179 Frigidaire Tape
NI	241500305 Frigidaire Refrigerator Screw
1	5304524639 Frigidaire Refrigerator Cover
2	5304524637 Frigidaire Refrigerator Hinge
4	5304525229 Frigidaire Refrigerator Hinge Assembly
5	5304525228 Frigidaire Refrigerator Cover
6B	5304528815 Frigidaire Leg/Foot Levelling
6A	5304528814 Frigidaire Nut
6	5304528813 Frigidaire Refrigerator Base
7	5304525858 Frigidaire Refrigerator Cover
8	5304522279 Frigidaire Screw
9	LAMP
10	5304524656 Frigidaire Refrigerator Assembly-Light
11A	241953905 Frigidaire Screw
11	5304524658 Frigidaire Refrigerator Light Assembly
12	5304524761 Frigidaire Refrigerator Cover
13	5304527992 Frigidaire Freezer Wire Harness with Reed Switch
14	5304524759 Frigidaire Refrigerator Cover
15	5303918775 Frigidaire Refrigerator Thermistor
17	5304520540 Frigidaire Water Valve Single Solenoid
18	5304536764 Frigidaire Hose Assemblyy
19	SCOOP, ICE
20	5304524780 Frigidaire Refrigerator Glass
21	5304524715 Frigidaire Refrigerator Control Cover Assembly
22	5304524650 Frigidaire Refrigerator Board Pc
23	HARNESS
24	5304524779 Frigidaire Harness
25	5304524796 Frigidaire Refrigerator Motor
27	5304524652 Frigidaire Refrigerator Housing
28A	5304523741 Frigidaire Evaporator Fan Motor Assembly
28	ICE MAKER
29B	5304525862 Frigidaire Divider
29A	5304525861 Frigidaire Divider
29	5304524710 Frigidaire Refrigerator Assembly-Drawer
30	5304524708 Frigidaire Refrigerator Shelf Assembly
31	5304524711 Frigidaire Refrigerator Basket
32	5304524702 Frigidaire Refrigerator Drawer Assembly
33	ASSEMBLY-CRISPER CO
34	5304524671 Frigidaire Shelf Assembly
35	5304524841 Frigidaire Refrigerator Rail Assembly
36	240433204 Frigidaire Refrigerator Screw
36A	5304519765 Frigidaire Refrigerator Screw
37	5304524850 Frigidaire Refrigerator Slide Assembly
38	5304524849 Frigidaire Refrigerator Slide Assembly
39	5304524852 Frigidaire Refrigerator Slide Assembly
40	5304524851 Frigidaire Refrigerator Slide Assembly
41	5304524845 Frigidaire Refrigerator Screw
