FPFU19F8WF6 04 – SYSTEM

FPFU19F8WF6 04 – SYSTEM

Written by

in

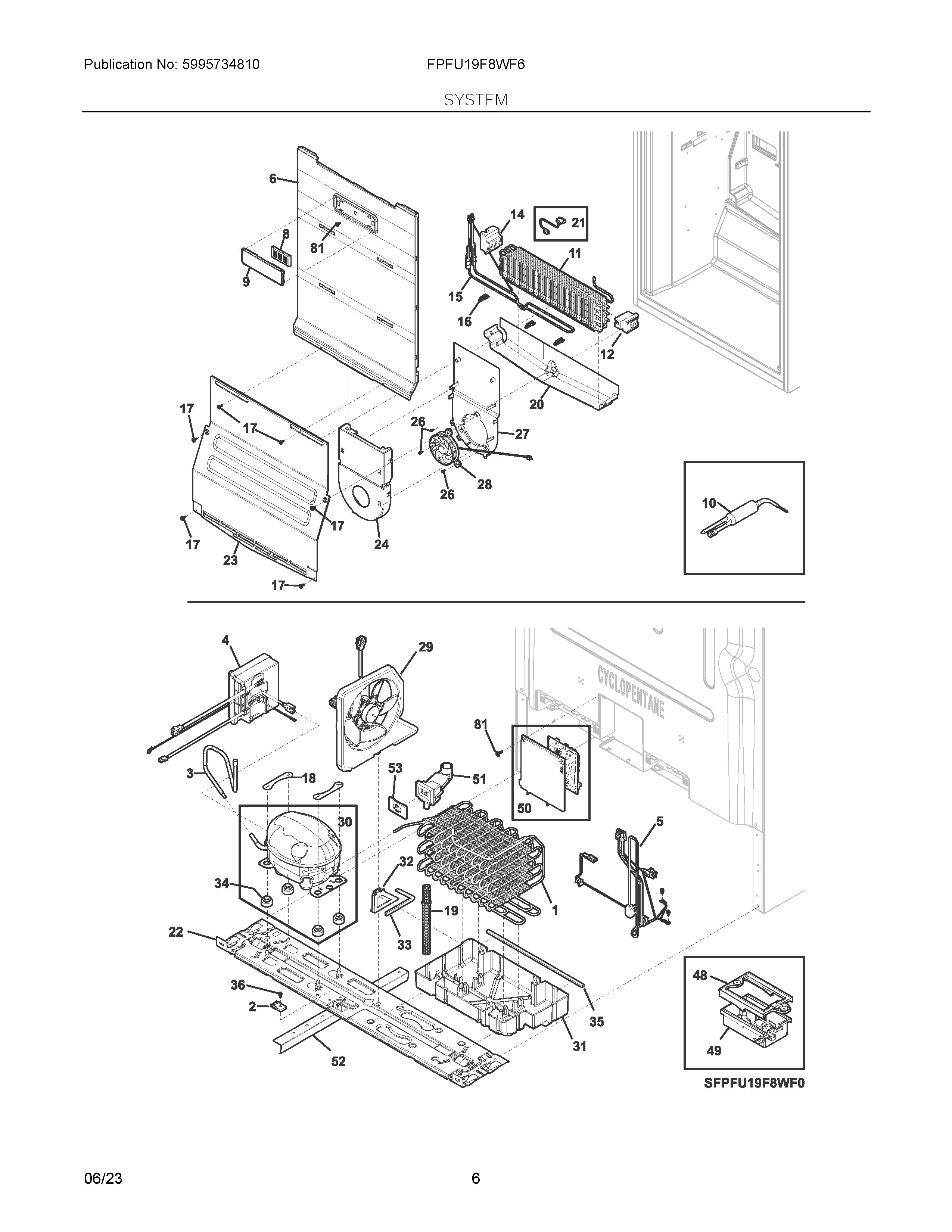

FPFU19F8WF6 04 – SYSTEM

Products

Position	Product
NI	241500305 Frigidaire Refrigerator Screw
NI	5304523801 Frigidaire Screw Assembly
NI	5304455650 Frigidaire Refrigerator Screw
NI	5304464772 Frigidaire Refrigerator Wire Tie
1	5304533258 Frigidaire Condenser
2	5304456288 Frigidaire Refrigerator Clamp
3	5304519693 Frigidaire Tube
4	5304532190 Frigidaire Refrigerator Inverter
5	5304532290 Frigidaire Harness
6	5304528047 Frigidaire Refrigerator Cover Assembly
8	PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
9	5304524695 Frigidaire Refrigerator Cover
11	5304523830 Frigidaire Refrigerator Evaporator
12	5304524954 Frigidaire Refrigerator Support
14	5304523832 Frigidaire Support
15	5304524953 Frigidaire Refrigerator Heater
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	5304523738 Frigidaire Refrigerator Screw
18	5304524607 Frigidaire Clamp
19	5304525042 Frigidaire Refrigerator Drain Tube
20	5304524755 Frigidaire Trough
21	5304524828 Frigidaire Refrigerator Harness Assembly
22	5304524791 Frigidaire Refrigerator Base Assembly
23	5304524719 Frigidaire Refrigerator Cover Assembly
24	5304528048 Frigidaire Refrigerator Cover Assembly
26	240569202 Frigidaire Refrigerator Screw
27	5304524782 Frigidaire Bracket
28	5304523741 Frigidaire Evaporator Fan Motor Assembly
29	5304535399 Frigidaire Condenser Fan Shroud Assembly
30A	GROMMET, CMPRSR MTG, 23
30	5304530136 Frigidaire Refrigerator Compressor
31A	5304519744 Frigidaire Refrigerator Tape
31	5304523709 Frigidaire Refrigerator Pan
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
35	5304523724 Frigidaire Seal
36	240433204 Frigidaire Refrigerator Screw
48	5304524865 Frigidaire Frame
49	5304524866 Frigidaire Refrigerator PC Board
50	5304536820 Frigidaire Main P Assembly ERF2004
51	5304530111 Frigidaire Refrigerator Drain Jumper
52	BAFFLE, DIVIDER
53	COVER, DRAIN JUMPER
81	5304519765 Frigidaire Refrigerator Screw
