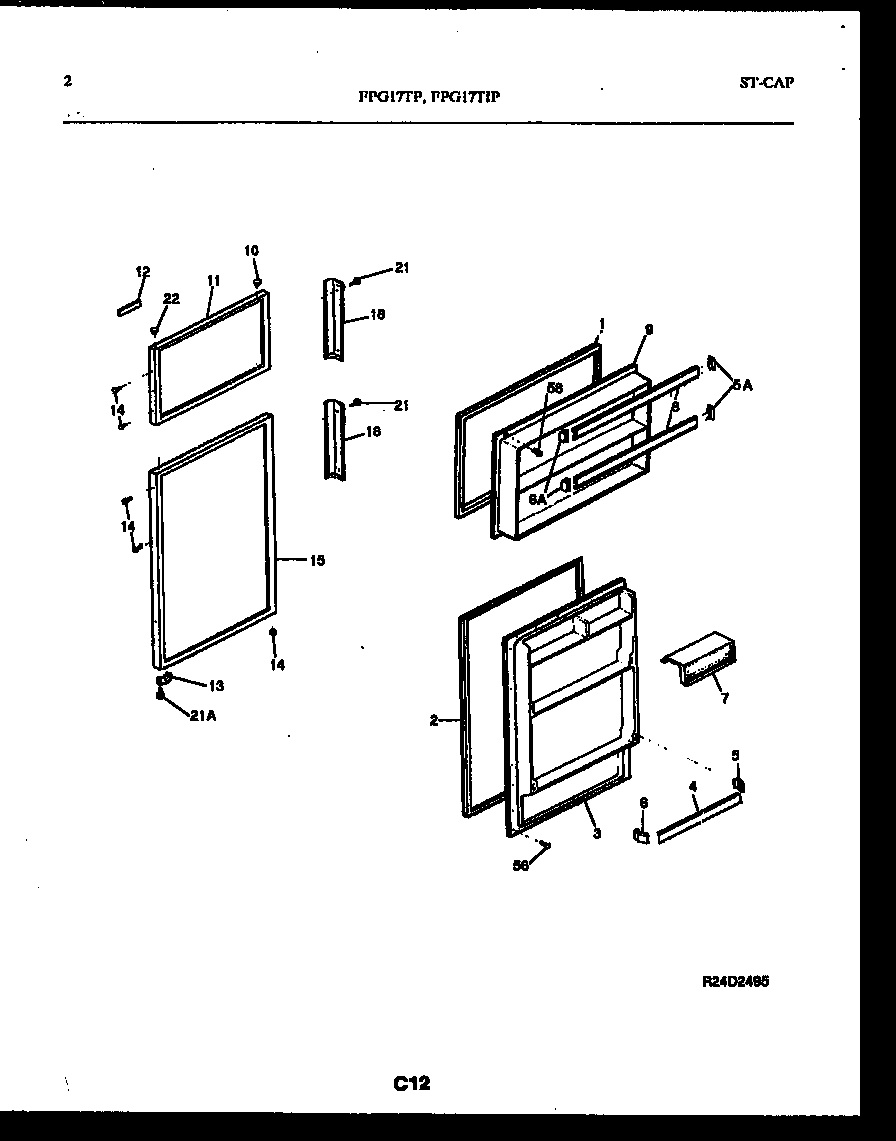

FPG17TIPL0 02 – DOOR PARTS

FPG17TIPL0 02 – DOOR PARTS

Written by

in

FPG17TIPL0 02 – DOOR PARTS

Products

PositionProduct
*63604INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 5303290025
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303325991 Frigidaire Refrigerator Door Bar Endcap
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303290017
7WCI 5303290018
8WCI 5303290019
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916108
12WCI 5303275752
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 3916113
18HANDLE-DOOR, ALMOND, FRZR
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
