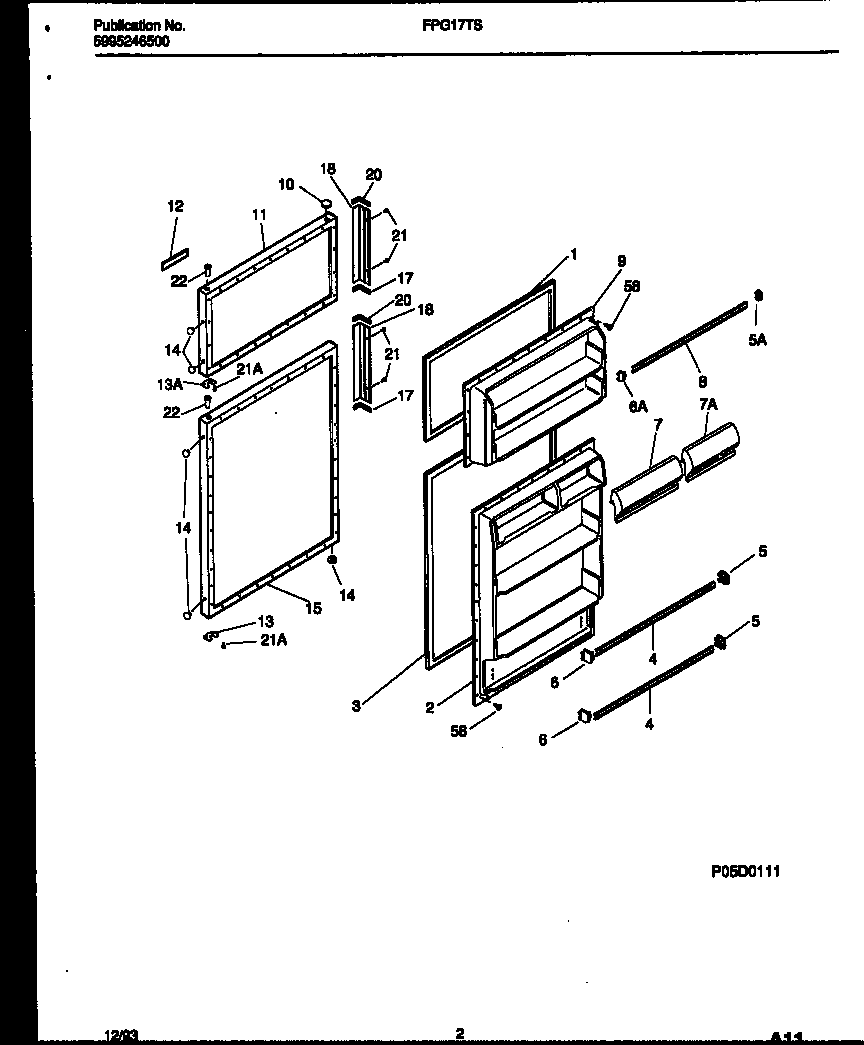

FPG17TSL1 02 – DOOR PARTS

FPG17TSL1 02 – DOOR PARTS

Written by

in

FPG17TSL1 02 – DOOR PARTS

Products

PositionProduct
*91860INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 5303290025
4215516220 Frigidaire Refrigerator Door Rack
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
55303325990 Frigidaire Refrigerator Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303290018
7AWCI 5303001380
7AWCI 5303290017
8WCI 5303290019
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11FREEZER DOOR-ALMD
12WCI 5303275752
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15REFR DOOR-ALMD
17END CAP-BOTTOM (2)
18WCI 215271911
20WCI 5308010239
21AWCI 5308011745
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
