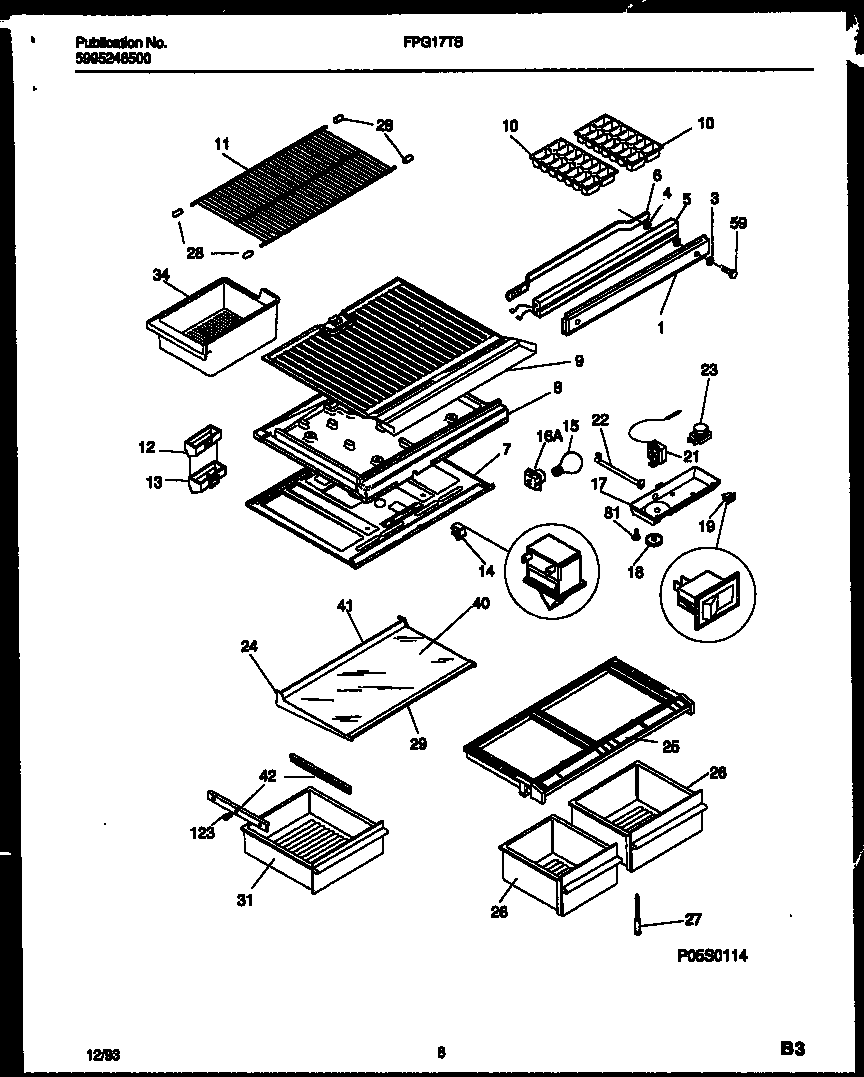

FPG17TSL1 05 – SHELVES AND SUPPORTS

FPG17TSL1 05 – SHELVES AND SUPPORTS

Written by

in

FPG17TSL1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*91871LOCK-SHELF TRIM, REAR
*91871CLIP-CANTILEVER SHLF
1WCI 5303916134
3WCI 215141311
3WCI 215141301
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7AWCI 5303001380
7TOP PANEL-REFR
8AWCI 3018900
8WCI 5303018899
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17CONTROL BOX
18KNOB, TEMP CONTROL
19WCI 5303018896
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215069027
24WCI 215069030
25WCI 5349001603
26WCI 5303299799
26WCI 5303299798
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29AWCI 5303209274
29WCI 5303290028
31WCI 5303290024
345303212918 Frigidaire Refrigerator Cont
40GLASS-SHELF, 23.26“ X 15.57“
41WCI 5303290027
42AHANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
59WCI 215115900
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
