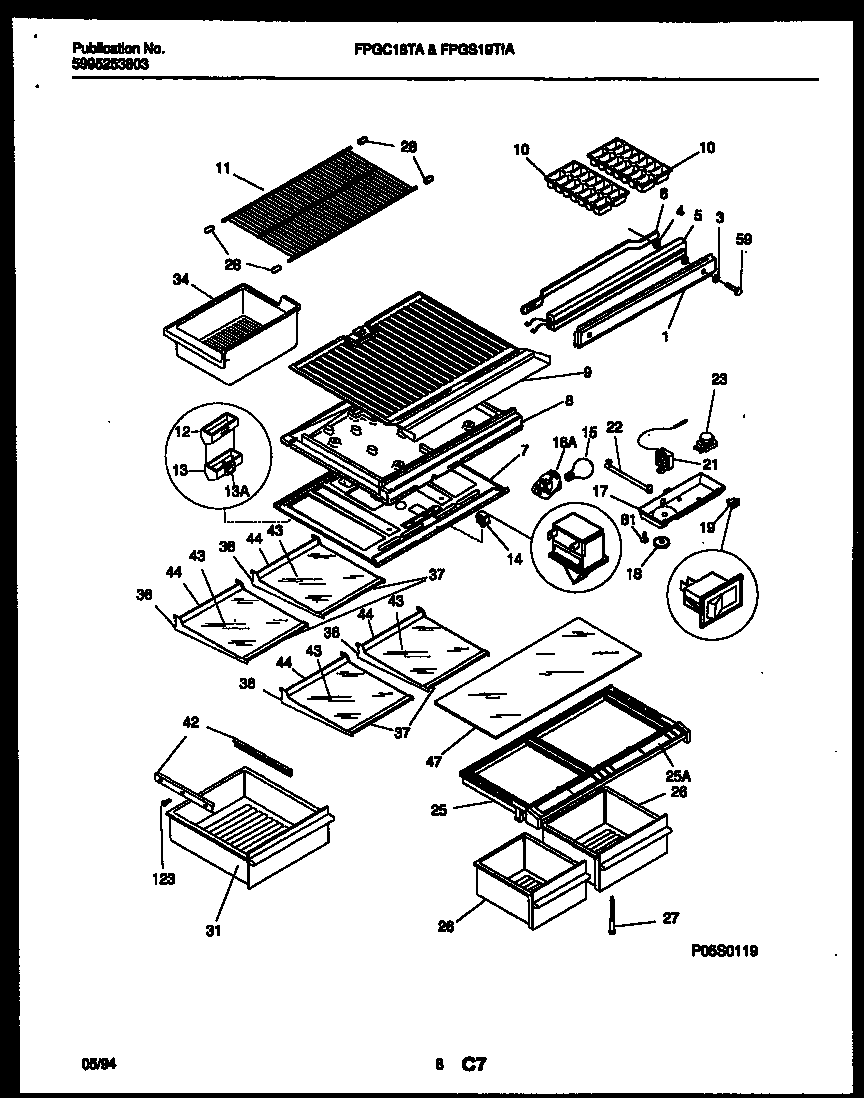

FPGC18TAL1 05 – SHELVES AND SUPPORTS

Products

Position	Product
*10125	LOCK-SHELF TRIM, REAR
1	WCI 5303200370
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7	TOP – REFRIGERATOR
7A	WCI 5303001380
8A	WCI 3018900
8	DIVIDER-FOAM
8B	3205266 Frigidaire Refrigerator Edge Protector
9	WCI 5303211427
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5303283031
12A	5303001449 Frigidaire Refrigerator Seal
12	DEFLECTRO, AIR, W/SEAL
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17A	NUT, ANCHOR (NI)
17	WCI 5303299980
18	WCI 5303299979
19	SWITCH-ENERGY SAVER, ROCKER
21	WCI 5303018894
21A	WCI 5303001260
22	WCI 3018891
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25A	WCI 5303280075
25	COVER – CRISPER
26	WCI 5303295929
26	WCI 5303295931
27	SUPPORT-CRISPER CVR, ADJUSTABLE
28	END CAP-SHELF,PROTECTOR
31	WCI 5303295941
34	5303212918 Frigidaire Refrigerator Cont
36	WCI 215069005
36A	WCI 215339900
37	WCI 5303293823
37A	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
42A	HANGER-MEAT PAN, LH (NON-ILLUSTRATED)
42	HANGER-MEAT PAN, RH
43	WCI 5303299899
44	TRIM-SHELF, 12.59“, REAR
