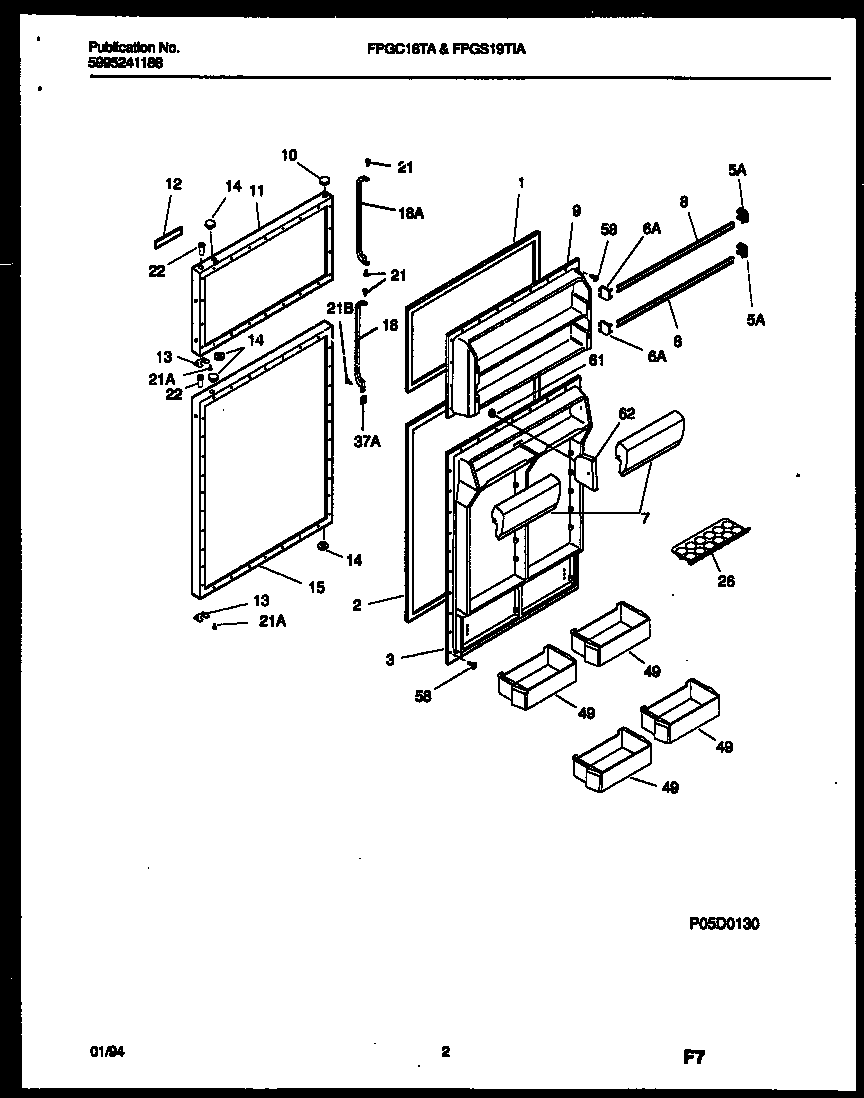

FPGC18TAW0 02 – DOOR PARTS

FPGC18TAW0 02 – DOOR PARTS

Written by

in

FPGC18TAW0 02 – DOOR PARTS

Products

PositionProduct
*91520INSULATION
1WCI 5303018791
2WCI 5303018792
3WCI 5303276800
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303295980
8WCI 215474020
9WCI 5303276748
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917286
12WCI 215008601
13DOOR STOP, REFR SECTION
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W/ INSULATION, & CROSS BRACE
18HANDLE-DOOR, 20.10“, WHITE
18AHANDLE-DOOR, 17.02“, WHITE
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37ATRIM-HANDLE, END CAP, WHITE, REFR DOOR
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
