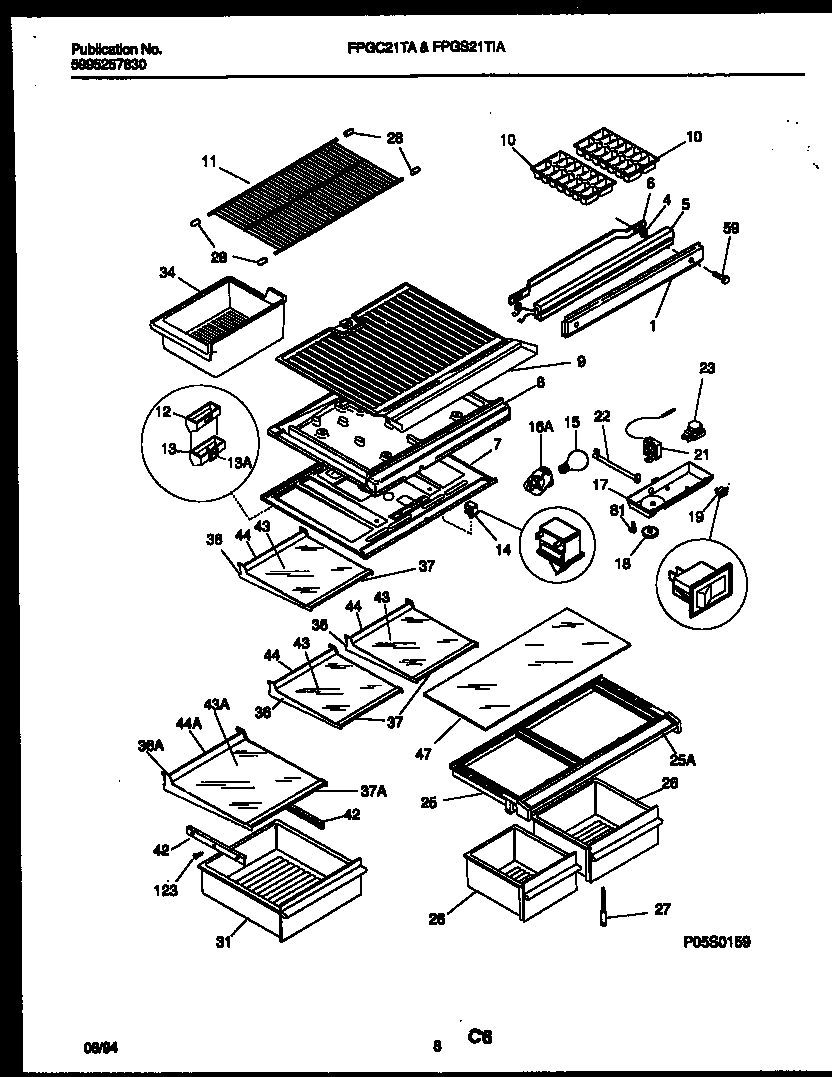

FPGC21TAL2 05 – SHELVES AND SUPPORTSadmin2025-04-26T08:38:44+00:00FPGC21TAL2 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 5303200370 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | WCI 218188100 |
| 5 | WCI 5303210351 |
| 6 | WCI 5308010008 |
| 7 | WCI 3019038 |
| 7A | WCI 5303001380 |
| 8 | WCI 5303019039 |
| 8A | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 8B | 3205266 Frigidaire Refrigerator Edge Protector |
| 9 | BOTTOM, FREEZER |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | WCI 5303288243 |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 13 | WCI 5303001448 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17A | NUT, ANCHOR (NI) |
| 17 | WCI 5303299980 |
| 18 | WCI 5303299979 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21 | WCI 5303018894 |
| 21A | WCI 5303001260 |
| 22 | WCI 3018891 |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 25A | WCI 5303280075 |
| 25 | WCI 5303206538 |
| 26 | WCI 5303295929 |
| 26 | WCI 5303295931 |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 31 | WCI 5303295941 |
| 34 | 5303212918 Frigidaire Refrigerator Cont |
| 36 | WCI 215919116 |
| 36A | FRAMER, HALF SHELF, CATILEVER |
| 36A | WCI 215339900 |
| 37A | TRIM-GLASS SHELF, 12.59``, FRONT |
| 37 | TRIM-GLASS SHELF, 13.07``, FRONT |
| 42 | HANGER-PAN/BASKET, RH |
| 42 | HANGER-PAN/BASKET, LH |
