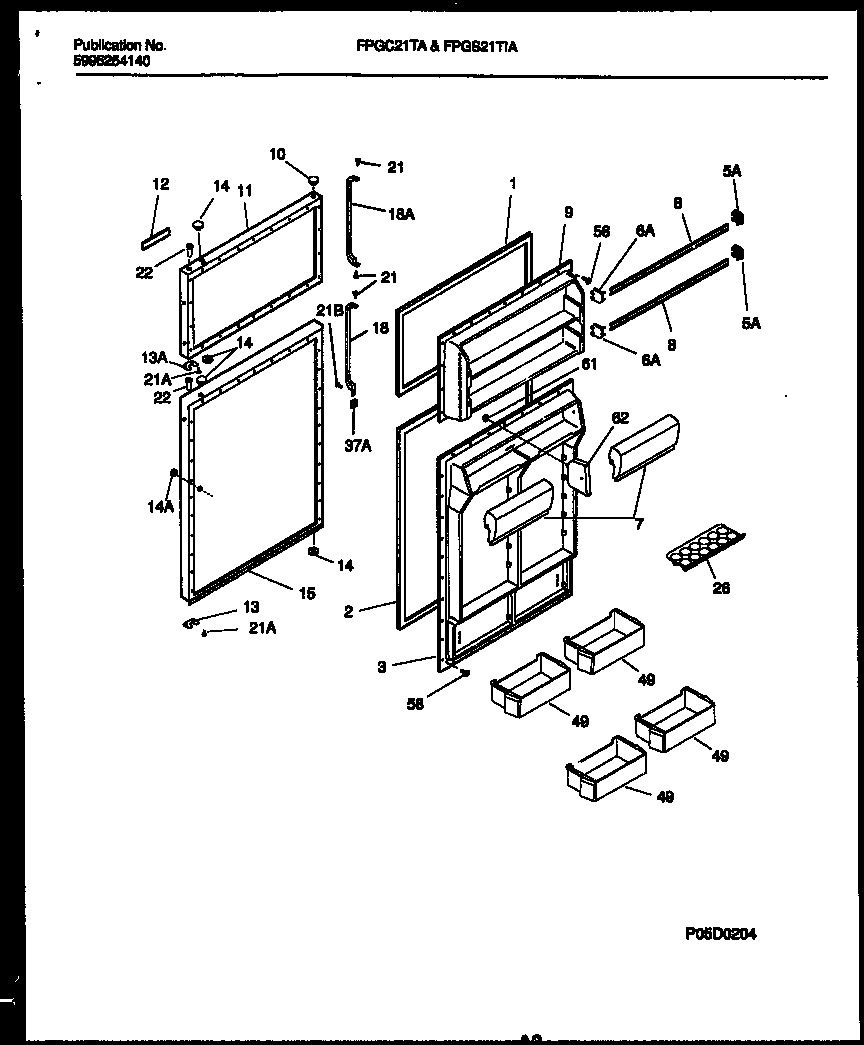

FPGC21TAW1 02 – DOOR PARTS

FPGC21TAW1 02 – DOOR PARTS

Written by

in

FPGC21TAW1 02 – DOOR PARTS

Products

PositionProduct
*10457INSULATION
1WCI 5318680314
2WCI 5303018792
3WCI 5303275674
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303295980
8WCI 215474021
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917386
12WCI 215008601
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14A240494001 Frigidaire Refrigerator Plug Button
15AWCI 215894100
15WCI 5303917384
18AWCI 215482114
18WCI 215482116
21B154518001 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
