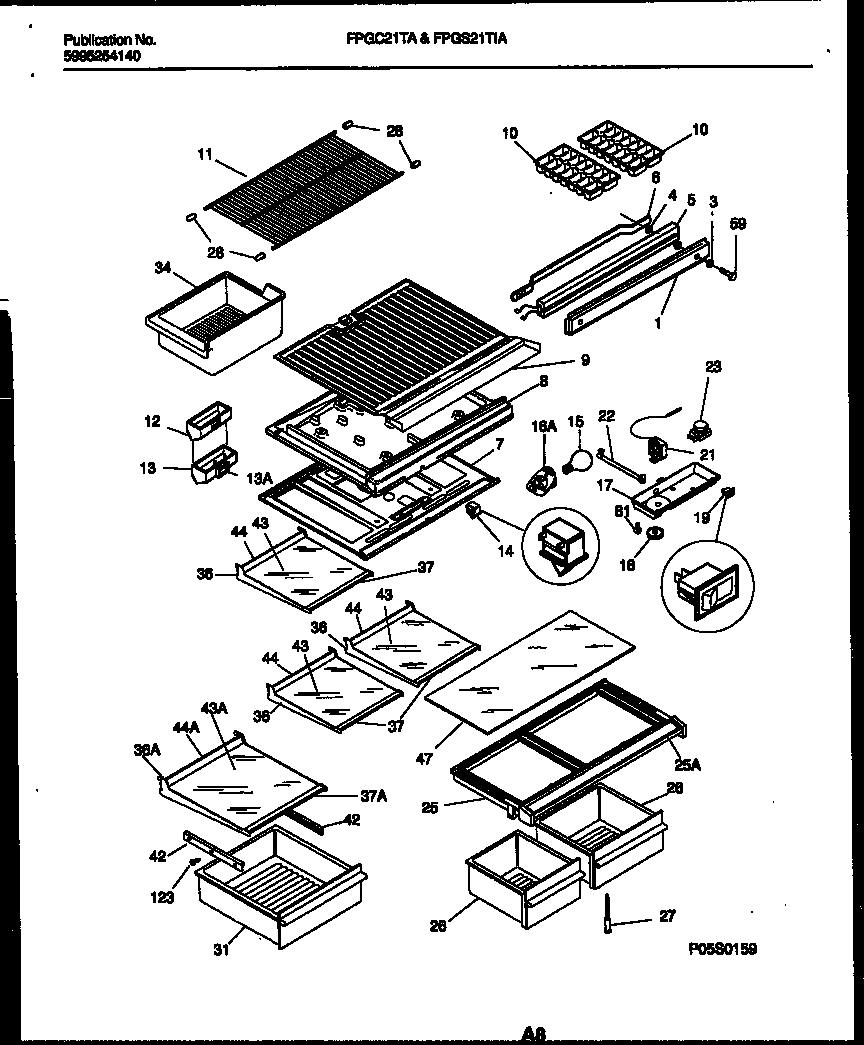

FPGC21TAW1 05 – SHELVES AND SUPPORTS

FPGC21TAW1 05 – SHELVES AND SUPPORTS

Written by

in

FPGC21TAW1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7AWCI 5303001380
8B3205266 Frigidaire Refrigerator Edge Protector
8WCI 5303019039
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25AWCI 5303280075
25WCI 5303206538
26WCI 5303295929
26WCI 5303295931
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303295941
345303212918 Frigidaire Refrigerator Cont
36AFRAME-PAN MTG SHELF, CANTILEVER, HALF WIDTH
36FRAME-HALF SHELF, CANTILEVER
36AWCI 215339900
37WCI 5303293824
37AWCI 5303293823
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
42HANGER-PAN/BASKET, LH
42HANGER-PAN/BASKET, RH
